3VA Molded Case Circuit Breakers up to 1600 A, IEC Parts
Compare 3VA Molded Case Circuit Breakers up to 1600 A, IEC
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of the overcurrent release | power loss [W] / maximum | power loss [W] / for rated value of the current / at AC / in hot operating state / per pole | Net Weight | adjustable response value setting current (Ii) / for I-tripping — minimum |
|---|---|---|---|---|---|

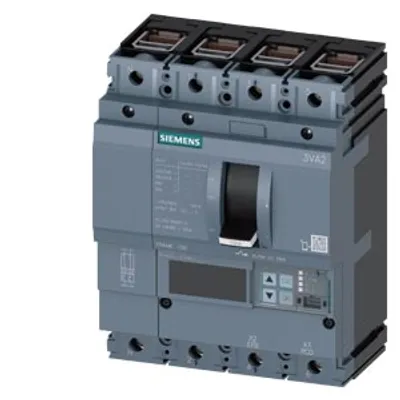

| 3VA2010-8KQ46-0AA0 | ETU860 | 7.7 W | 2.57 W | 3.2 kg | 150 A |

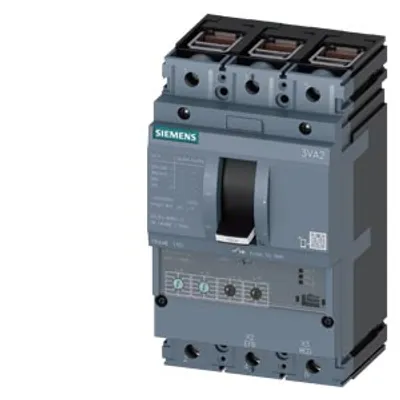

| 3VA2163-5HN36-0AA0 | ETU350 | 4 W | 1.33 W | 2.291 kg | 756 A |

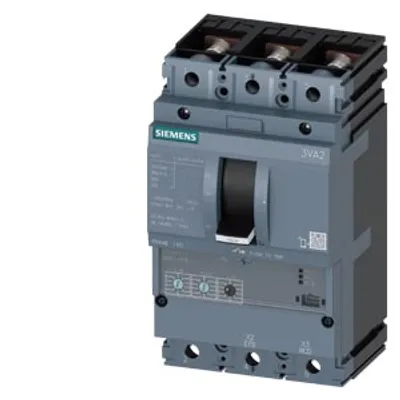

| 3VA2140-7HL32-0AA0 | ETU320 | 1.6 W | 0.53 W | 2.173 kg | 60 A |
| 3VA2140-7HK36-0AA0 | ETU340 | 1.6 W | 0.53 W | 2.5 kg | 600 A |

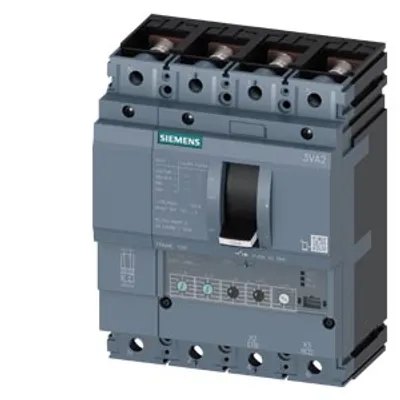

| 3VA2040-5HM42-0AA0 | ETU330 | 2.2 W | 0.73 W | 2.686 kg | 60 A |

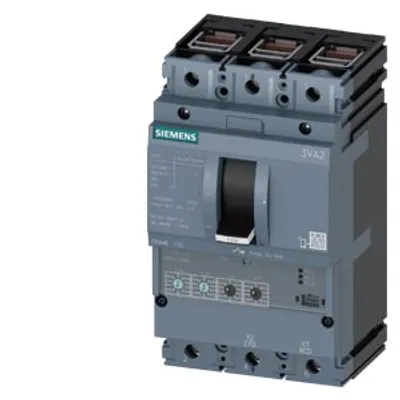

| 3VA2040-5HM36-0AA0 | ETU330 | 2.2 W | 0.73 W | 2.265 kg | 60 A |
| 3VA2025-8KQ46-0AA0 | ETU860 | 0.5 W | 0.17 W | 3.2 kg | 37 A |

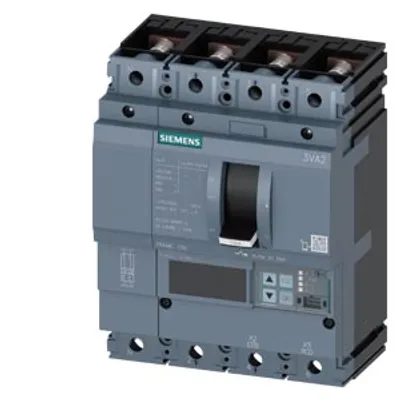

| 3VA2025-8KQ42-0AA0 | ETU860 | 0.5 W | 0.17 W | 3.2 kg | — |
| 3VA2025-8JQ42-0AA0 | ETU560 | 0.5 W | 0.17 W | 3.2 kg | 37 A |
| 3VA2110-5HN36-0AA0 | ETU350 | 10 W | 3.33 W | 2.211 kg | 1 200 A |
| 3VA2025-6KQ42-0AA0 | ETU860 | 0.84 W | 0.28 W | 2.724 kg | 37 A |
| 3VA2025-6KQ36-0AA0 | ETU860 | 0.84 W | 0.28 W | 2.5 kg | 37 A |
| 3VA2025-6KP46-0AA0 | ETU850 | 0.84 W | 0.28 W | 3.2 kg | 37 A |
| 3VA2025-6KP32-0AA0 | ETU850 | 0.84 W | 0.28 W | 2.206 kg | 37 A |
| 3VA2025-6JQ46-0AA0 | ETU560 | 0.84 W | 0.28 W | 2.896 kg | 37 A |
| 3VA2110-5MP36-0AA0 | ETU550M | 10 W | 3.33 W | 2.13 kg | 300 A |

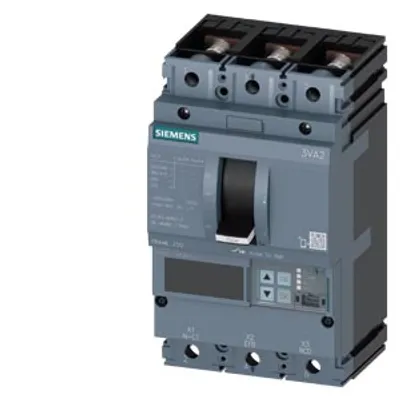

| 3VA2216-8KP42-0AA0 | ETU850 | 19.7 W | 6.57 W | 3.2 kg | 240 A |
| 3VA2216-8KP32-0AA0 | ETU850 | 19.7 W | 6.57 W | 2.5 kg | 240 A |
| 3VA2216-8JQ42-0AA0 | ETU560 | 19.7 W | 6.57 W | 3.2 kg | 240 A |
| 3VA2216-8JQ32-0AA0 | ETU560 | 19.7 W | 6.57 W | 2.5 kg | 240 A |
| 3VA2116-8KQ42-0AA0 | ETU860 | 19.7 W | 6.57 W | 3.2 kg | 240 A |
| 3VA2116-8KQ36-0AA0 | ETU860 | 19.7 W | 6.57 W | 2.5 kg | 240 A |
| 3VA2116-8KQ32-0AA0 | ETU860 | 19.7 W | 6.57 W | 2.5 kg | 240 A |
Common to all listed parts
| product designation | Molded case circuit breaker |
| insulation voltage / rated value | 800 V |
| operating voltage / at AC / rated value | 690 V |
| mechanical service life (operating cycles) / typical | 25 000 |
| product feature / for L-tripping / can be switched on/off | No |
| height [in] | 7.13 in |
| height | 181 mm |
| depth [in] | 3.39 in |
