Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

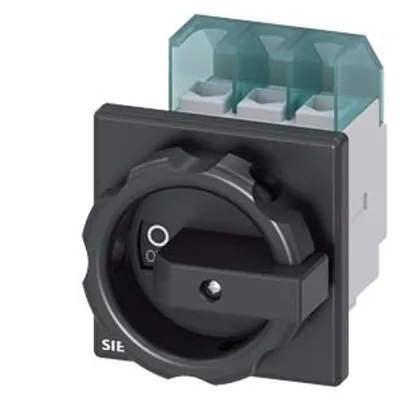

| MPN | power loss [W] for rated value of the current at AC in hot operating state per pole | active power [hp] at AC at 480 V according to UL 508/UL 60947-4-1 rated value | active power [hp] at AC at 600 V according to UL 508/UL 60947-4-1 rated value | width | Net Weight |
|---|---|---|---|---|---|
| 3LD2103-0TK51 | 0.6 W | 10 | 15 | 67 mm | 201.5 g |
| 3LD2766-1GP53 | 2.77 W | 60 | 75 | 212 mm | 1.829 kg |

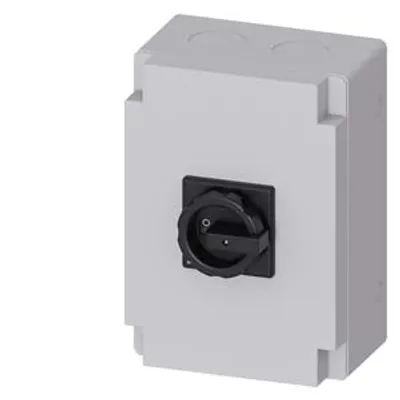

| 3LD2766-1GP51 | 2.77 W | 60 | 75 | 212 mm | 1.823 kg |
| 3LD2566-4VD53 | 1.66 W | 40 | 50 | 212 mm | 2.096 kg |
| 3LD2566-4VD51 | 1.66 W | 40 | 50 | 212 mm | 2.112 kg |
| 3LD2566-3VB53 | 1.66 W | 40 | 50 | 212 mm | 2.128 kg |
| 3LD2566-3VB51 | 1.66 W | 40 | 50 | 212 mm | 2.047 kg |

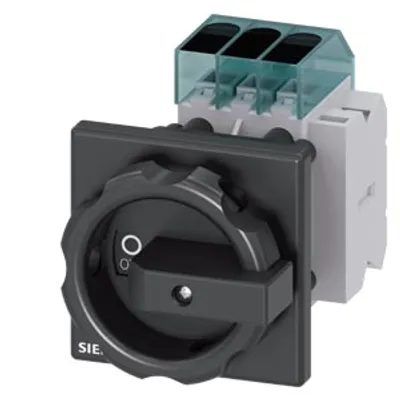

| 3LD3454-1TK51 | 1.54 W | 25 | 30 | 47 mm | 255 g |

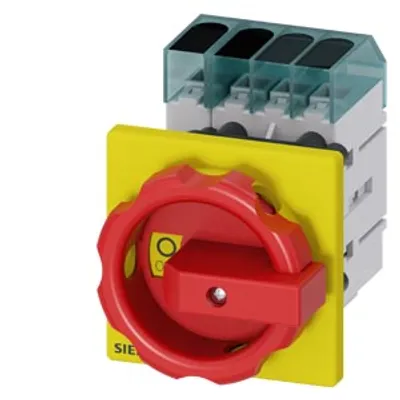

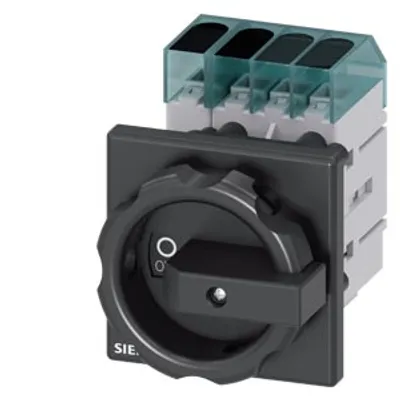

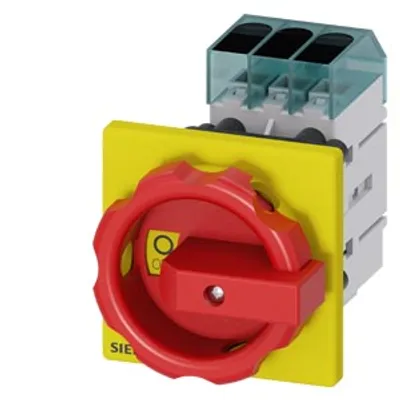

| 3LD3454-0TL53 | 1.54 W | 25 | 30 | 49 mm | 274 g |
| 3LD3454-0TL51 | 1.54 W | 25 | 30 | 49 mm | 272 g |
| 3LD3454-0TK53 | 1.54 W | 25 | 30 | 36 mm | 238 g |
| 3LD3440-0TL13 | 1.54 W | 25 | 30 | 49 mm | 367 g |
| 3LD3440-0TL11 | 1.54 W | 25 | 30 | 49 mm | 366 g |
| 3LD3440-0TK13 | 1.54 W | 25 | 30 | 36 mm | 329 g |
| 3LD3250-0TK13 | 1.32 W | 20 | 20 | 36 mm | 200 g |
| 3LD3250-0TK11 | 1.32 W | 20 | 20 | 36 mm | 201 g |
| 3LD3248-1TL53 | 1.32 W | 20 | 20 | 60 mm | 404 g |
| 3LD3248-1TL51 | 1.32 W | 20 | 20 | 60 mm | 403 g |

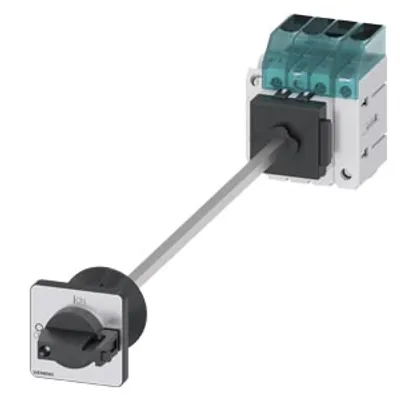

| 3LD3240-1TL11 | 1.32 W | 20 | 20 | 60 mm | 386 g |

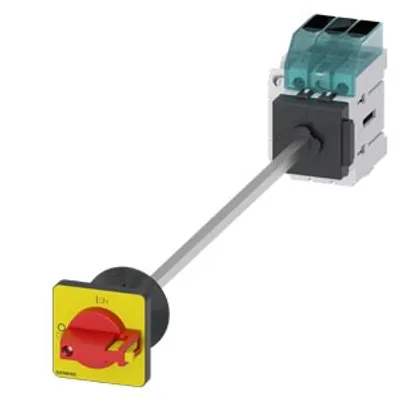

| 3LD3240-1TK13 | 1.32 W | 20 | 20 | 47 mm | 346 g |

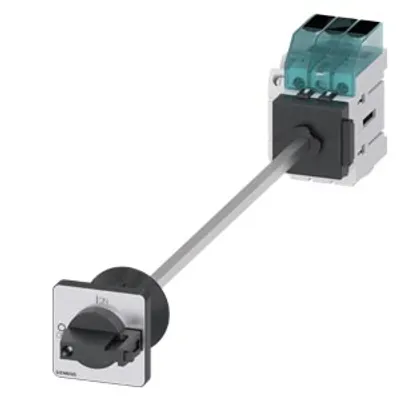

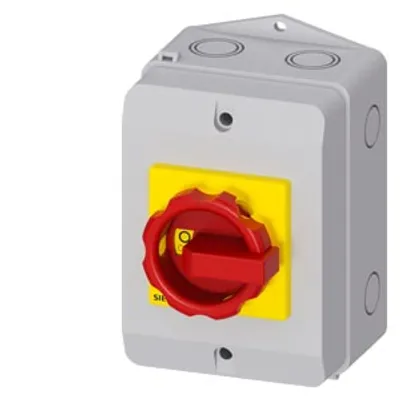

| 3LD3240-1TK11 | 1.32 W | 20 | 20 | 47 mm | 349 g |
| 3LD2064-0TB53 | 0.33 W | 7.5 | 10 | 100 mm | 409.5 g |

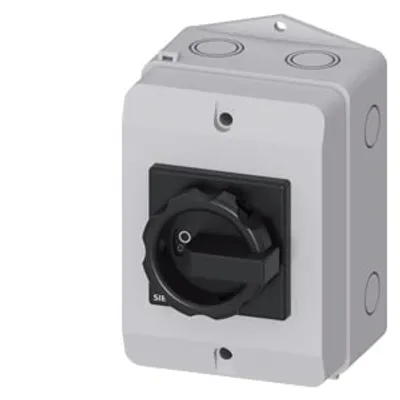

| 3LD2064-0TB51 | 0.33 W | 7.5 | 10 | 100 mm | 409.5 g |

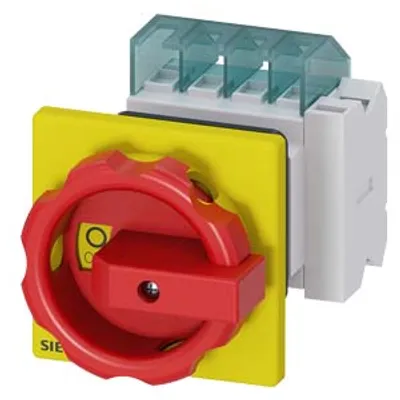

| 3LD2054-2EP53 | 0.33 W | 7.5 | 10 | 67 mm | 241 g |
Common to all listed parts
| product designation | Switch disconnector |
| display version for switch position indicator manual operation | 1 ON - 0 OFF |
| type of the driving mechanism motor drive | No |
| mechanical service life (operating cycles) typical | 100 000 |
| electrical endurance (operating cycles) — at AC-23 A at 690 V | 6 000 |
| operating frequency maximum | 50 1/h |
| degree of pollution | 3 |
| insulation voltage rated value | 690 V |
