Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | number of connectable NO contacts for auxiliary contacts attachable maximum | height | width | depth | Net Weight |
|---|---|---|---|---|---|

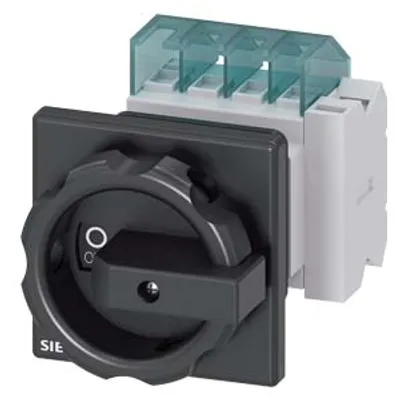

| 3LD2054-2EP51 | 0 | 84 mm | 67 mm | 117 mm | 246 g |

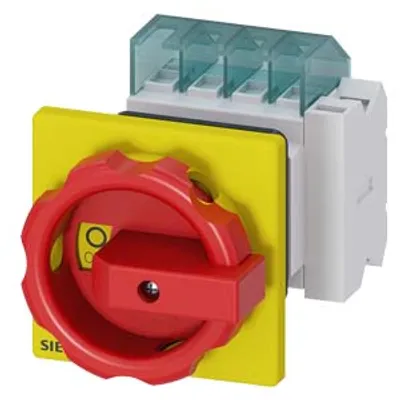

| 3LD2054-1TP53 | 1 | 84 mm | 67 mm | 117 mm | 233 g |

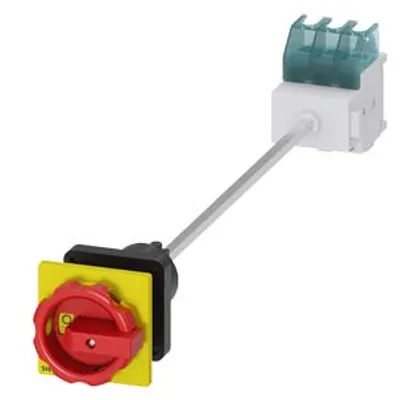

| 3LD2144-0TK53 | 5 | 83 mm | 67 mm | 452 mm | 422 g |

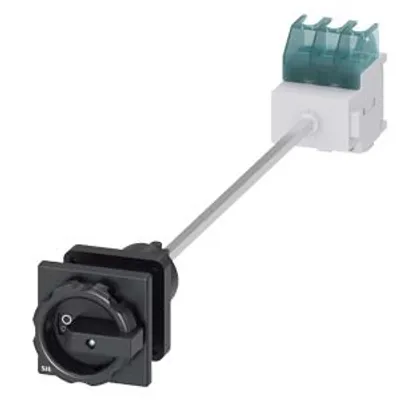

| 3LD2144-0TK51 | 5 | 83 mm | 67 mm | 452 mm | 421 g |

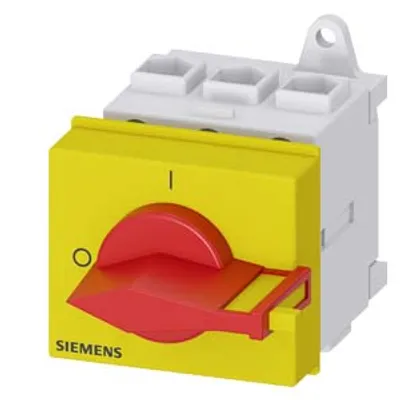

| 3LD2130-0TK13 | 4 | 55 mm | 53 mm | 91 mm | 162 g |

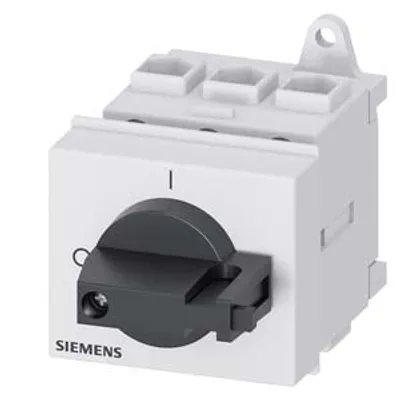

| 3LD2130-0TK11-0AF5 | 4 | 72 mm | 46 mm | 50 mm | 160 g |
| 3LD2130-0TK11 | 4 | 55 mm | 53 mm | 91 mm | 160 g |

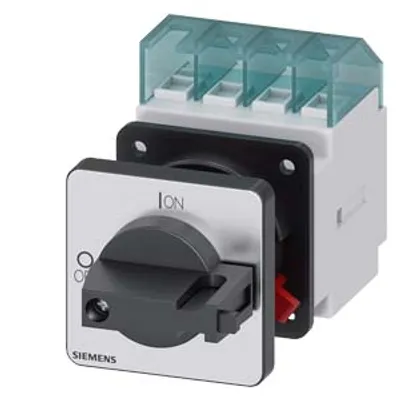

| 3LD2050-0TK11 | 2 | 66 mm | 49 mm | 114 mm | 190 g |
| 3LD2044-1TL53 | 3 | 84 mm | 67 mm | 452 mm | 439 g |

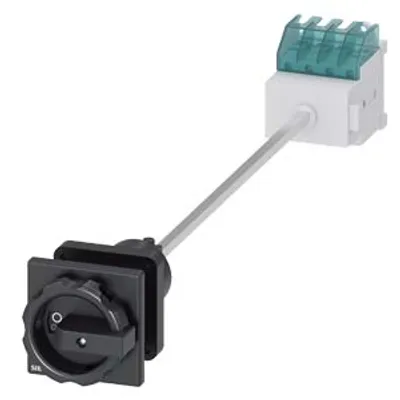

| 3LD2044-1TL51 | 3 | 84 mm | 67 mm | 452 mm | 441 g |

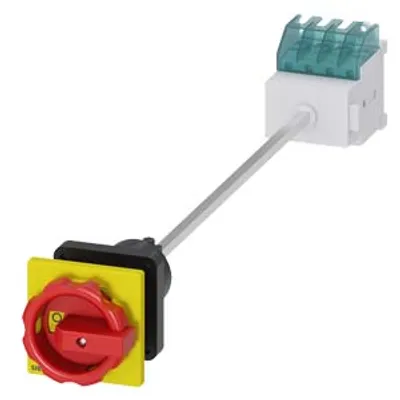

| 3LD2044-0TK53 | 5 | 84 mm | 67 mm | 452 mm | 428 g |
| 3LD2044-0TK51 | 5 | 84 mm | 67 mm | 452 mm | 428 g |

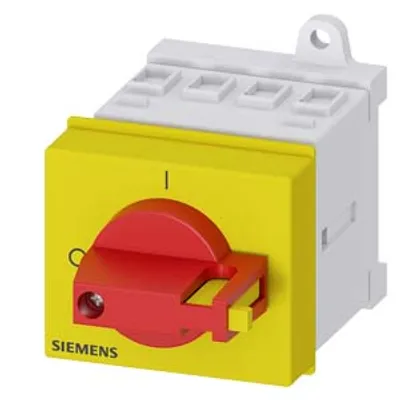

| 3LD2030-1TL13 | 2 | 45 mm | 53 mm | 91 mm | 185 g |

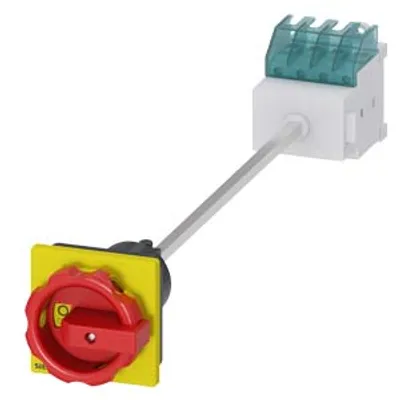

| 3LD2015-0TK53 | 5 | 83 mm | 67 mm | 394 mm | 384 g |

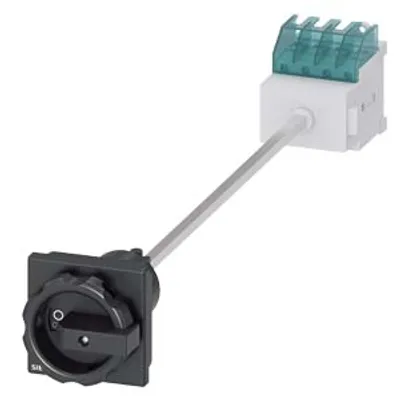

| 3LD2013-1TL51 | 3 | 84 mm | 67 mm | 430 mm | 419 g |

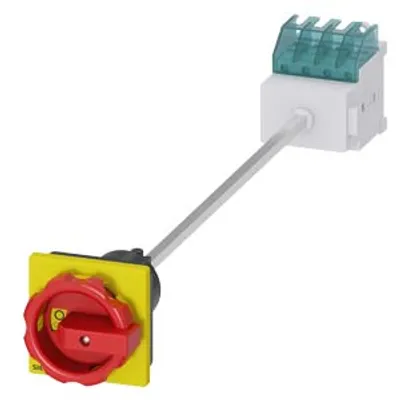

| 3LD2013-0TK53 | 5 | 84 mm | 67 mm | 430 mm | 419 g |

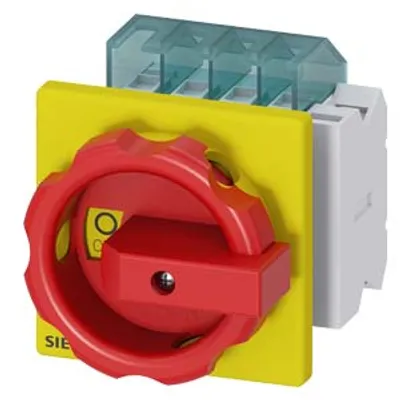

| 3LD2003-2EP53 | 1 | 84 mm | 67 mm | 93 mm | 237 g |

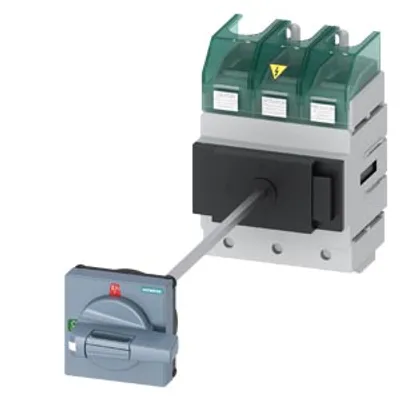

| 3LD5610-0TK11 | 5 | 178 mm | 113 mm | 158 mm | 2.202 kg |

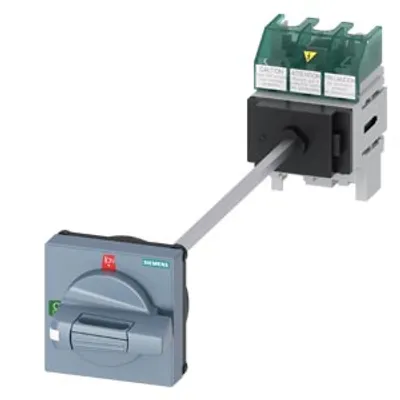

| 3LD5010-0TK11 | 5 | 96 mm | 60 mm | 77 mm | 600 g |

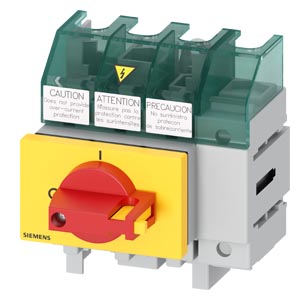

| 3LD5000-0TL13 | 2 | 96 mm | 80 mm | 92 mm | 413 g |

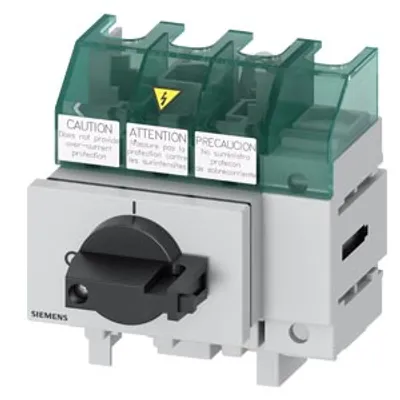

| 3LD5000-0TL11 | 2 | 96 mm | 80 mm | 92 mm | 413 g |

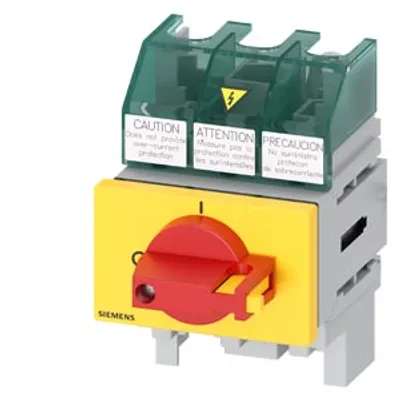

| 3LD5000-0TK13 | 4 | 96 mm | 60 mm | 92 mm | 340 g |

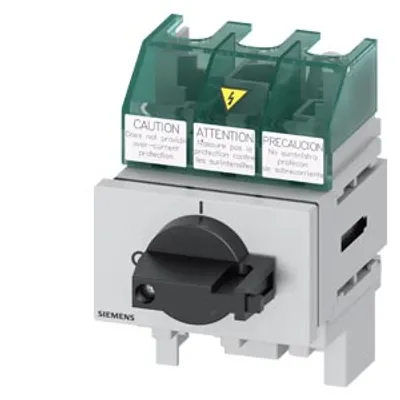

| 3LD5000-0TK11 | 4 | 96 mm | 60 mm | 92 mm | 318.5 g |

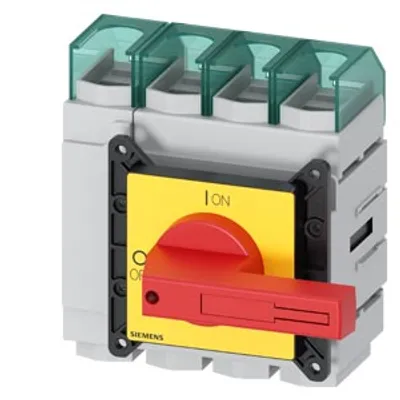

| 3LD5820-0TL13 | 2 | 178 mm | 151 mm | 93 mm | 2.641 kg |
Common to all listed parts
| product designation | Switch disconnector |
| display version for switch position indicator manual operation | 1 ON - 0 OFF |
| type of the driving mechanism motor drive | No |
| mechanical service life (operating cycles) typical | 100 000 |
| electrical endurance (operating cycles) — at AC-23 A at 690 V | 6 000 |
| operating frequency maximum | 50 1/h |
| degree of pollution | 3 |
| insulation voltage rated value | 690 V |
