Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | power loss [W] for rated value of the current at AC in hot operating state per pole | height | width | depth | Net Weight |
|---|---|---|---|---|---|

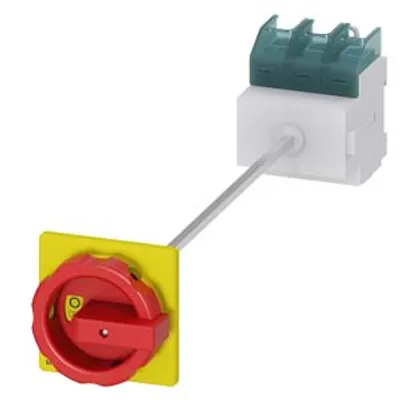

| 3LD2814-0TK53 | 4.33 W | 106 mm | 90 mm | 470.5 mm | 761 g |
| 3LD2814-0TK51 | 4.33 W | 106 mm | 90 mm | 470.5 mm | 751 g |

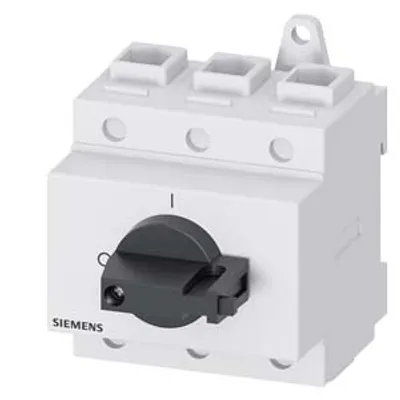

| 3LD2730-0TK11 | 2.77 W | 83 mm | 71 mm | 97 mm | 379 g |
| 3LD2714-0TK53 | 2.77 W | 106 mm | 90 mm | 470.5 mm | 725 g |

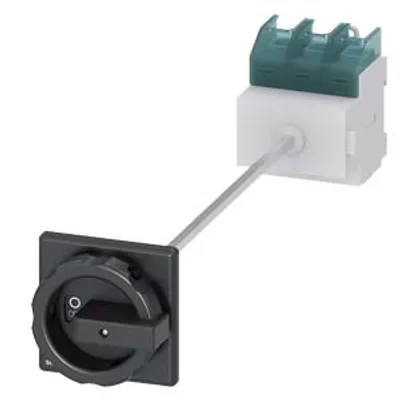

| 3LD2714-0TK51 | 2.77 W | 106 mm | 90 mm | 470.5 mm | 750 g |

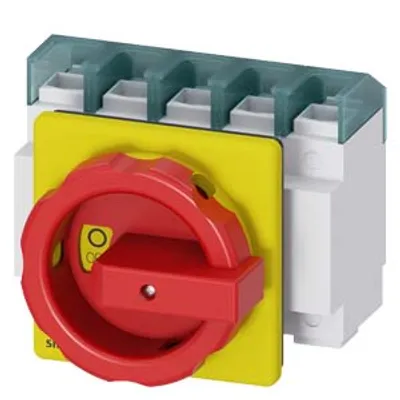

| 3LD2704-2TC53 | 2.77 W | 107 mm | 90 mm | 112.5 mm | 677 g |

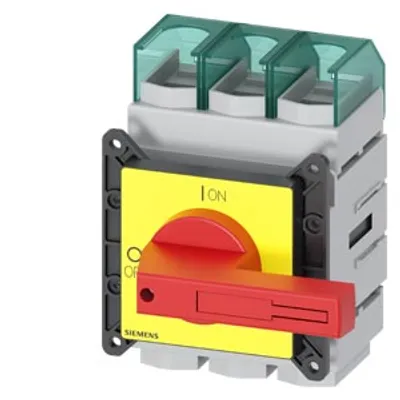

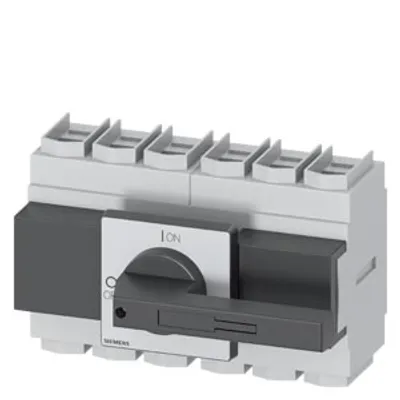

| 3LD2405-3VK11 | 13.33 W | 169 mm | 112 mm | 94 mm | 3.925 kg |
| 3LD2405-1TL13 | 13.33 W | 169 mm | 112 mm | 94 mm | 2.605 kg |

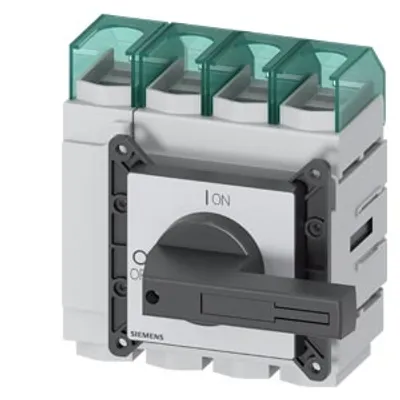

| 3LD2405-1TL11 | 13.33 W | 169 mm | 112 mm | 94 mm | 2.611 kg |
| 3LD2405-0TK13 | 13.33 W | 169 mm | 112 mm | 94 mm | 2.107 kg |
| 3LD2305-0TK13 | 5.46 W | 169 mm | 112 mm | 94 mm | 2.151 kg |

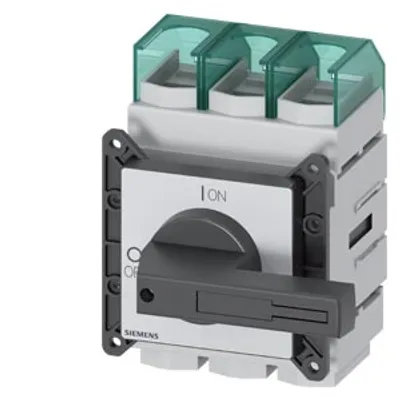

| 3LD2305-0TK11 | 5.46 W | 169 mm | 112 mm | 94 mm | 2.204 kg |

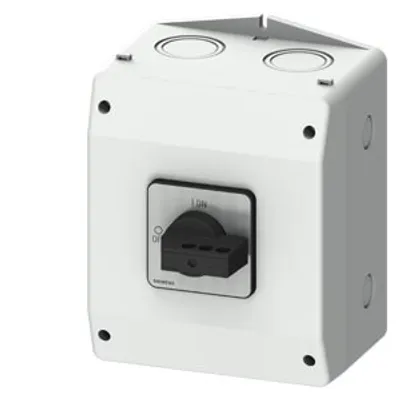

| 3LD2285-5VD21 | 0.98 W | 199 mm | 146 mm | 149 mm | 1.151 kg |

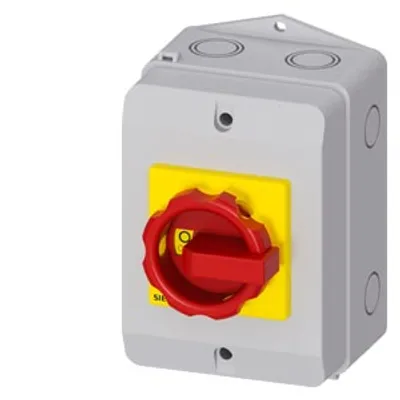

| 3LD2264-1TC53 | 0.98 W | 152 mm | 100 mm | 117 mm | 426.5 g |

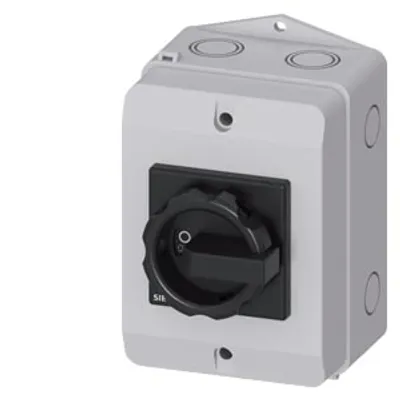

| 3LD2264-1TC51 | 0.98 W | 152 mm | 100 mm | 117 mm | 426 g |
| 3LD2264-1GP53 | 0.98 W | 152 mm | 100 mm | 117 mm | 416 g |

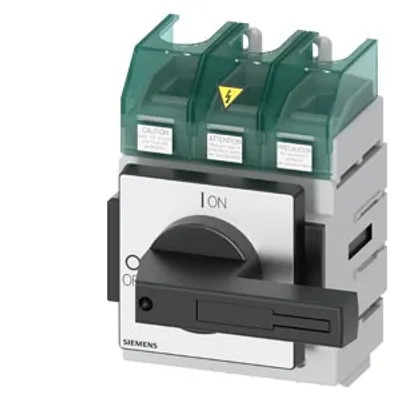

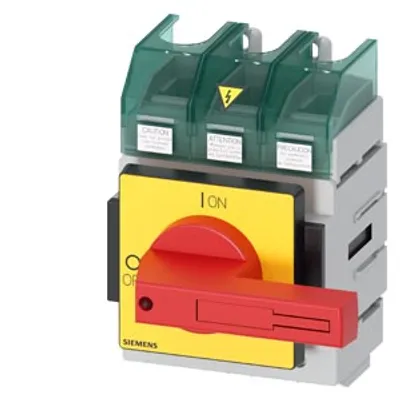

| 3LD5400-0TK13 | 2.13 W | 178 mm | 113 mm | 158 mm | 2.07 kg |
| 3LD5400-0TK11 | 2.13 W | 178 mm | 113 mm | 158 mm | 2.02 kg |

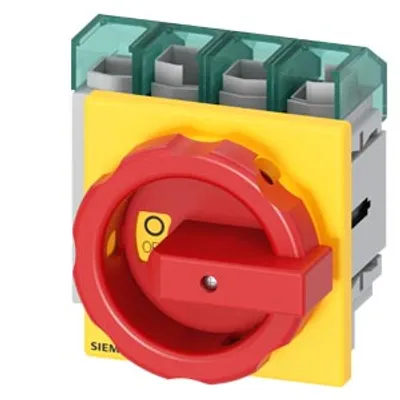

| 3LD5220-0TL13 | 0.7 W | 104 mm | 103 mm | 108 mm | 607 g |
| 3LD5220-0TL11 | 0.7 W | 104 mm | 103 mm | 108 mm | 604 g |
| 3LD5020-0TL13 | 0.55 W | 96 mm | 80 mm | 59 mm | 505 g |
| 3LD5020-0TL11 | 0.55 W | 96 mm | 80 mm | 59 mm | 510 g |
| 3LD5020-0TK13 | 0.55 W | 96 mm | 60 mm | 59 mm | 425 g |
| 3LD5010-0TL11 | 0.55 W | 96 mm | 80 mm | 77 mm | 687 g |
Common to all listed parts
| product designation | Switch disconnector |
| display version for switch position indicator manual operation | 1 ON - 0 OFF |
| type of the driving mechanism motor drive | No |
| mechanical service life (operating cycles) typical | 100 000 |
| electrical endurance (operating cycles) — at AC-23 A at 690 V | 6 000 |
| operating frequency maximum | 50 1/h |
| degree of pollution | 3 |
| insulation voltage rated value | 690 V |
