Basic Devices Parts
Compare Basic Devices
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | design of handle | power loss [W] for rated value of the current at AC in hot operating state per pole | width | depth | Net Weight |
|---|---|---|---|---|---|

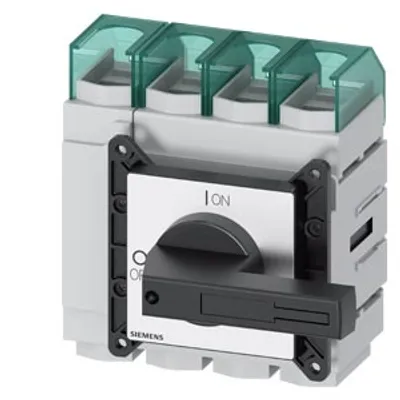

| 3LD5820-0TL11 | knob-operated mechanism, black | 5.46 W | 151 mm | 93 mm | 2.6 kg |

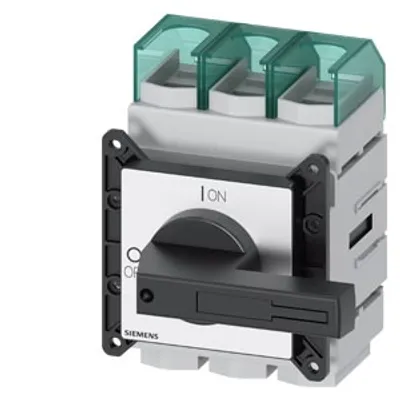

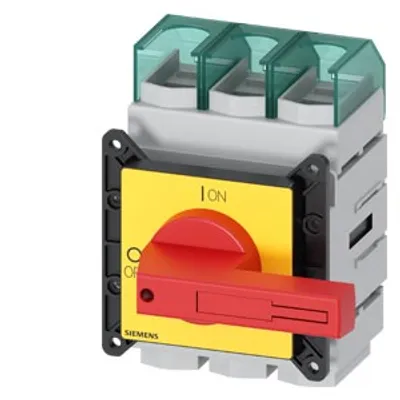

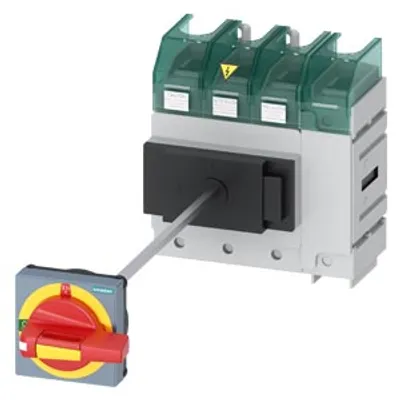

| 3LD5820-0TK13 | knob-operated mechanism, red/yellow | 5.46 W | 113 mm | 93 mm | 2.115 kg |
| 3LD5820-0TK11 | knob-operated mechanism, black | 5.46 W | 113 mm | 93 mm | 2.103 kg |
| 3LD5810-0TL13 | rotary operating mechanism, red/yellow | 5.46 W | 151 mm | 158 mm | 2.715 kg |

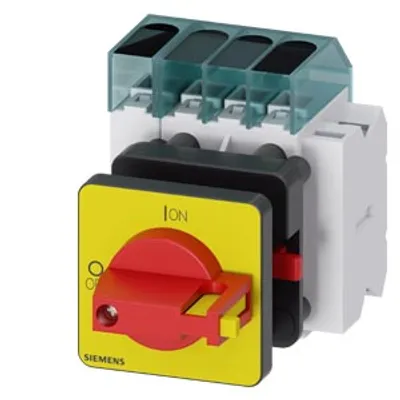

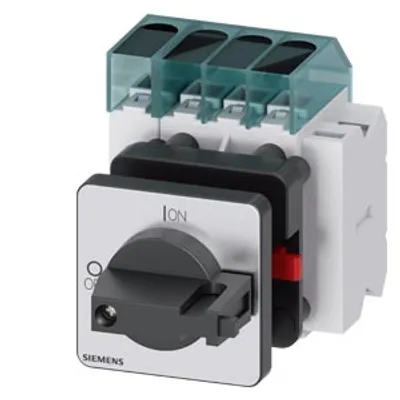

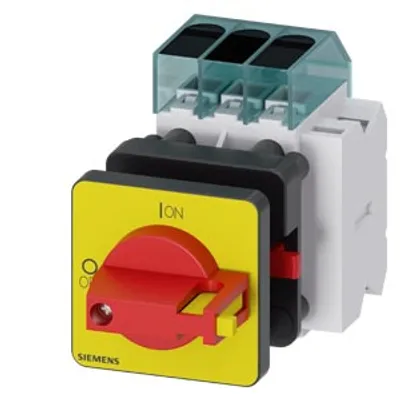

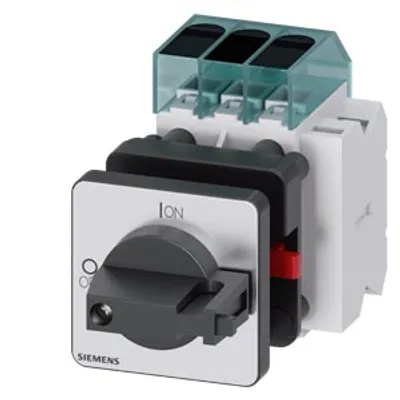

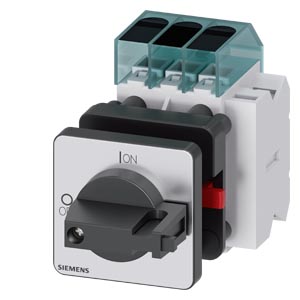

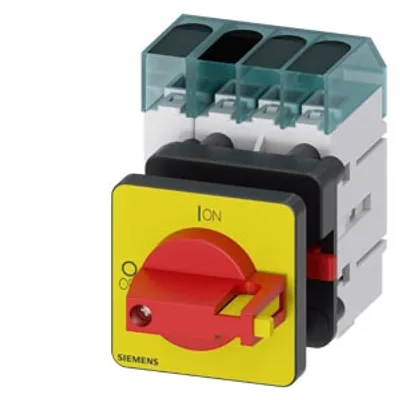

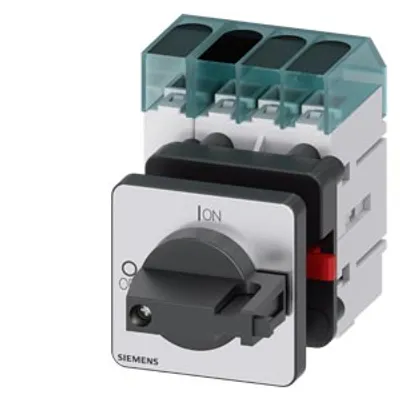

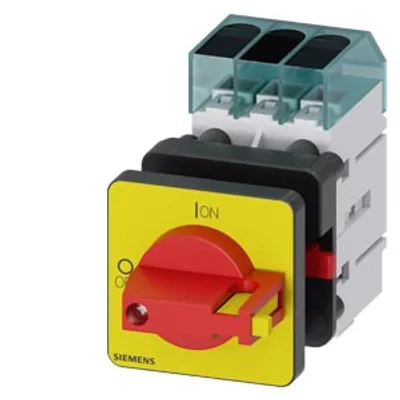

| 3LD3350-1TL13 | knob-operated mechanism, red/yellow | 0.62 W | 60 mm | 114 mm | 262 g |
| 3LD3350-1TL11 | knob-operated mechanism, black | 0.62 W | 60 mm | 114 mm | 260 g |
| 3LD3350-1TK13 | knob-operated mechanism, red/yellow | 0.62 W | 47 mm | 114 mm | 218 g |
| 3LD3350-1TK11 | knob-operated mechanism, black | 0.62 W | 47 mm | 114 mm | 219 g |
| 3LD3350-0TL13 | knob-operated mechanism, red/yellow | 0.62 W | 49 mm | 114 mm | 244 g |
| 3LD3350-0TL11 | knob-operated mechanism, black | 0.62 W | 49 mm | 114 mm | 240 g |
| 3LD3350-0TK13 | knob-operated mechanism, red/yellow | 0.62 W | 36 mm | 114 mm | 207 g |

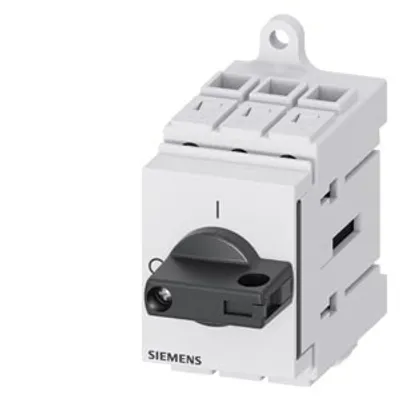

| 3LD3030-0TK11 | knob-operated mechanism, black | 0.33 W | 36 mm | 77 mm | 157 g |

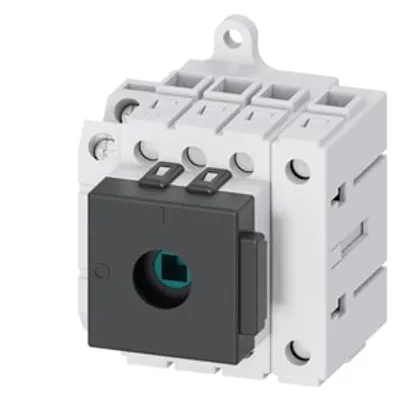

| 3LD3010-1TL05 | without | 0.33 W | 60 mm | 64 mm | 202 g |

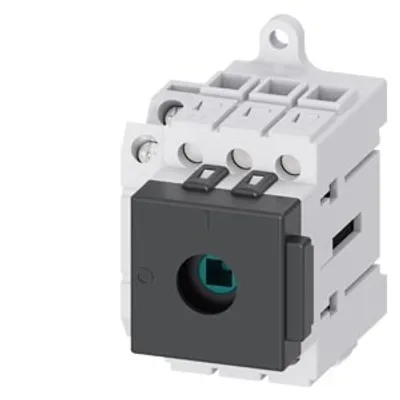

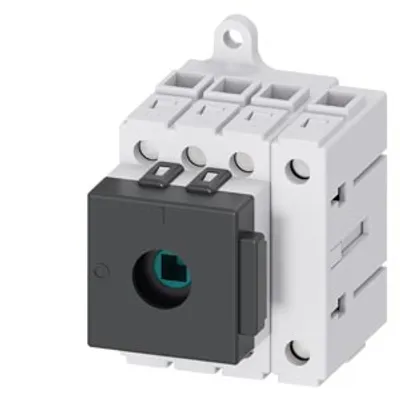

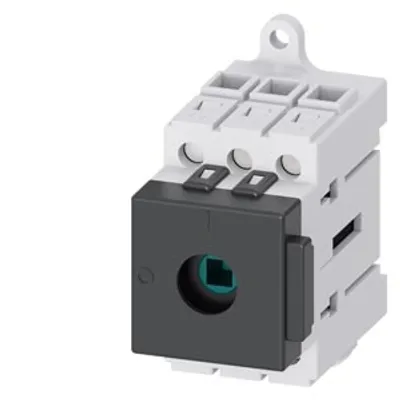

| 3LD3010-1TK05 | without | 0.33 W | 47 mm | 64 mm | 168 g |
| 3LD3010-0TL05 | without | 0.33 W | 49 mm | 64 mm | 184 g |
| 3LD3010-0TK05 | without | 0.33 W | 36 mm | 64 mm | 148 g |

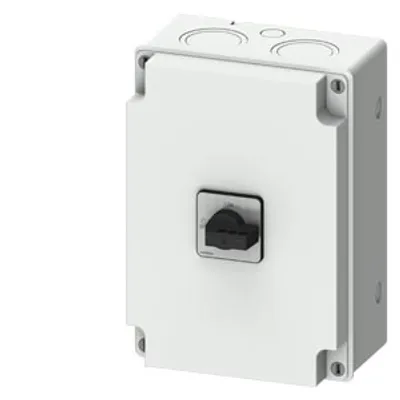

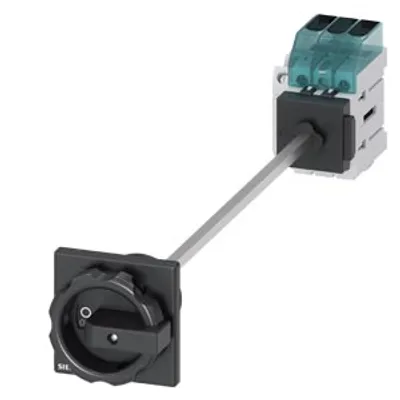

| 3LD2886-2GP21 | knob-operated mechanism, black | 4.33 W | 212 mm | 181 mm | 2.353 kg |
| 3LD3148-1TK51 | rotary operating mechanism, black | 0.81 W | 47 mm | 380 mm | 366 g |

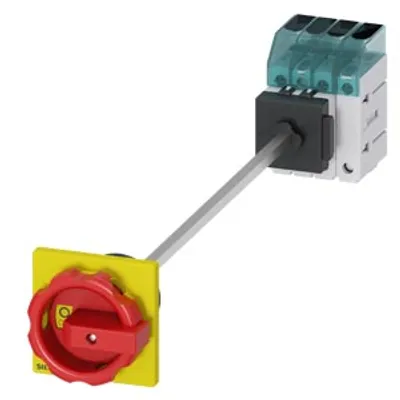

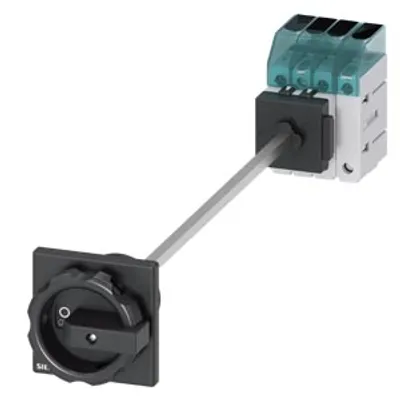

| 3LD3148-0TL53 | rotary operating mechanism, red/yellow | 0.81 W | 49 mm | 380 mm | 386 g |
| 3LD3148-0TL51 | rotary operating mechanism, black | 0.81 W | 49 mm | 380 mm | 384 g |

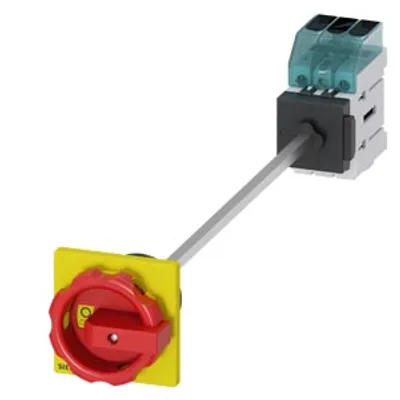

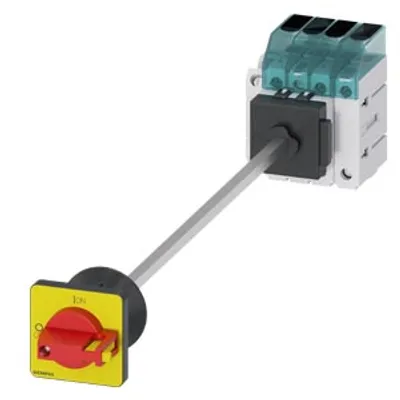

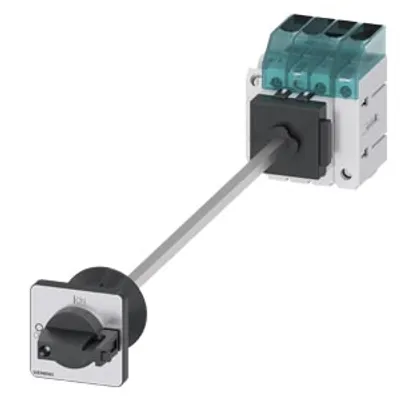

| 3LD3148-0TK53 | rotary operating mechanism, red/yellow | 0.81 W | 36 mm | 380 mm | 349 g |
| 3LD3148-0TK51 | rotary operating mechanism, black | 0.81 W | 36 mm | 380 mm | 348 g |
| 3LD3140-1TL13 | knob-operated mechanism, red/yellow | 0.81 W | 60 mm | 380 mm | 384 g |
| 3LD3140-1TL11 | knob-operated mechanism, black | 0.81 W | 60 mm | 380 mm | 383 g |
Common to all listed parts
| product designation | Switch disconnector |
| display version for switch position indicator manual operation | 1 ON - 0 OFF |
| mechanical service life (operating cycles) typical | 100 000 |
| electrical endurance (operating cycles) — at AC-23 A at 690 V | 6 000 |
| operating frequency maximum | 50 1/h |
| degree of pollution | 3 |
| insulation voltage rated value | 690 V |
| surge voltage resistance rated value | 6 kV |
