KL3xxx | Analog input Parts
Beckhoff
KL3152Bus Terminal, 2-channel analog input, current, 4…20 mA, 16 bit, differential, high-precision
Beckhoff
KL3142Bus Terminal, 2-channel analog input, current, 0…20 mA, 16 bit, differential, high-precision
Beckhoff
KL3182Bus Terminal, 2-channel analog input, voltage, ±2 V, 16 bit, differential, high-precision
Beckhoff
KL3172Bus Terminal, 2-channel analog input, voltage, 0…2 V, 16 bit, differential, high-precision
Beckhoff
KL3162Bus Terminal, 2-channel analog input, voltage, 0…10 V, 16 bit, differential, high-precision
Beckhoff

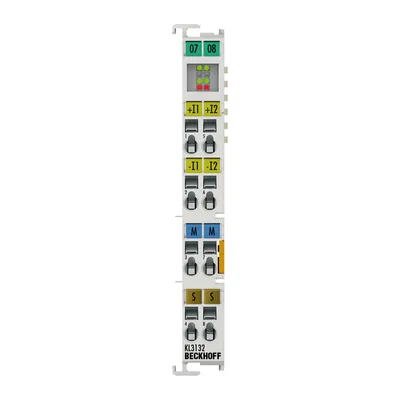

KL3132Bus Terminal, 2-channel analog input, voltage, ±10 V, 16 bit, differential, high-precision
Beckhoff
KL3064Bus Terminal, 4-channel analog input, voltage, 0…10 V, 12 bit, single-ended, with shield connector
Beckhoff
KL3214Bus Terminal, 4-channel analog input, temperature, RTD (Pt100), 16 bit, 3-wire connection
Beckhoff
KL3222Bus Terminal, 2-channel analog input, temperature, RTD (Pt100), 16 bit, high-precision
Beckhoff
KL3356Bus Terminal, 1-channel analog input, measuring bridge, full bridge, 16 bit, high-precision
Compare KL3xxx | Analog input
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of inputs | Technology | Current consumption power contacts | Weight | Approvals/markings |
|---|---|---|---|---|---|
| KL3044 | 4 | single-ended | – (no power contacts) | approx. 70 g | CE, CCC, UL, ATEX, IECEx, DNV |
| KL3152 | 2 | differential input | – | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3122 | 2 | differential input | – (no power contacts) | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3054 | 4 | single-ended | – (no power contacts) | approx. 70 g | CE, CCC, UL, ATEX, IECEx, DNV, cFMus |
| KL3142 | 2 | differential input | – | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3112 | 2 | differential input | – (no power contacts) | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3182 | 2 | differential input | – | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3172 | 2 | differential input | – | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3162 | 2 | differential input | – | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3132 | 2 | differential input | – | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3102 | 2 | differential input | – (no power contacts) | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3064 | 4 | single-ended | – (no power contacts) | approx. 80 g | CE, CCC, UL, ATEX, IECEx, DNV |
| KL3204-0030 | 4 | 2-wire | – (no power contacts) | approx. 70 g | CE, UL |
| KL3204 | 4 | 2-wire | – (no power contacts) | approx. 70 g | CE, CCC, UL, ATEX, IECEx, DNV |
| KL3214 | 4 | — | – | approx. 60 g | CE, UL |
| KL3208-0010 | 8 | 2-wire | – | approx. 75 g | CE, CCC, UL, ATEX, IECEx |
| KL3222 | 2 | 4-wire | – | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3228 | 8 | 1-wire | – | approx. 75 g | CE, CCC, UL, ATEX, IECEx |
| KL3403 | 3 x current, 3 x voltage | 3-phase power measurement | – (no power contacts) | approx. 75 g | CE, UL |
| KL3362 | 2 analog, 1 trigger | high-speed data logger | – (no power contacts) | approx. 55 g | CE, CCC, UL, ATEX, IECEx |
| KL3361 | 1 analog, 1 trigger | high-speed data logger | – (no power contacts) | approx. 55 g | CE, CCC, UL, ATEX, IECEx |
| KL3356 | 2, for 1 resistor bridge | strain gauge connection | load only | approx. 75 g | CE, CCC, UL, ATEX, IECEx |
| KL3351 | 2, for 1 resistor bridge | strain gauge connection | – (no power contacts) | approx. 70 g | CE, CCC, UL, ATEX, IECEx |
| KL3314 | 4 | 2-wire | – (no power contacts) | approx. 75 g | CE, CCC, UL, ATEX, IECEx, DNV |
Common to all listed parts
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP20/variable |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Stripping length | 8…9 mm |
