ER7xxx | Compact drive technology Parts

Showing 1–5 of 5 parts
Beckhoff ER7041-3002 – EtherCAT Box, 1-channel motion interface, stepper motor, 48 V DC, 5 A, for high-speed applications, M12, with incremental encoder, zinc die-cast
Beckhoff
ER7041-3002

EtherCAT Box, 1-channel motion interface, stepper motor, 48 V DC, 5 A, for high-speed applications, M12, with incremental encoder, zinc die-cast

Beckhoff ER7041-2002 – EtherCAT Box, 1-channel motion interface, stepper motor, 48 V DC, 5 A, M12, with incremental encoder, zinc die-cast
Beckhoff
ER7041-2002

EtherCAT Box, 1-channel motion interface, stepper motor, 48 V DC, 5 A, M12, with incremental encoder, zinc die-cast

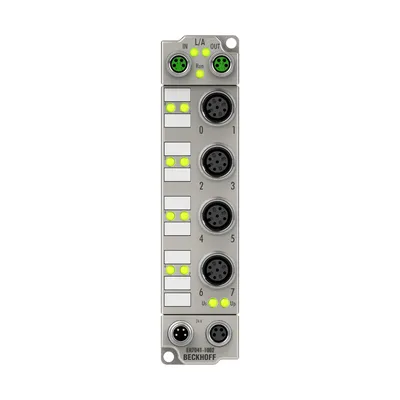

Beckhoff ER7041-1002 – EtherCAT Box, 1-channel motion interface, stepper motor, 48 V DC, 1.5 A, M12, with incremental encoder, zinc die-cast
Beckhoff
ER7041-1002

EtherCAT Box, 1-channel motion interface, stepper motor, 48 V DC, 1.5 A, M12, with incremental encoder, zinc die-cast

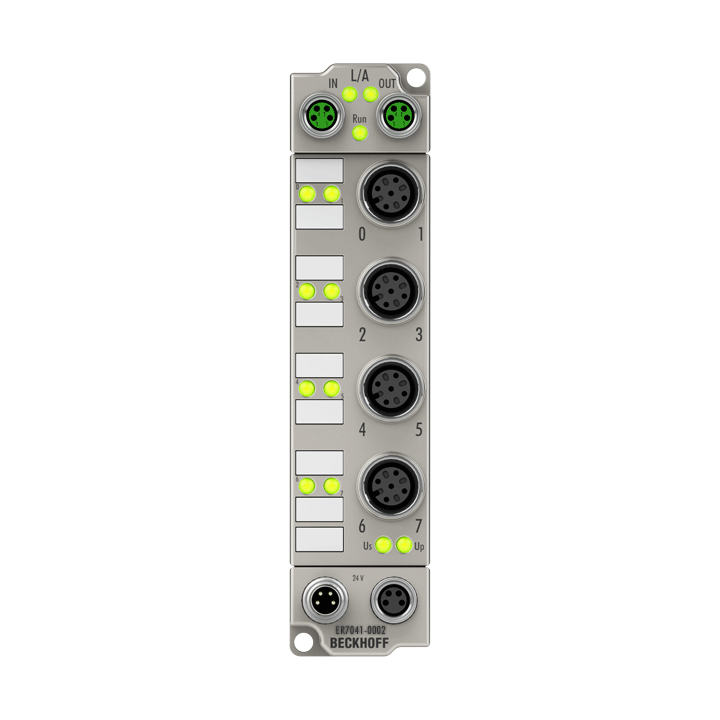

Beckhoff ER7041-0002 – EtherCAT Box, 1-channel motion interface, stepper motor, 48 V DC, 5 A, M12, with incremental encoder, zinc die-cast
Beckhoff
ER7041-0002

EtherCAT Box, 1-channel motion interface, stepper motor, 48 V DC, 5 A, M12, with incremental encoder, zinc die-cast

Beckhoff ER7342-0002 – EtherCAT Box, 1-channel motion interface, DC motor, 48 V DC, 4.5 A, M12, with incremental encoder, zinc die-cast
Beckhoff
ER7342-0002

EtherCAT Box, 1-channel motion interface, DC motor, 48 V DC, 4.5 A, M12, with incremental encoder, zinc die-cast

Compare ER7xxx | Compact drive technology

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNLoad typeStep patternCurrent controller frequencyElectrical isolation
ER7041-30022-phase stepper motor (uni-/bipolar)256-fold micro steppingdynamic500 V
ER7041-20022-phase stepper motor (uni-/bipolar)64-fold micro steppingapprox. 30 kHz500 V
ER7041-10022-phase stepper motor (uni-/bipolar)64-fold micro steppingapprox. 30 kHzcontrol voltage/fieldbus: yes
ER7041-00022-phase stepper motor (uni-/bipolar)64-fold micro steppingapprox. 30 kHz500 V
ER7342-0002DC brush motor, inductive——500 V

Common to all listed parts

ProtocolEtherCAT
Bus interface2 x M8 socket, 4-pin, a-coded, shielded
Connection methodM12 socket, 5-pin, a-coded
Distributed clocksyes
Current consumption from US120 mA
Weightapprox. 265 g
Operating temperature-25…+60°C
Storage temperature-40…+85°C
