Beckhoff
EP2328-0002EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M12
EP1xxx | Digital input Parts
Beckhoff
EP2328-0001EtherCAT Box, 4-channel digital input + 4-channel digital output, 24 V DC, 3 ms, 2 A, M8
Beckhoff

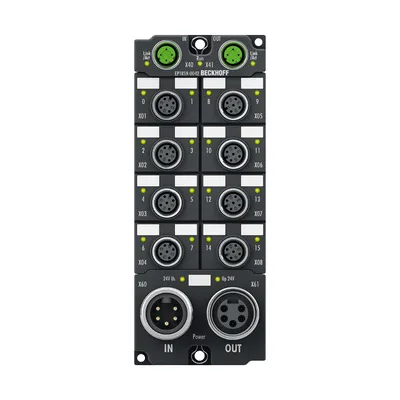

EP1859-0042EtherCAT Box, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, M12
Beckhoff
EP2339-0121EtherCAT Box, 16-channel digital combi, 24 V DC, 3 ms, 0.5 A, ground switching, M8
Beckhoff
EP1816-1008EtherCAT Box, 16-channel digital input, 24 V DC, 10 µs, D-sub, changed pin assignment
Beckhoff
EP1816-0703EtherCAT Box, 16-channel digital input, ID switch, 24 V DC, 10 µs, IP20 connector
Compare EP1xxx | Digital input
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Input filter | “0” signal voltage | Current consumption from US | Weight | Dimensions (W x H x D) |
|---|---|---|---|---|---|
| EP2328-0002 | 3.0 ms | -3…+5 V | typ. 120 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |
| EP2328-0001 | 3.0 ms | -3…+5 V | typ. 120 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |

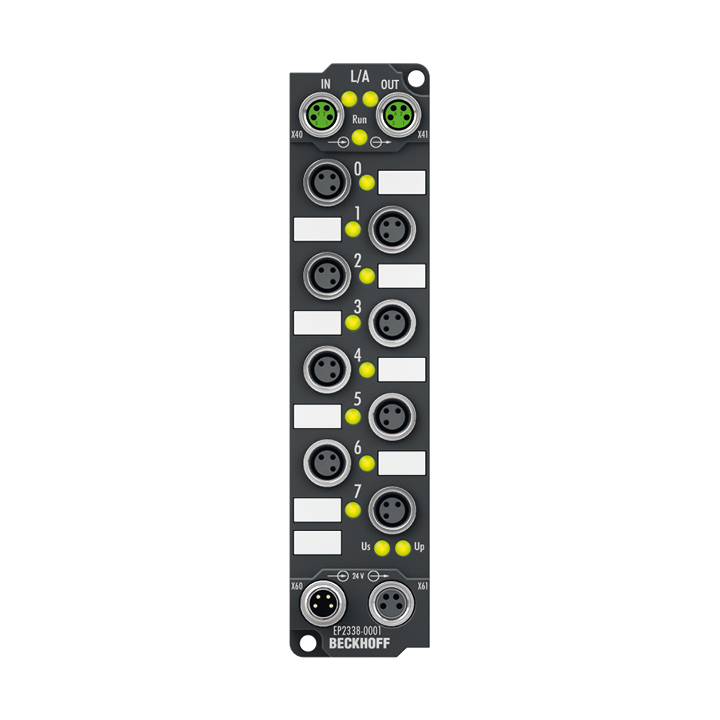

| EP2338-0001 | 10 µs | -3…+5 V | 120 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |
| EP2338-0002 | 10 µs | -3…+5 V | 120 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |

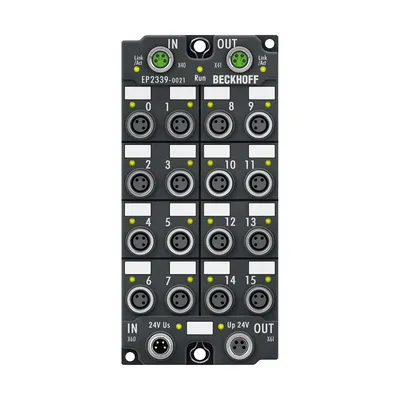

| EP2339-0021 | 3.0 ms | -3…+5 V | 120 mA | approx. 250 g | 60 mm x 126 mm x 26.5 mm |
| EP2339-0022 | 3.0 ms | -3…+5 V | 120 mA | approx. 250 g | 60 mm x 126 mm x 26.5 mm |
| EP2349-0021 | 10 µs | -3…+5 V | typ. 130 mA | approx. 250 g | 60 mm x 126 mm x 26.5 mm |
| EP2349-0022 | 10 µs | -3…+5 V | typ. 130 mA | approx. 250 g | 60 mm x 126 mm x 26.5 mm |
| EP2338-1001 | 3.0 ms | -3…+5 V | 120 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |
| EP2338-1002 | 3.0 ms | -3…+5 V | 120 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |
| EP1809-0042 | 3.0 ms | -3…+5 V (EN 61131-2, type 3) | typ. 130 mA | approx. 440 g | 60 mm x 150 mm x 26.5 mm |

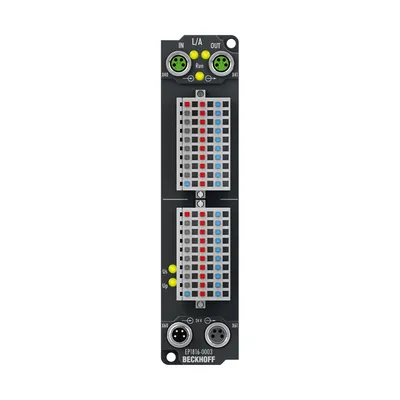

| EP1816-0003 | 10 µs | -3…+5 V (EN 61131-2, type 3) | 120 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |
| EP1859-0042 | 3.0 ms | -3…+5 V | — | approx. 440 g | 60 mm x 150 mm x 26.5 mm |
| EP2339-0003 | 3.0 ms | -3…+5 V | 120 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |
| EP2339-0042 | 3.0 ms | -3…+5 V | 120 mA | approx. 440 g | 60 mm x 150 mm x 26.5 mm |
| EP2339-0121 | 3.0 ms | 18…30 V | typ. 130 mA | approx. 260 g | 60 mm x 126 mm x 26.5 mm |

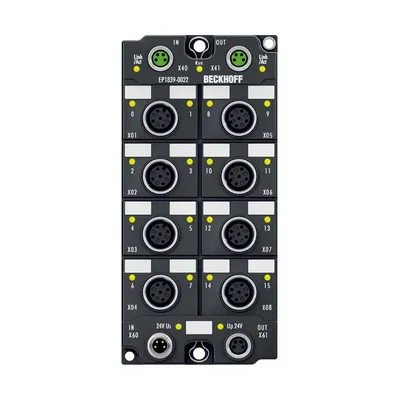

| EP1839-0022 | adjustable 0…100 ms | -3…+5 V (EN 61131-2, type 3) | typ. 130 mA | approx. 250 g | 60 mm x 126 mm x 26.5 mm |
| EP1839-0042 | adjustable 0…100 ms | -3…+5 V (EN 61131-2, type 3) | typ. 130 mA | approx. 440 g | 60 mm x 150 mm x 26.5 mm |
| EP1816-1008 | 10 µs | -3…+5 V (EN 61131-2, type 3) | 120 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |
| EPX1058-0022 | — | — | 50 mA | approx. 250 g | 60 mm x 126 mm x 26.5 mm |

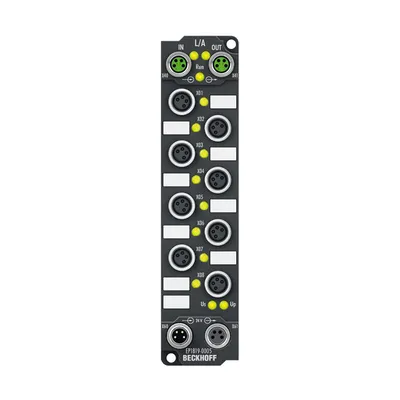

| EP1819-0005 | 10 µs | -3…+5 V (EN 61131-2, type 3) | typ. 100 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |
| EP1258-0502 | typ. 1 µs | -3…+5 V (similar to EN 61131-2, type 3) | 120 mA | approx. 165 g | 30 mm x 126 mm x 26.5 mm |
| EP1816-0703 | 10 µs | -3…+5 V (EN 61131-2, type 3) | 120 mA | approx. 200 g | 30 mm x 155 mm x 26.5 mm |
Common to all listed parts
| Protocol | EtherCAT |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Material | PA6 (polyamide) |
