EtherCAT Box, 8-channel digital input, NAMUR, M12, Ex i
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EP1xxx | Digital input |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EPX1058-0022 be shipped?
EPX1058-0022 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EPX1058-0022 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EPX1058-0022 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EPX1058-0022, subject to availability and destination.

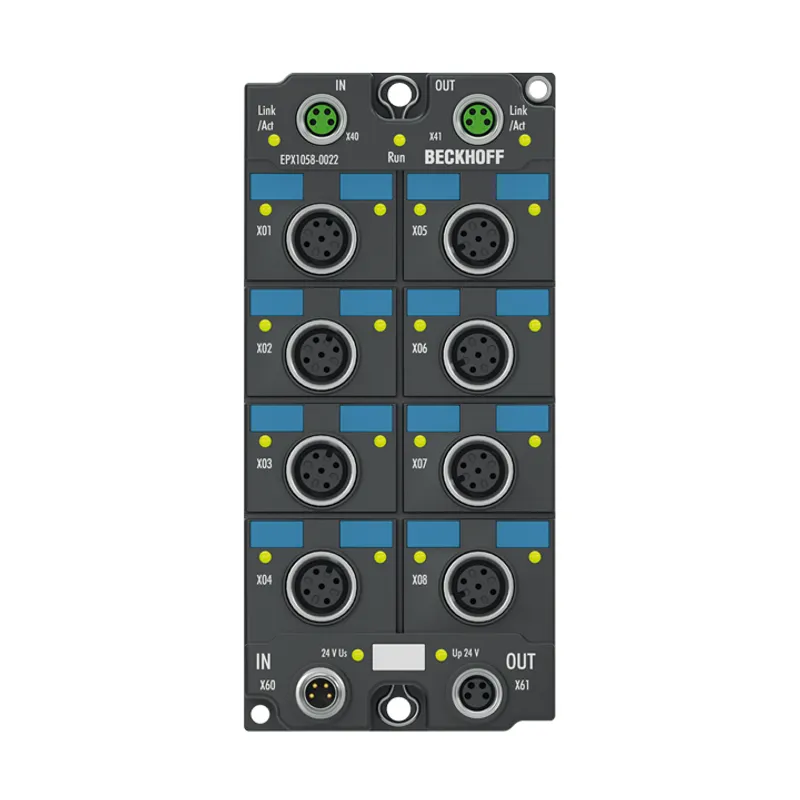

The EPX1058-0022 EtherCAT Box acquires signals from NAMUR field devices according to IEC 60947-5-6. The sensors are supplied with a voltage of 8.2 V and return a diagnosable current signal. In this way, a wire breakage or short circuit can be detected in
Specifications
Specifications
| Protocol | EtherCAT |
| Bus interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Specification | NAMUR (IEC 60947-5-6) |
| Number of inputs | 8 |
| Input connections | M12 x 1, 5-pin, a-coded |
| Connection method | 2-wire |
| Open circuit voltage | typ. 8.2 V DC |
| “0” signal current | ≤ 1.2 mA |
| “1” signal current | ≥ 2.1 mA |
| Switching hysteresis | typ. 300 µA |
| Short-circuit current | typ. 7 mA |
| Fault detection | I ≤ 200 µA (cable break), I ≥ 6.3 mA (short circuit) |
| Max. switching frequency | 1 kHz |
| Power supply connection | feed: 1 x M8 male socket, 4-pin, a-coded; downstream connection: 1 x M8 female socket, 4-pin, a-coded |
| Sensor supply | from load supply voltage UP |
| Current consumption from US | 50 mA |
| Special features | can be parameterized by channel: NAMUR NO/NC, potential-free contacts NO/NC |
| Weight | approx. 250 g |
| Operating temperature | -25…+70°C |
| Storage temperature | -40…+85°C |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. rating/installation pos. | IP65/66/67 (conforms to EN 60529)/variable |
| Approvals/markings | CE, UL, ATEX, IECEx |
| Ex marking | ATEX: II 3(1)G Ex ec [ia Ga] IIC T4 Gc II 3(1)D Ex tc [ia Da] IIIC T135 °C Dc I (M1) [Ex ia Ma] I IECEx: Ex ec [ia Ga] IIC T4 Gc Ex tc [ia Da] IIIC T135 °C Dc [Ex ia Ma] I |
| Dimensions (W x H x D) | 60 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
| Installation | 2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4 |
