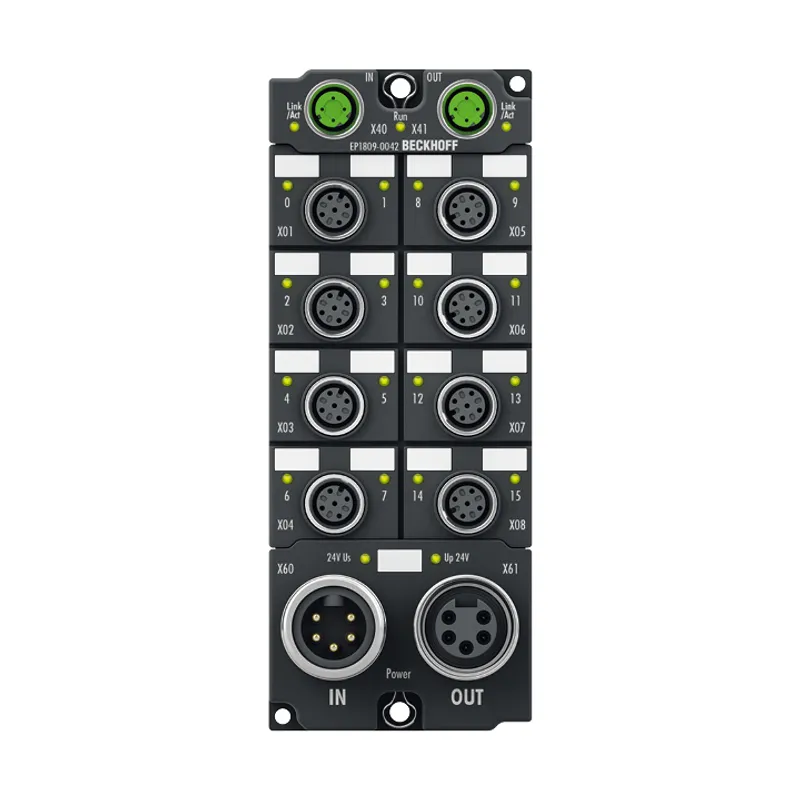

Beckhoff EP1809-0042

EtherCAT Box, 16-channel digital input, 24 V DC, 3 ms, M12

MPN: EP1809-0042
Category: EP1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP1809-0042?

The EP1809-0042 EtherCAT Box with digital inputs acquires the binary control signals from the process level and transmits them, in an electrically isolated form, to the controller. The state of the signals is indicated by light emitting diodes. The

Specifications

Protocol	EtherCAT
Bus interface	2 x M12 socket, 4-pin, D-coded
Specification	EN 61131-2, type 1/3
Number of inputs	16
Input connections	M12 x 1, 5-pin, a-coded
Nominal input voltage	24 V DC (-15%/+20%)
Input filter	3.0 ms
“0” signal voltage	-3…+5 V (EN 61131-2, type 3)
“1” signal voltage	11…30 V (EN 61131-2, type 3)
Input current	typ. 3 mA (EN 61131-2, type 3)
Distributed clocks	–
Power supply connection	feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Current consumption from US	typ. 130 mA
Electrical isolation	500 V
Weight	approx. 440 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	60 mm x 150 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4
