Beckhoff EP1859-0042

EtherCAT Box, 8-channel digital input + 8-channel digital output, 24 V DC, 3 ms, 0.5 A, M12

MPN: EP1859-0042
Category: EP1xxx | Digital input

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff EP1859-0042?

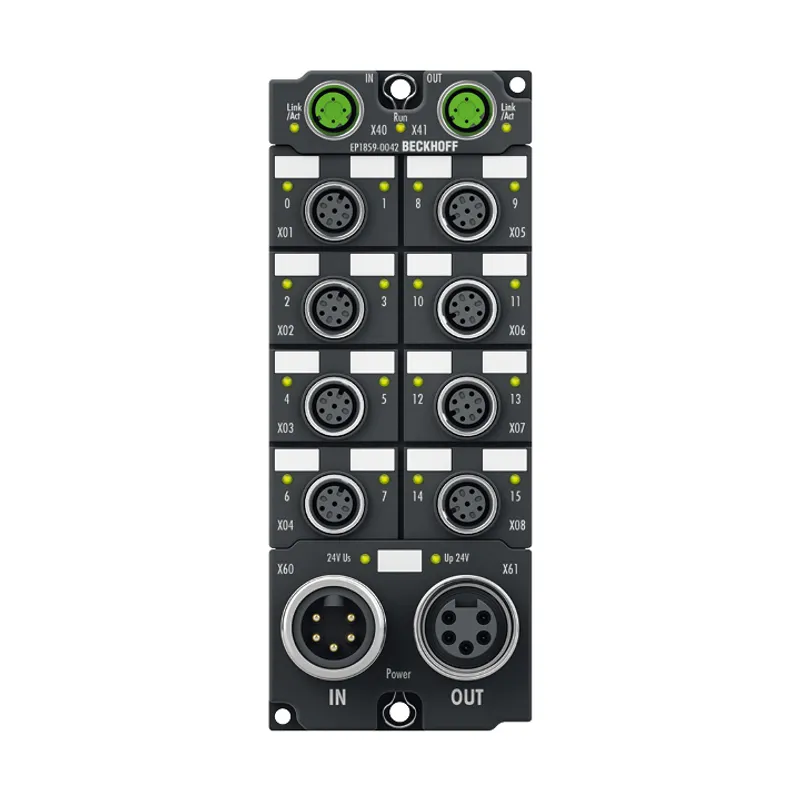

The EP1859-0042 EtherCAT Box combines eight digital inputs (four M12 sockets on the left) and eight digital outputs (four M12 sockets on the right) in one device. The inputs have a filter of 3.0 ms. The outputs process load currents up to 0.5 A, are

Specifications

Protocol	EtherCAT
Bus interface	2 x M12 socket, 4-pin, D-coded, shielded
Specification	EN 61131-2, type 1/3
Number of channels	8 inputs + 8 outputs
Input/output connections	M12 x 1, 5-pin, a-coded
Input filter	3.0 ms
“0” signal voltage	-3…+5 V
“1” signal voltage	11…30 V, 3 mA input current (EN 61131-2, type 1/3)
Sensor supply	from control voltage, max. 0.5 A, short-circuit proof in total
Load type	ohmic, inductive, lamp load
Rated load voltage	24 V DC (-15%/+20%)
Max. output current	0.5 A per channel, individually short-circuit proof
Switching times	typ. TON: 50 µs, typ. TOFF: 100 µs
Short-circuit current	typ. 1.5 A
Distributed clocks	–
Current consumption	120 mA
Auxiliary power current	typ. 20 mA + load
Power supply connection	feed: 1 x 7/8" plug, 5-pin; downstream connection: 1 x 7/8" socket, 5-pin
Electrical isolation	500 V
Weight	approx. 440 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos.	IP65/66/67 (conforms to EN 60529)/variable
Approvals/markings	CE, UL (in preparation)
Dimensions (W x H x D)	60 mm x 150 mm x 26.5 mm
Material	PA6 (polyamide)
Installation	2 fixing holes 3.5 mm diameter for M3; 2 fixing holes 4.5 mm diameter for M4

EP1859-0042: frequently asked questions

When can EP1859-0042 be shipped?

EP1859-0042 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EP1859-0042 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EP1859-0042 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EP1859-0042, subject to availability and destination.
