Home / I/O / EtherCAT Terminals / EK1xxx, BK1xx0 | EtherCAT Coupler

EK1xxx, BK1xx0 | EtherCAT Coupler Parts

Beckhoff EK1828 – EtherCAT Coupler with integrated digital inputs/outputs

Beckhoff

EtherCAT Coupler with integrated digital inputs/outputs

Beckhoff EK1818 – EtherCAT Coupler with integrated digital inputs/outputs

Beckhoff

EtherCAT Coupler with integrated digital inputs/outputs

Beckhoff EK1814 – EtherCAT Coupler with integrated digital inputs/outputs

Beckhoff

EtherCAT Coupler with integrated digital inputs/outputs

Beckhoff EK1000 – EtherCAT TSN Coupler

Beckhoff

EtherCAT TSN Coupler

Beckhoff EKM1101 – EtherCAT Coupler with ID switch and diagnostics

Beckhoff

EtherCAT Coupler with ID switch and diagnostics

Beckhoff EK1960 – TwinSAFE Compact Controller

Beckhoff

TwinSAFE Compact Controller

Beckhoff EK1101-0010 – EtherCAT Coupler with ID switch, Extended Distance

Beckhoff

EtherCAT Coupler with ID switch, Extended Distance

Beckhoff EK1121-0010 – 1-port EtherCAT junction, Extended Distance

Beckhoff

1-port EtherCAT junction, Extended Distance

Beckhoff EK1110-0043 – EtherCAT EJ coupler, CX and EL terminal connection

Beckhoff

EtherCAT EJ coupler, CX and EL terminal connection

Beckhoff EK1101-0008 – EtherCAT Coupler with ID switch and M8 connection

Beckhoff

EtherCAT Coupler with ID switch and M8 connection

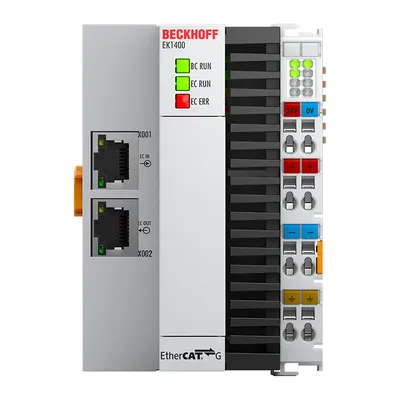

Beckhoff EK1400 – EtherCAT G Coupler

Beckhoff

EtherCAT G Coupler

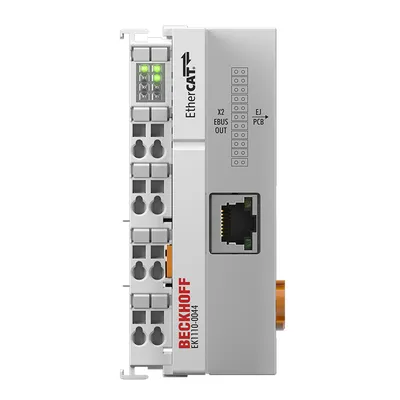

Beckhoff EK1110-0044 – EtherCAT EJ coupler, CX and EL terminal connection, EtherCAT junction

Beckhoff

EtherCAT EJ coupler, CX and EL terminal connection, EtherCAT junction

Compare EK1xxx, BK1xx0 | EtherCAT Coupler

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Distance between stations	Protocol	Operating temperature	Approvals/markings	Dimensions (W x H x D)
EK1828	max. 100 m (100BASE-TX)	EtherCAT	-25…+60°C	CE, UL	44 mm x 100 mm x 67 mm
EK1818	max. 100 m (100BASE-TX)	EtherCAT	-25…+60°C	CE, UL	44 mm x 100 mm x 67 mm
EK1814	max. 100 m (100BASE-TX)	EtherCAT	-25…+60°C	CE, UL	44 mm x 100 mm x 67 mm
EK1000	max. 100 m (100BASE-TX)	EtherCAT Open Mode	-25…+60°C	CE	71 mm x 100 mm x 73 mm
EKM1101	max. 100 m (100BASE-TX)	EtherCAT	-25…+55°C	CE, CCC, ATEX, IECEx, cFMus	30 mm x 100 mm x 95 mm
EK1960	—	TwinSAFE/Safety over EtherCAT	—	—	—
EK1101-0010	max. 300 m	EtherCAT	-25…+60°C	CE, UL	44 mm x 100 mm x 68 mm
EK1121-0010	max. 300 m	EtherCAT	0…55°C	CE, UL	24 mm x 100 mm x 52 mm
EK1110-0043	—	—	-25…+60°C	CE	44 mm x 100 mm x 68 mm
EK1101-0008	max. 100 m (100BASE-TX)	EtherCAT	-25…+60°C	CE	44 mm x 100 mm x 68 mm
EK1400	max. 100 m (1000BASE-T)	EtherCAT	0…55°C	CE	71 mm x 100 mm x 73 mm
EK1110-0044	100 m (100BASE-TX)	—	-25…+60°C	CE	44 mm x 100 mm x 68 mm
