EtherCAT EJ coupler, CX and EL terminal connection, EtherCAT junction
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | EK1xxx, BK1xx0 | EtherCAT Coupler |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EK1110-0044 be shipped?
EK1110-0044 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EK1110-0044 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EK1110-0044 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EK1110-0044, subject to availability and destination.

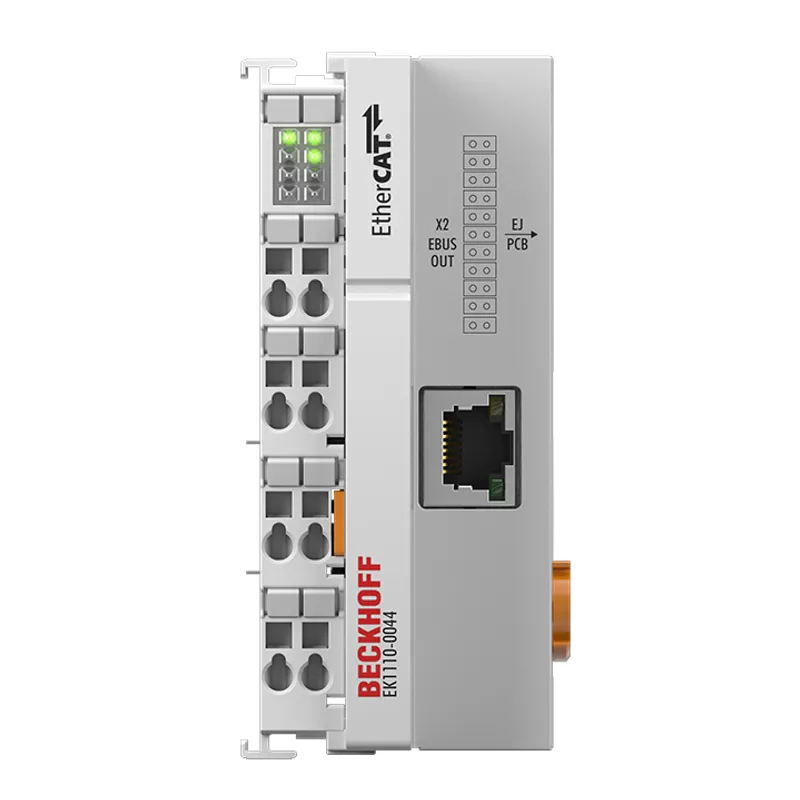

The EK1110-0044 EtherCAT EJ Coupler connects the compact Embedded PCs from the CX series and the attached EtherCAT Terminals with the EtherCAT plug-in modules on an application-specific circuit board (signal distribution board). Special features: –
Specifications
Specifications
| Task within EtherCAT system | forwarding of E-bus signals to the signal distribution board (EJ board) |
| Data transfer medium | X1: Ethernet/EtherCAT cable (min. Cat.5), shielded, X2: PCB tracks on the signal distribution board |
| Distance between stations | 100 m (100BASE-TX) |
| Delay | approx. 1 µs |
| Data transfer rates | 100 Mbit/s |
| Bus interface | X1: 1 x RJ45, X2: plug connector on the rear side of the EtherCAT EJ coupler |
| Power supply | from E-bus, Embedded PC power supply module |
| Current consumption E-bus | typ. 140 mA |
| Electrical isolation | 500 V (supply voltage/Ethernet) |
| Weight | approx. 50 g |
| Operating temperature | -25…+60°C |
| Storage temperature | -40…+85°C |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Relative humidity | 95%, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Protect. rating/installation pos. | IP20/see documentation |
| Approvals/markings | CE |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Marking | labeling of the BZxxxx series |
| Dimensions (W x H x D) | 44 mm x 100 mm x 68 mm |
