Home / Beckhoff / CX20x3 | AMD Ryzen™ / Beckhoff CX2550-0179

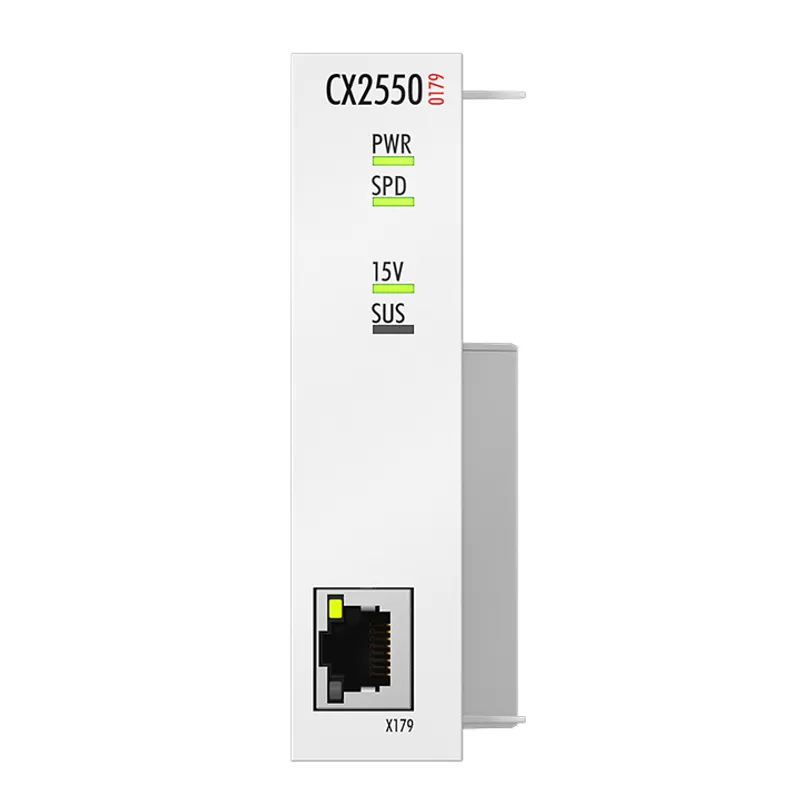

Beckhoff CX2550-0179

USB Extender Tx for CX20xx (CP69xx-xxxx-0000, CP79xx-xxxx-0000)

MPN: CX2550-0179
Category: CX20x3 | AMD Ryzen™

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Beckhoff parts? We buy surplus →

What is the Beckhoff CX2550-0179?

The CX2550-0179 and CX2550-0279 modules supplement the CX20xx series by the function of the CU8800 and CU8801 USB extension for Industrial PCs and enable the direct connection of Beckhoff Control Panels with USB Extended interface. The CX2550-0x79 system

Specifications

Interfaces	1 x USB Extended 1.1
Connection type	RJ45 socket
Properties	transmission of USB 1.1 up to max. 50 m via Cat.5E cable
Diagnostics LED	1 x power, 1 x speed, 1 x +15 V, 1 x suspend
Power supply	via system bus (through CX2100-0xxx power supply modules)
Dimensions (W x H x D)	24 mm x 99 mm x 54.5 mm
Weight	approx. 190 g
Operating temperature	-25…+60°C
Storage temperature	-40…+85°C
Relative humidity	95%, no condensation
Vibration/shock resistance	conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission	conforms to EN 61000-6-2/EN 61000-6-4
Protection rating	IP20

CX2550-0179: frequently asked questions

When can CX2550-0179 be shipped?

CX2550-0179 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CX2550-0179 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CX2550-0179 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CX2550-0179, subject to availability and destination.
