Home / Hydraulic valves / Directional control valves / Manifold directional control valves

Manifold directional control valves Parts

Danfoss

02-156537

DG4V 3 2F M U H7 60, DG4V32FMUH760

Danfoss

02-156520

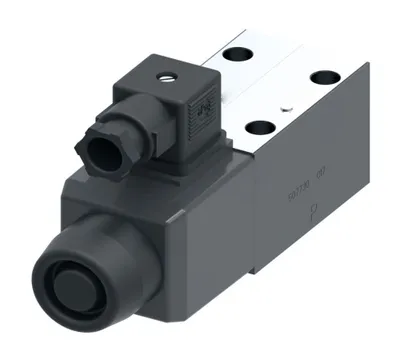

DG4V 3 2A Z M U1 H7 60, DG4V32AZMU1H760

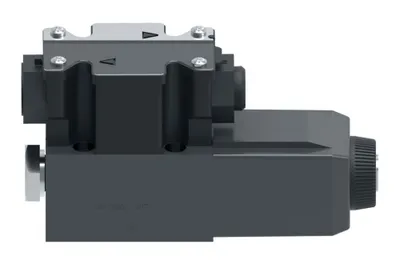

Danfoss

02-156514

DG4V 3 3BL M FW B6 60, DG4V33BLMFWB660

Danfoss

02-156477

KDG4V 3 2C28S Z M U HA760, KDG4V32C28SZMUHA760

Danfoss

02-156267

DG4V 3 22A H MU H7 60, DG4V322AHMUH760

Danfoss

02-156215

KDG4V 3 33C20N Z VM U H760, KDG4V333C20NZVMUH760

Danfoss

02-156185

DG4V 3 2C M FW D6 60, DG4V32CMFWD660

Danfoss

02-156177

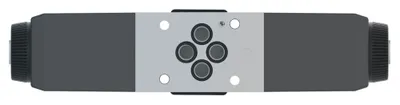

DG4V-3-6N-M-FPA5WL-H7-60, DG4V36NMFPA5WLH760

Danfoss

02-156153

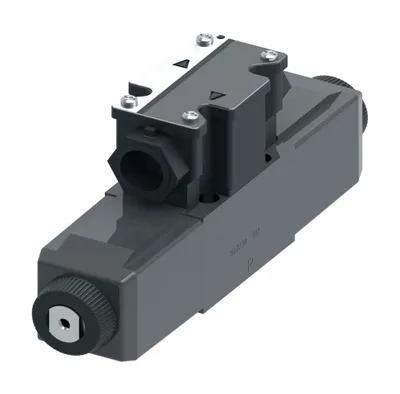

DG4V-3-33C-M-FTWL-H7-60, DG4V333CMFTWLH760

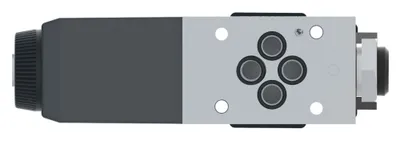

Danfoss

02-156151

DG4V 3 6A M FTWL B6 60, DG4V36AMFTWLB660

Danfoss

02-156120

DG4V 3 7AL M U HL7 60, DG4V37ALMUHL760

Danfoss

02-156062

KDG4V-3-33C20N-M-U-H7-60, KDG4V333C20NMUH760

Danfoss

02-156055

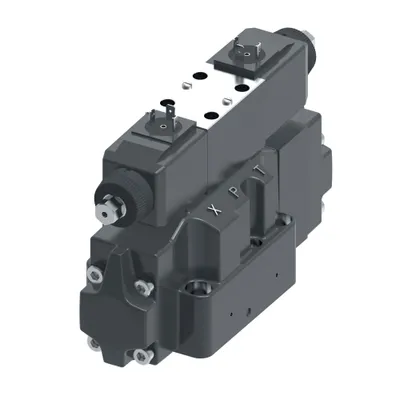

KDG5V 7 33C170N H MU H110, KDG5V733C170NHMUH110

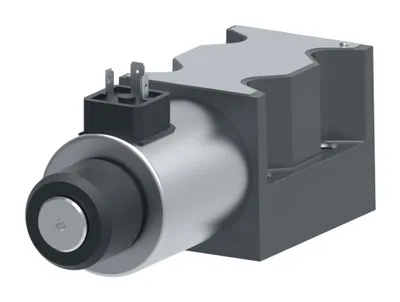

Danfoss

02-156038

DG4V-5-2AL-VM-U-C6-20, DG4V52ALVMUC620

Danfoss

02-155946

KDG4V-3S-2C19N-M-U-HA5-60, KDG4V3S2C19NMUHA560

Danfoss

02-155924

KDG4V 3S 2C08N M U GP5 60, KDG4V3S2C08NMUGP560

Danfoss

02-155923

KDG4V-3S-2C08N-M-U-G5-60, KDG4V3S2C08NMUG560

Danfoss

02-155609

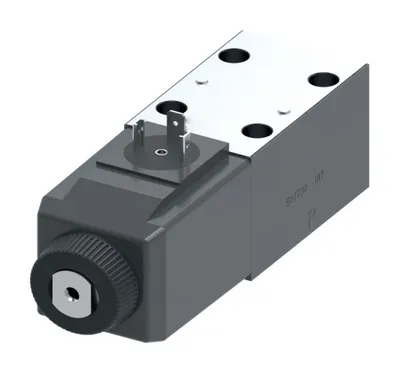

DG4V-3-8B-VM-U-G7-61, DG4V38BVMUG761

Danfoss

02-155391

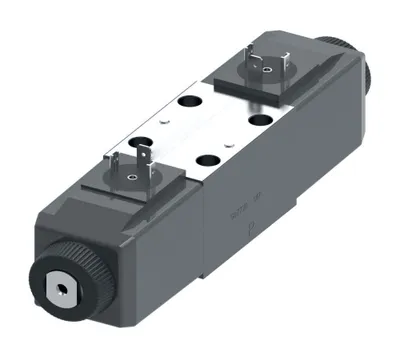

KDG4V-3S-33C15A-M-U-G5-60, KDG4V3S33C15AMUG560

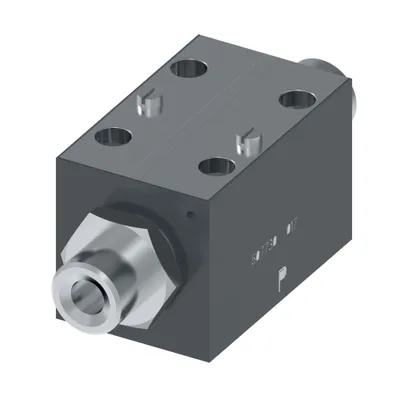

Danfoss

02-155234

KDG3V-3-33C34A-S-60, KDG3V333C34AS60

Danfoss

02-154882

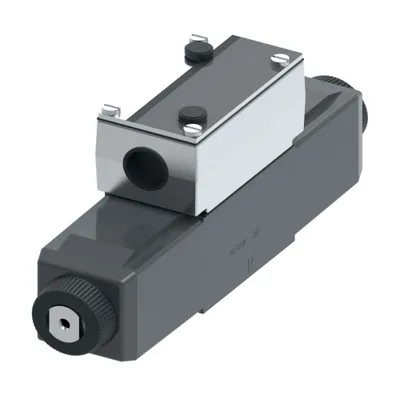

DG4V-3-6C-M-FWL-B6-60-EN21, DG4V36CMFWLB660EN21

Danfoss

02-154404

KDG3V-5-33C95A-S-10, KDG3V533C95AS10

Danfoss

02-154403

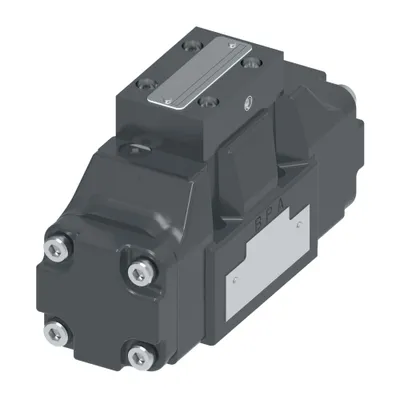

KDG3V 5 2C95A S 10, KDG3V52C95AS10

Danfoss

02-154402

KDG3V-5-33C63A-S-10, KDG3V533C63AS10

Compare Manifold directional control valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code 1	Product height in	Product length in	Product length mm	Spool Type
02-156537	DG4V32FMUH760	3.420	6.140	155.956	Spool 2
02-156520	DG4V32AZMU1H760	3.420	6.140	155.956	Spool 2
02-156514	DG4V33BLMFWB660	3.570	5.750	146.050	Spool 3
02-156477	KDG4V32C28SZMUHA760	3.400	9.370	237.998	ISO4401-10/NFPA D10/CETOP 10/NG32
02-156267	DG4V322AHMUH760	3.420	6.140	155.956	Spool 22
02-156215	KDG4V333C20NZVMUH760	3.400	9.370	237.998	P blocked, A & B to tank
02-156185	DG4V32CMFWD660	3.570	7.870	199.898	Spool 2
02-156177	DG4V36NMFPA5WLH760	3.570	6.140	155.956	Spool 6
02-156153	DG4V333CMFTWLH760	3.670	8.660	219.964	Spool 33
02-156151	DG4V36AMFTWLB660	3.570	5.750	146.050	Spool 6
02-156120	DG4V37ALMUHL760	3.420	6.140	155.956	Spool 7
02-156062	KDG4V333C20NMUH760	3.400	9.370	237.998	P blocked, A & B to tank
02-156055	KDG5V733C170NHMUH110	7.200	9.400	238.760	Bleed A and B to T
02-156038	DG4V52ALVMUC620	—	—	—	Spool 2
02-155946	KDG4V3S2C19NMUHA560	3.400	9.370	237.998	ISO4401-10/NFPA D10/CETOP 10/NG32
02-155924	KDG4V3S2C08NMUGP560	3.580	8.640	219.456	ISO4401-10/NFPA D10/CETOP 10/NG32
02-155923	KDG4V3S2C08NMUG560	3.580	8.640	219.456	ISO4401-10/NFPA D10/CETOP 10/NG32
02-155609	DG4V38BVMUG761	3.420	6.140	155.956	Spool 8
02-155391	KDG4V3S33C15AMUG560	3.580	8.640	219.456	P blocked, A & B to tank
02-155234	KDG3V333C34AS60	1.890	2.910	73.914	A connected to T, B connected to P
02-154882	DG4V36CMFWLB660EN21	3.570	7.870	199.898	Spool 6
02-154404	KDG3V533C95AS10	4.300	8.500	215.900	Bleed A and B to T
02-154403	KDG3V52C95AS10	4.300	8.500	215.900	ISO4401-10/NFPA D10/CETOP 10/NG32
02-154402	KDG3V533C63AS10	4.300	8.500	215.900	Bleed A and B to T

Common to all listed parts

Working temp min C	-20
Working temp min F	-4
