Manifold directional control valves Parts
Compare Manifold directional control valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Model Code 1 | A Port flow LPM | A Port flow USGPM | B Port flow LPM | B Port flow USGPM |
|---|---|---|---|---|---|

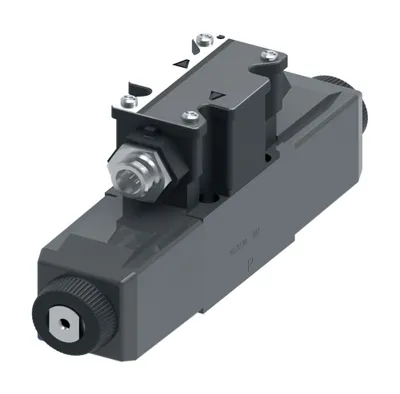

| 02-157344 | DG4V33CMFPA5WLB660 | — | — | — | — |
| 02-157333 | DG4V32BLMFTWLH760 | — | — | — | — |

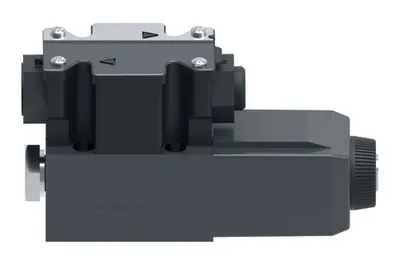

| 02-157307 | DG4V30BLMFTWLB660 | — | — | — | — |
| 02-157268 | KDG4V533C50NMUH730 | 50.00 | 13.20 | 50.00 | 13.20 |
| 02-157267 | KDG4V533C30NMUH730 | 30.00 | 7.90 | 30.00 | 7.90 |

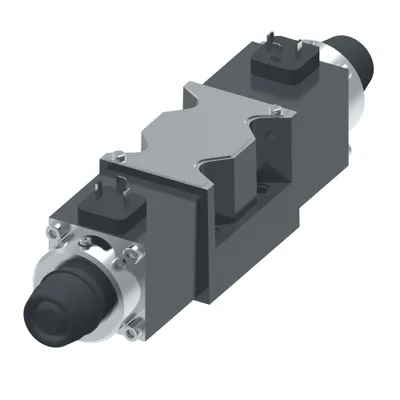

| 02-157266 | KDG4V52C65SMUH630 | 65.00 | 17.20 | 65.00 | 17.20 |
| 02-157265 | KDG4V52C50NMUH730 | 50.00 | 13.20 | 50.00 | 13.20 |
| 02-157264 | KDG4V52C30NMUH730 | 30.00 | 7.90 | 30.00 | 7.90 |
| 02-157208 | KDG4V32C20NZMUG760 | 20.00 | 5.30 | 20.00 | 5.30 |
| 02-157198 | KDG3V733C170NE10 | 170.00 | 45.00 | 170.00 | 45.00 |
| 02-157197 | KDG3V72C180NE10 | 180.00 | 48.00 | 180.00 | 48.00 |
| 02-157194 | KDG3V533C80NE10 | 80.00 | 21.00 | 80.00 | 21.00 |
| 02-157193 | KDG3V52C90NE10 | 90.00 | 24.00 | 90.00 | 24.00 |
| 02-157191 | KDG3V52C90NE10EN39 | 90.00 | 24.00 | 90.00 | 24.00 |

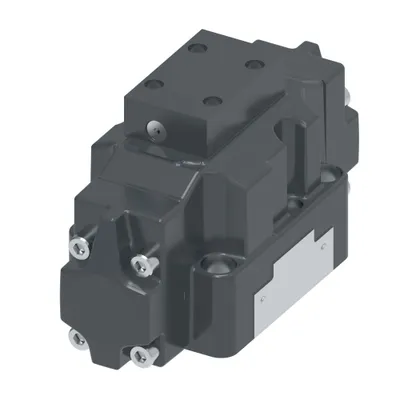

| 02-157189 | KDG3V72C180NE10EN55 | 180.00 | 48.00 | 180.00 | 48.00 |

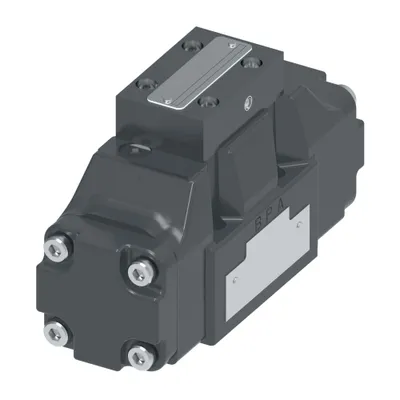

| 02-157188 | KDG3V52C90NE10EN55 | 90.00 | 24.00 | 90.00 | 24.00 |
| 02-157183 | KDG4V32C13NMUH760 | 13.00 | 3.40 | 13.00 | 3.40 |
| 02-157027 | KDG4V333C30XMUHA760 | 30.00 | 7.90 | 30.00 | 7.90 |
| 02-157009 | KDG4V533C30NHMUHA730 | 30.00 | 7.90 | 30.00 | 7.90 |
| 02-157008 | KDG4V533C50NHMUHA730 | 50.00 | 13.20 | 50.00 | 13.20 |
| 02-156981 | DG4V327ALMUC660 | — | — | — | — |

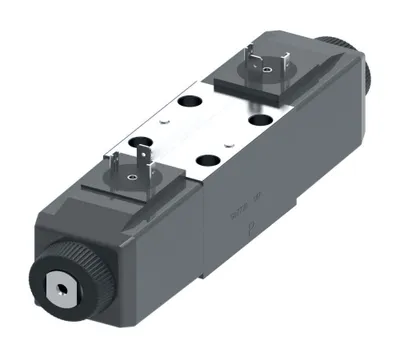

| 02-156943 | KDG4V32C13NZVMUH760 | 13.00 | 3.40 | 13.00 | 3.40 |

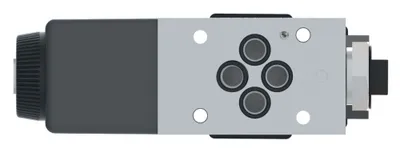

| 02-156594 | DG4V32AMFPA3WH760 | — | — | — | — |

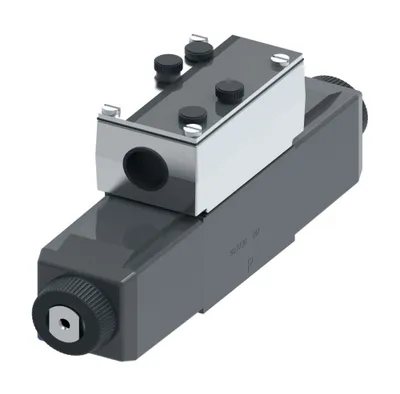

| 02-156593 | DG4V30NMFPBWLH760 | — | — | — | — |
Common to all listed parts
| Stage | Single stage |
| Working temp max C | 70 |
| Working temp max F | 158 |
| Working temp min C | -20 |
| Working temp min F | -4 |
