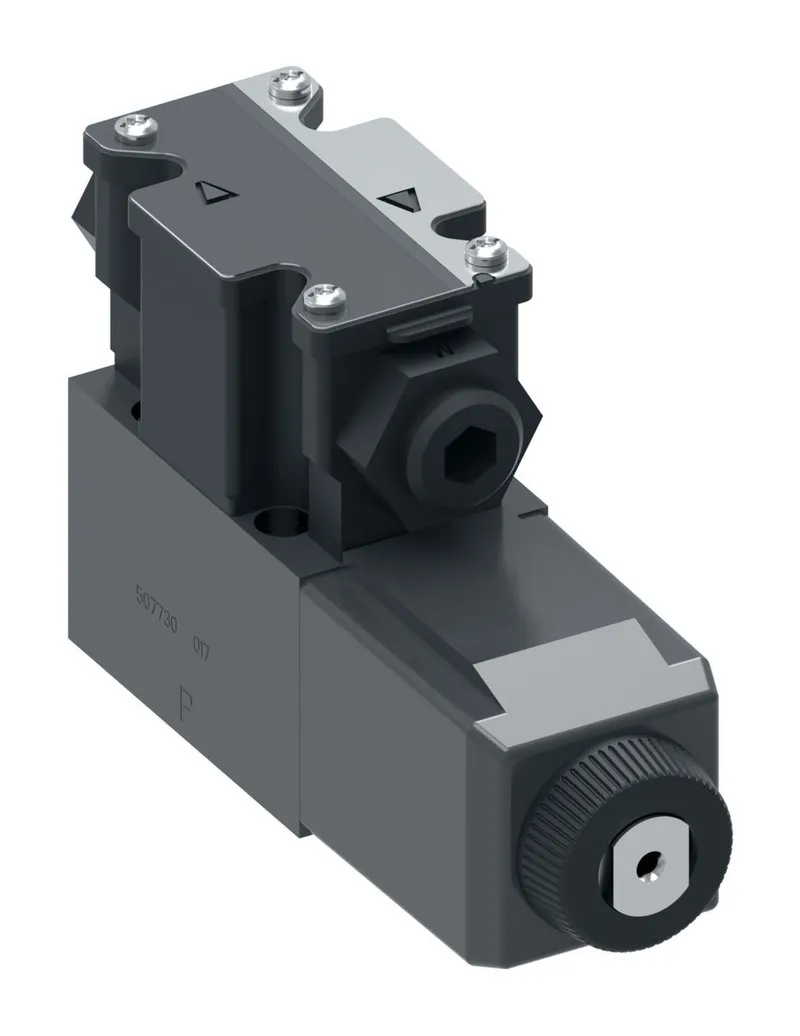

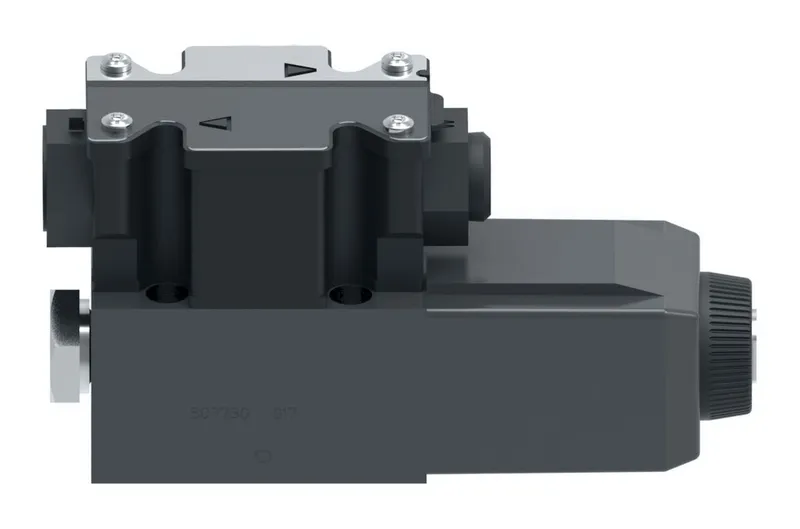

Danfoss 02-156514

DG4V 3 3BL M FW B6 60, DG4V33BLMFWB660

MPN: 02-156514
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-156514?

Danfoss DG4V 3 3BL M FW B6 60, DG4V33BLMFWB660, manufacturer part number 02-156514. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Actuation Type	Solenoid operated
Brand	Vickers by Danfoss
Coil Rating	110 VAC 50Hz/120 VAC 60Hz
Design Series	60 Series
Electrical Connection	Flying lead 1/2" NPT housing
Energ Time	15-23 ms
Flow rate upto GPM	21.0
Flow rate upto LPM	80.0
Fluid Cleanliness	19/17/14 micron
Fluid compatibility	Petroleum oils
Indicator Light	No
Interface	ISO4401-03
Manual override	Plain
Model Code 1	DG4V33BLMFWB660
Performance	High performance
Power Consumption	61VA 50HZ - 58VA 60HZ
Pressure rating BAR	350
Pressure rating PSI	5000
Product height in	3.570
Product length in	5.750
Product length mm	146.050
Product width in	1.880
Product width mm	47.752
Seal type	WATER GLYCOL
Solenoid Energising ID	Standard as per ANSI B93 9
Special features	None
Spool Position Monitor	No
Spool Type	Spool 3
Spring Arrangement	Spring offset end to centre LH
Stage	Single stage
Surge Suppr Damper	No
Tank port rating BAR	210.0
Tank port rating PSI	3000
Valve Mount Type	Subplate/manifold mounted
Valve type	Directional control valve
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
