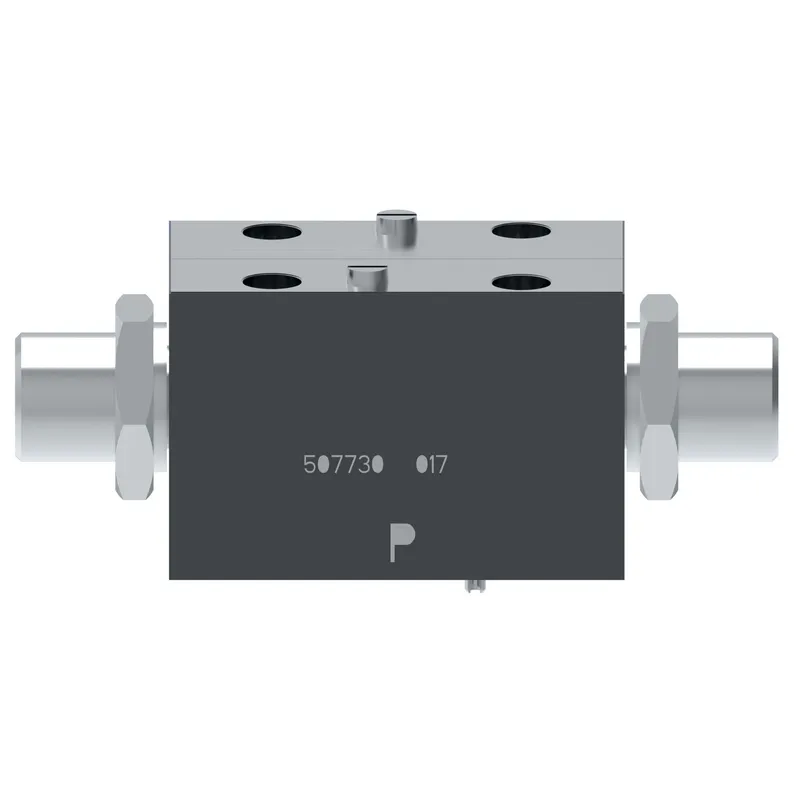

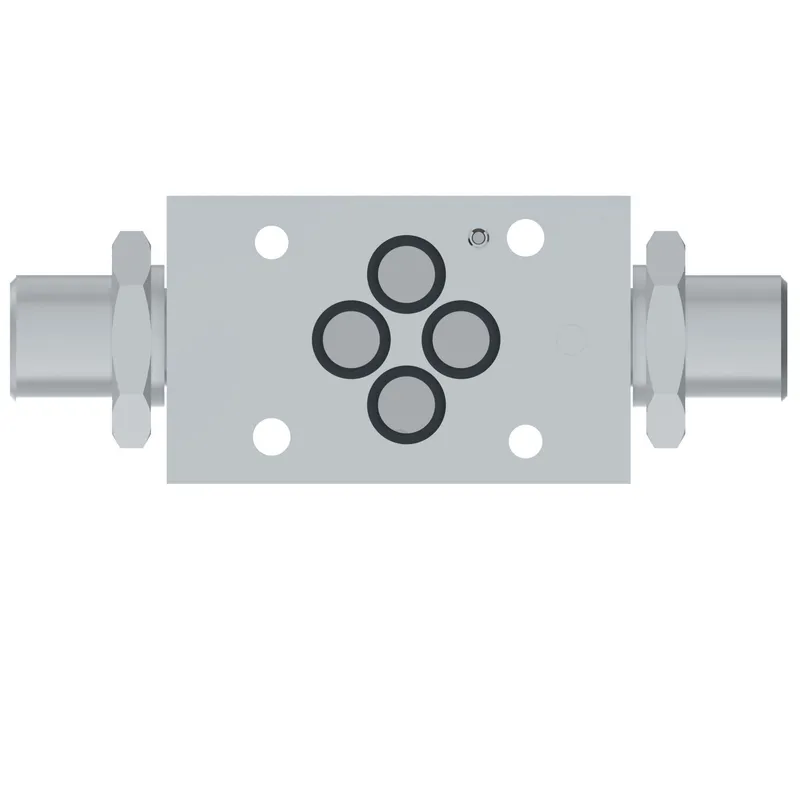

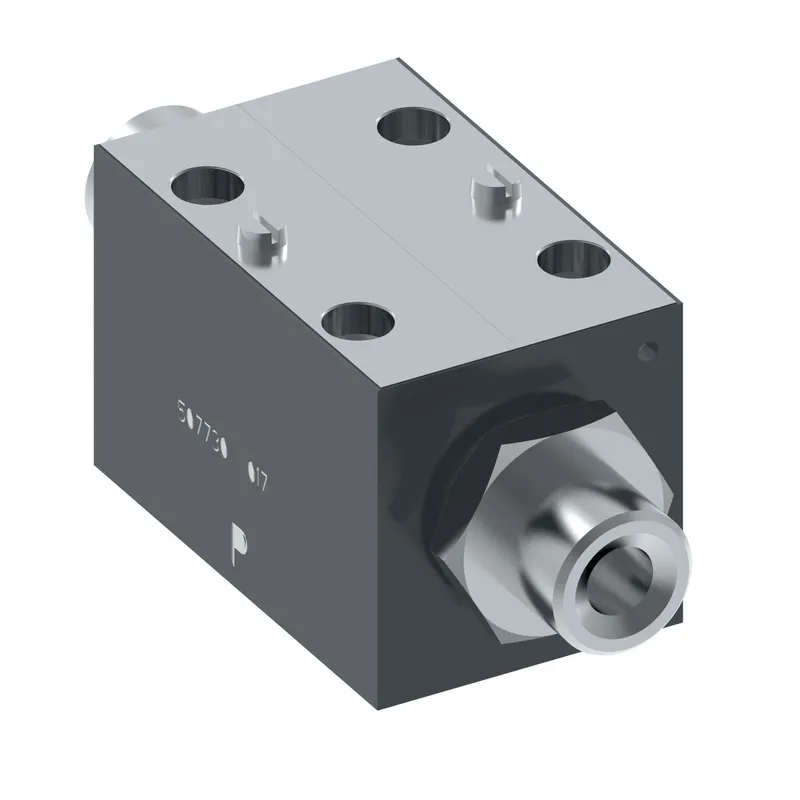

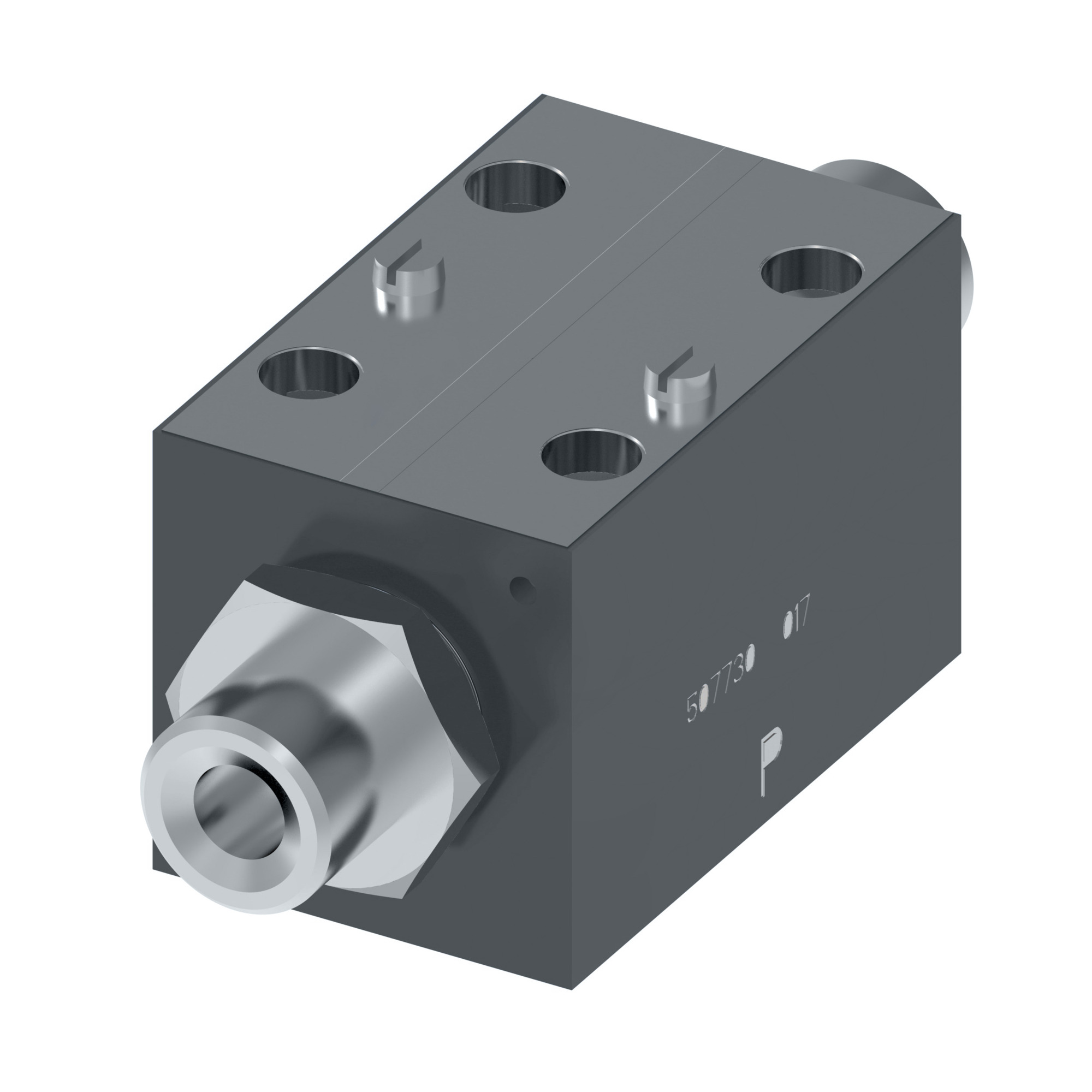

Danfoss 02-155234

KDG3V-3-33C34A-S-60, KDG3V333C34AS60

MPN: 02-155234
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-155234?

Danfoss KDG3V-3-33C34A-S-60, KDG3V333C34AS60, manufacturer part number 02-155234. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	34.00
A Port flow USGPM	9.00
Actuation Type	Hydraulic pilot operated
B Port flow LPM	34.00
B Port flow USGPM	9.00
Brand	Vickers by Danfoss
Build orientation	None
Build type	Spring centered
Coil voltage	None
Command input	None
Communication protocol	None
Design Series	60 Series
Electrical Connection	None
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-03/NFPA D03/CETOP 3/NG06
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter in
Model Code 1	KDG3V333C34AS60
On board electronics	No
Performance	Standard
Product height in	1.890
Product height mm	48.006
Product length in	2.910
Product length mm	73.914
Product width in	1.870
Product width mm	47.498
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	None
Spool Type	A connected to T, B connected to P
Stage	Single stage
Symmetric flow	Yes
Tank port rating BAR	210.0
Tank port rating PSI	3000
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
