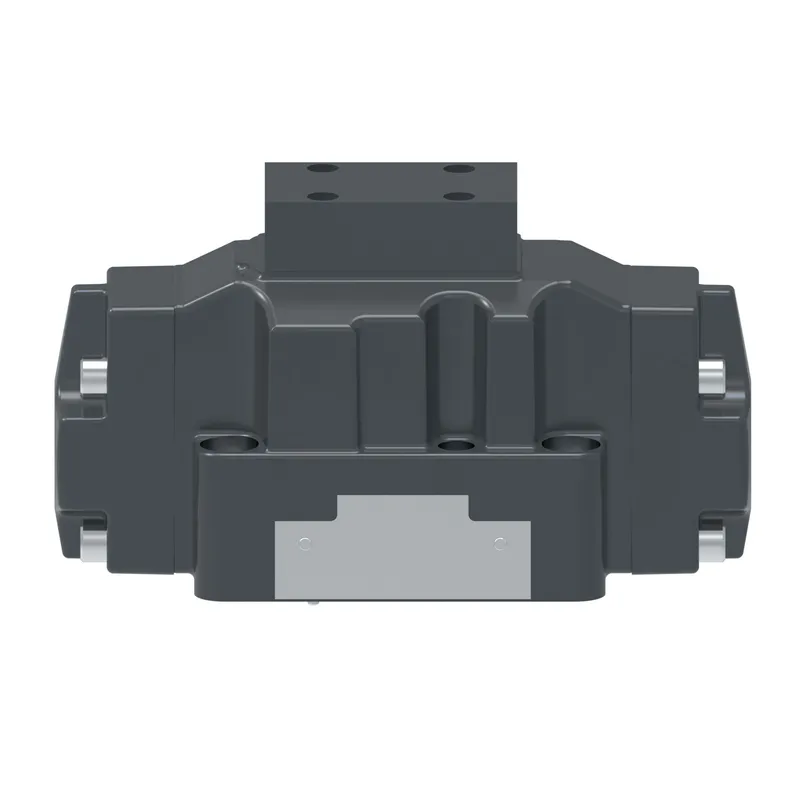

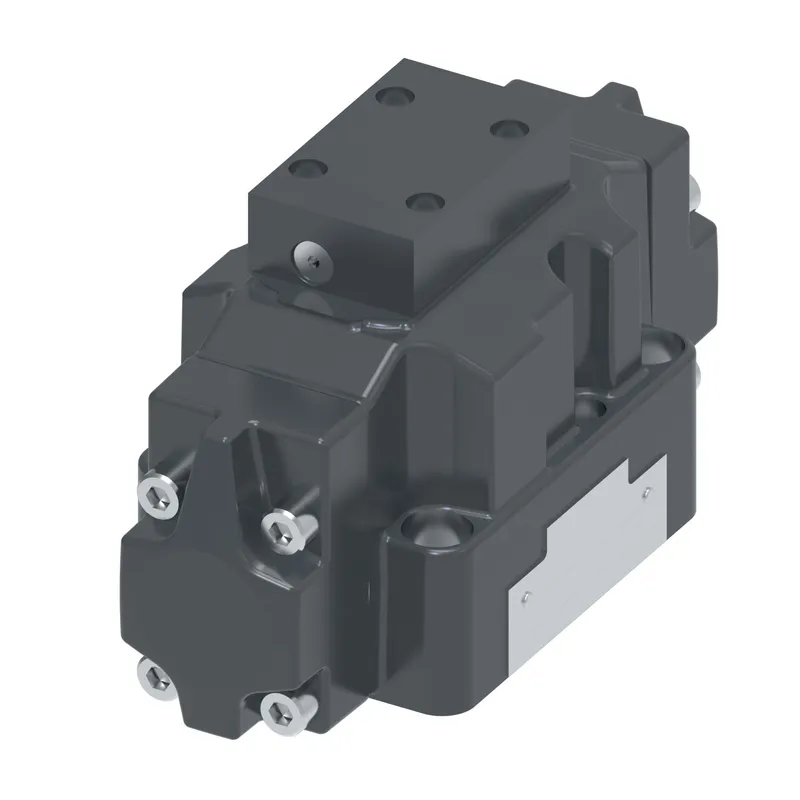

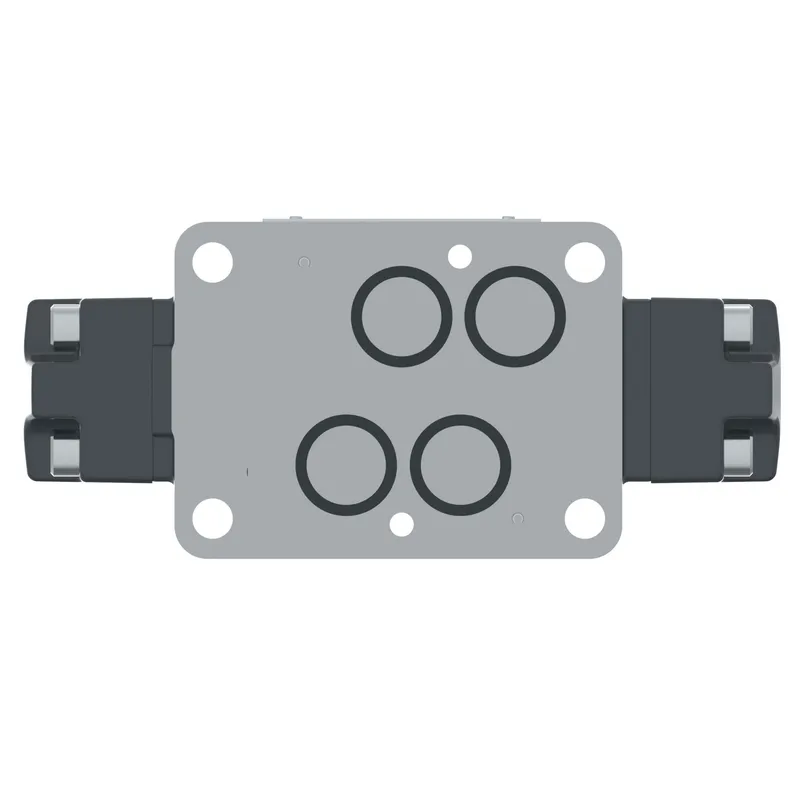

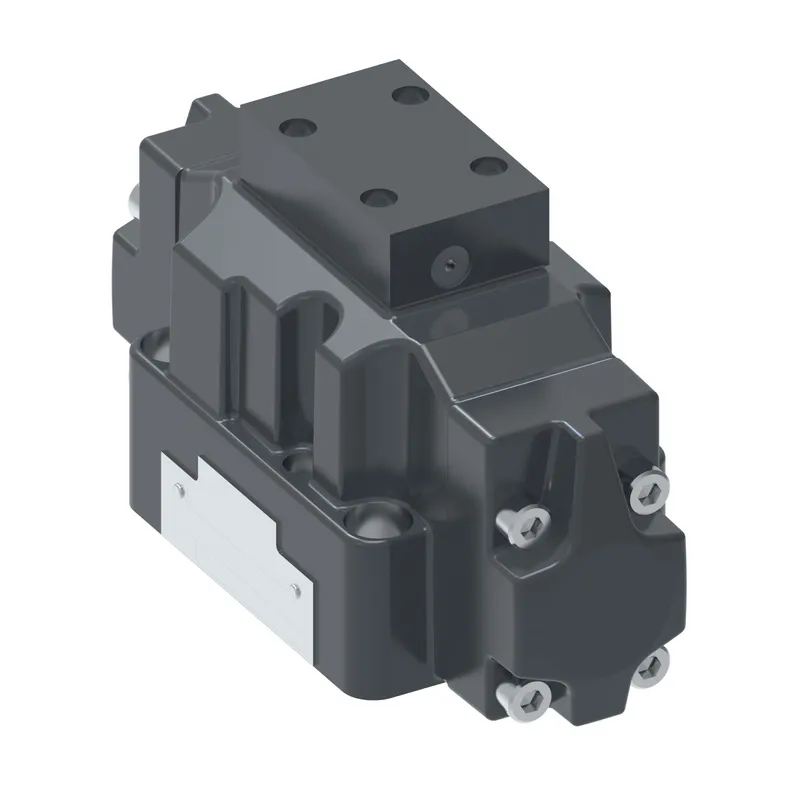

Danfoss 02-157189

KDG3V 7 2C180N E 10 EN55, KDG3V72C180NE10EN55

MPN: 02-157189
Category: Manifold directional control valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 02-157189?

Danfoss KDG3V 7 2C180N E 10 EN55, KDG3V72C180NE10EN55, manufacturer part number 02-157189. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A Port flow LPM	180.00
A Port flow USGPM	48.00
Actuation Type	Hydraulic pilot operated
B Port flow LPM	180.00
B Port flow USGPM	48.00
Brand	Vickers by Danfoss
Build orientation	None
Build type	Spring centered
Coil voltage	None
Command input	None
Communication protocol	None
Design Series	10 Series
Electrical Connection	None
Feedback sensor	No
Fluid Cleanliness	17/15/12 micron
Fluid compatibility	Antiwear hydraulic oils and non alkyl-based Phosphate Esters
Interface	ISO4401-07/NFPA D07/CETOP 7/NG16
Manual override	None
Maximum pressure BAR	350
Maximum pressure PSI	5000
Metering	Meter in / meter out
Model Code 1	KDG3V72C180NE10EN55
On board electronics	No
Performance	Standard
Product height in	4.610
Product height mm	117.094
Product length in	8.940
Product length mm	227.076
Product width in	3.650
Product width mm	92.71
ProFX compatible	No
Reducer module	No
Reverse flow check	No
Seal type	Viton
Special features	No pilot or reducer
Spool Type	ISO4401-10/NFPA D10/CETOP 10/NG32
Stage	Single stage
Symmetric flow	Yes
Valve Mount Type	Subplate
Valve type	Proportional directional
Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4

02-157189: frequently asked questions

When can 02-157189 be shipped?

02-157189 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 02-157189 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 02-157189 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 02-157189, subject to availability and destination.
