Home / Hydraulic valves / Directional control valves / Manifold directional control valves

Manifold directional control valves Parts

Danfoss

02-311035

KDG4V 3 33C30X H VM U H760, KDG4V333C30XHVMUH760

Danfoss

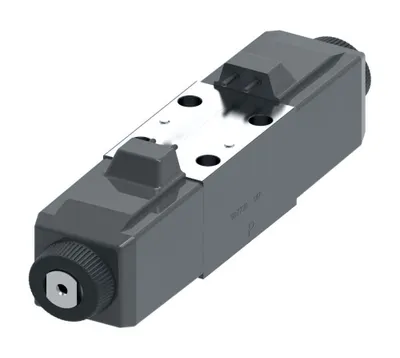

02-310982

DG4V 3 6C M P H7 60 EN96, DG4V36CMPH760EN96

Danfoss

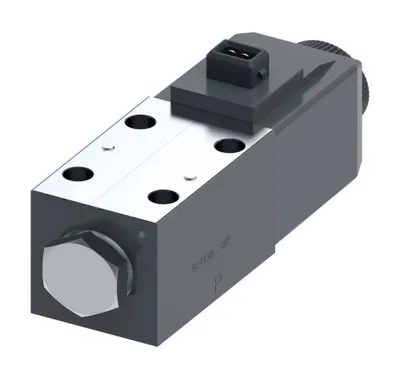

02-310952

DG4V 3 2A M KUP4D3 G7 60EN94, DG4V32AMKUP4D3G760EN94

Danfoss

02-310927

KDG4V3 33C03F H M U HA760, KDG4V333C03FHMUHA760

Danfoss

02-310920

KDG4V 3 33C30X H M U HA760, KDG4V333C30XHMUHA760

Danfoss

02-310855

KDG4V3 33C07N H MU H7 60, KDG4V333C07NHMUH760

Danfoss

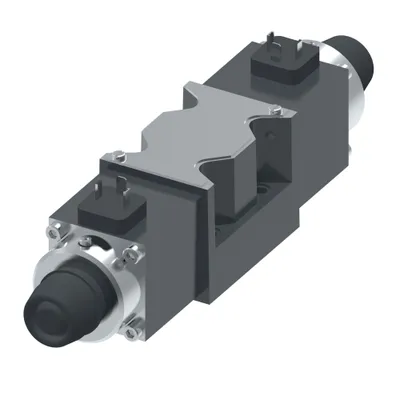

02-310763

KDG4V 5 33C30N H M U H7 30, KDG4V533C30NHMUH730

Danfoss

02-310762

KDG4V 5 2C30N H M U H7 30, KDG4V52C30NHMUH730

Danfoss

02-310761

KDG4V 3 2C28S MU H7 60, KDG4V32C28SMUH760

Danfoss

02-310718

DG4V-3-2AL-H-M-U-P7-60, DG4V32ALHMUP760

Danfoss

02-310516

DG4V 3 2BL M FW B6 60, DG4V32BLMFWB660

Danfoss

02-310484

DG4V-3-0A-M-S5-FTWL-B2-6 0, DG4V30AMS5FTWLB260

Danfoss

02-310302

DG4V-3-0B207-M-U-HH7-60, DG4V30B207MUHH760

Danfoss

02-310275

KDG4V-3S-2C15N-M-U-H5-60, KDG4V3S2C15NMUH560

Danfoss

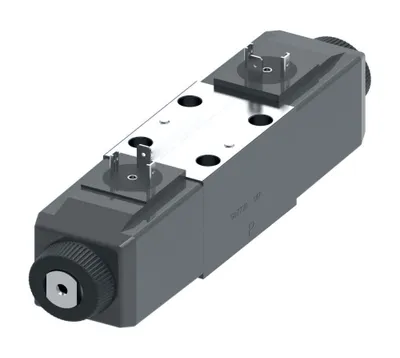

02-309901

KDG4V-3S-33C22A-H-M-U-H5-60, KDG4V3S33C22AHMUH560

Danfoss

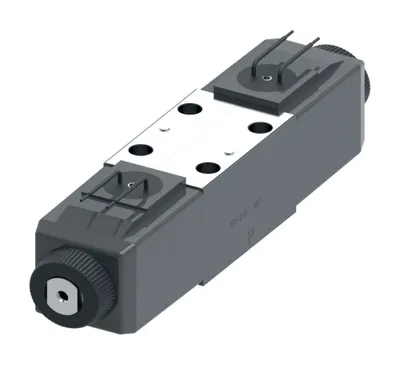

02-309749

DG4V-3-6C-M-KU-H7-60-EN4, DG4V36CMKUH760EN433

Danfoss

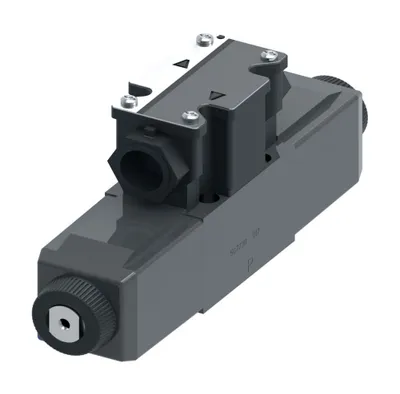

02-309139

DG4V-3-6C-M-FW-H7-60-EN21, DG4V36CMFWH760EN21

Danfoss

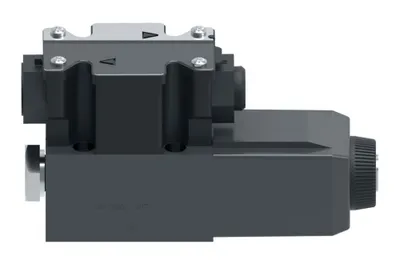

02-308544

DG4V-3-8BL-VM-FW-H7-61, DG4V38BLVMFWH761

Danfoss

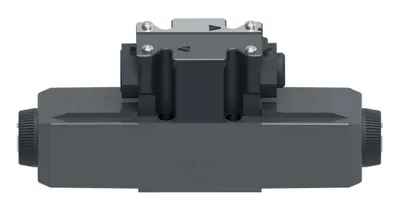

02-308508

VALVE DG4V-3-0C-M-FW-H7-60-EN21, DG4V30CMFWH760EN21

Danfoss

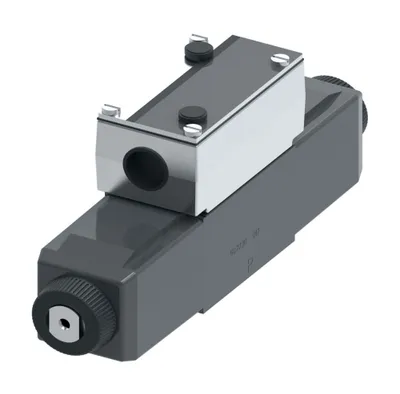

02-305134

DG4V-3-6N-M-FWL-B6-60-EN 21, DG4V36NMFWLB660EN21

Danfoss

02-304555

DG4V-3-0C-M-FW-B6-60-EN2 1, DG4V30CMFWB660EN21

Danfoss

02-304461

DG4V-3-0C-M-FWL-B6-60-EN 21, DG4V30CMFWLB660EN21

Danfoss

02-304459

DG4V 3 0B M U B6 60 EN21, DG4V30BMUB660EN21

Danfoss

02-304449

DG4V 3 8C VM FW D6 61, DG4V38CVMFWD661

Compare Manifold directional control valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code 1	Product length in	Product length mm	Spool Type	Spring Arrangement
02-311035	KDG4V333C30XHVMUH760	9.370	237.998	P blocked, A & B to tank	—
02-310982	DG4V36CMPH760EN96	8.660	219.964	Spool 6	Spring centred
02-310952	DG4V32AMKUP4D3G760EN94	6.140	155.956	Spool 2	Spring offset end to end
02-310927	KDG4V333C03FHMUHA760	9.370	237.998	P blocked, A & B to tank	—
02-310920	KDG4V333C30XHMUHA760	9.370	237.998	P blocked, A & B to tank	—
02-310855	KDG4V333C07NHMUH760	9.370	237.998	P blocked, A & B to tank	—
02-310763	KDG4V533C30NHMUH730	10.040	255.016	P blocked, A & B to tank	—
02-310762	KDG4V52C30NHMUH730	10.040	255.016	ISO4401-10/NFPA D10/CETOP 10/NG32	—
02-310761	KDG4V32C28SMUH760	9.370	237.998	ISO4401-10/NFPA D10/CETOP 10/NG32	—
02-310718	DG4V32ALHMUP760	6.140	155.956	Spool 2	Spring offset end to end LH
02-310516	DG4V32BLMFWB660	5.750	146.050	Spool 2	Spring offset end to centre LH
02-310484	DG4V30AMS5FTWLB260	5.750	146.050	Spool 0	Spring offset end to end
02-310302	DG4V30B207MUHH760	6.140	155.956	Spool 0	Spring offset end to centre
02-310275	KDG4V3S2C15NMUH560	8.640	219.456	ISO4401-10/NFPA D10/CETOP 10/NG32	—
02-309901	KDG4V3S33C22AHMUH560	8.640	219.456	P blocked, A & B to tank	—
02-309749	DG4V36CMKUH760EN433	—	—	Spool 6	Spring centred
02-309139	DG4V36CMFWH760EN21	8.660	219.964	Spool 6	Spring centred
02-308544	DG4V38BLVMFWH761	6.140	155.956	Spool 8	Spring offset end to centre LH
02-308508	DG4V30CMFWH760EN21	8.660	219.964	Spool 0	Spring centred
02-305134	DG4V36NMFWLB660EN21	5.750	146.050	Spool 6	No spring detented
02-304555	DG4V30CMFWB660EN21	7.870	199.898	Spool 0	Spring centred
02-304461	DG4V30CMFWLB660EN21	7.870	199.898	Spool 0	Spring centred
02-304459	DG4V30BMUB660EN21	5.750	146.050	Spool 0	Spring offset end to centre
02-304449	DG4V38CVMFWD661	7.870	199.898	Spool 8	Spring centred

Common to all listed parts

Stage

Single stage
