Home / Hydraulic valves / Directional control valves / Manifold directional control valves

Manifold directional control valves Parts

Danfoss

02-359602

DG4V 3 0C H M KUP4D2 H760 EN1 40, DG4V30CHMKUP4D2H760EN140

Danfoss

02-359550

DG4V 3 2A VM U SA7 60, DG4V32AVMUSA760

Danfoss

02-359546

DG4V-3-0B-M-U-EP6-60, DG4V30BMUEP660

Danfoss

02-359464

KDG5V 7 2C180N100 X M UH1 10, KDG5V72C180N100XMUH110

Danfoss

02-359424

DG4V 3 2BL M KUP4D1 H7 60, DG4V32BLMKUP4D1H760

Danfoss

02-359262

KDG5V 7 2C180N X T M U H1 10, KDG5V72C180NXTMUH110

Danfoss

02-359252

KDG5V 7 2C180N X T H M UH1 10, KDG5V72C180NXTHMUH110

Danfoss

02-359176

DG4V 3 0C M KUP4D1 H7 60EN137, DG4V30CMKUP4D1H760

Danfoss

02-359132

KDG4V 5 2C50N H M U HA730, KDG4V52C50NHMUHA730

Danfoss

02-359040

VALVE DG4V-3-8BL-VM-U-KK6-61, DG4V38BLVMUKK661

Danfoss

02-358984

KDG5V 5 33C80N VM U H1 10, KDG5V533C80NVMUH110

Danfoss

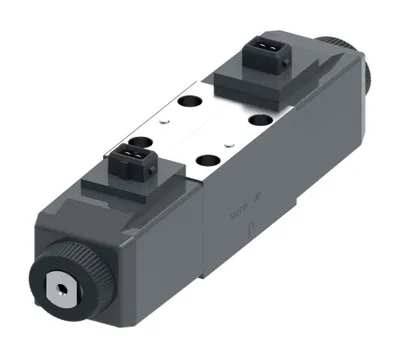

02-358921

DG4V-3-48N-VM-KUP4D2-G7-60-EN136, DG4V348NVMKUP4D2G760EN136

Danfoss

02-358920

DG4V-3-2N-M-KUP4D2-G7-60-EN136, DG4V32NMKUP4D2G760EN136

Danfoss

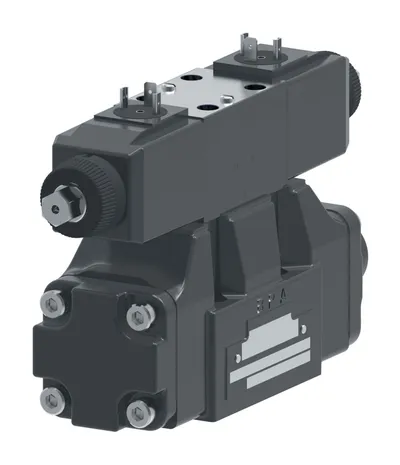

02-358897

KDG5V 5 2C90N H M U H1 10, KDG5V52C90NHMUH110

Danfoss

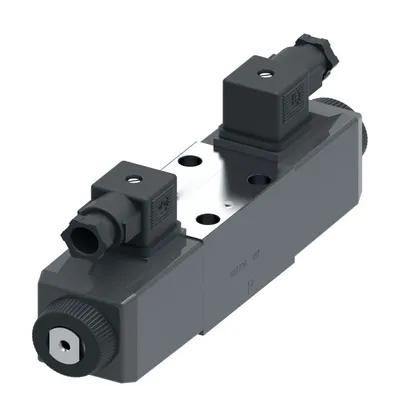

02-358781

KDG4V5 33C50N Z M U1 H730, KDG4V533C50NZMU1H730

Danfoss

02-358751

KDG5V 7 33C170N T M U HA1 10, KDG5V733C170NTMUHA110

Danfoss

02-358256

DG4V 3 2A M U B6 60 P08, DG4V32AMUB660P08

Danfoss

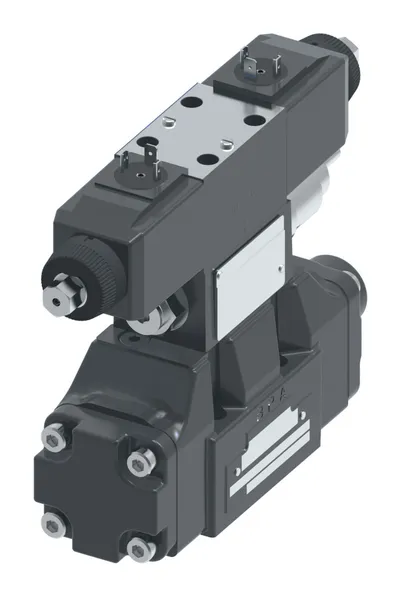

02-358195

KDG5V-5-33C60N40-X-VM-U-H1-10, KDG5V533C60N40XVMUH110

Danfoss

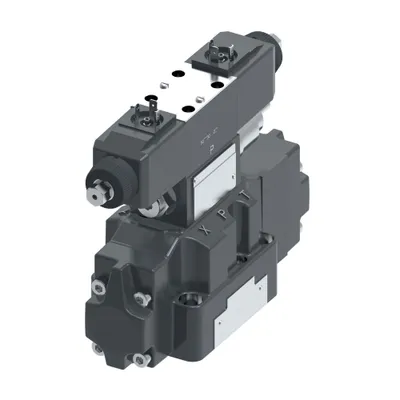

02-358168

KDG5V 7 33C130N65 X VM UH1 10, KDG5V733C130N65XVMUH110

Danfoss

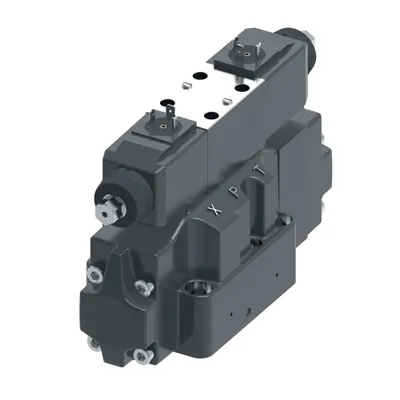

02-358129

KDG5V 7 2C180N100 E T MU H1 1 0, KDG5V72C180N100ETMUH110

Danfoss

02-358044

KDG5V 7 33C170N E H M UH1 10, KDG5V733C170NEHMUH110

Danfoss

02-356879

KDG4V-3S-2C19N-M-U1-G5-6 0, KDG4V3S2C19NMU1G560

Danfoss

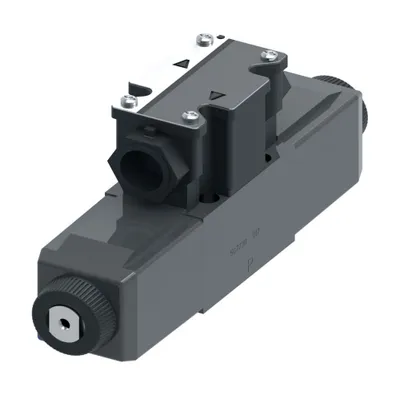

02-356592

DG4V-3-2C-M-FW-G7-60-EN2 1, DG4V32CMFWG760EN21

Danfoss

02-354981

DG4V-3-24A-M-FTWL-D7-H7- 60, DG4V324AMFTWLD7H760

Compare Manifold directional control valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code 1	Product height in	Product length in	Product length mm	Spool Type
02-359602	DG4V30CHMKUP4D2H760EN140	3.420	8.660	219.964	Spool 0
02-359550	DG4V32AVMUSA760	3.570	8.660	219.964	Spool 2
02-359546	DG4V30BMUEP660	3.420	5.750	146.050	Spool 0
02-359464	KDG5V72C180N100XMUH110	8.800	9.600	243.840	ISO4401-10/NFPA D10/CETOP 10/NG32
02-359424	DG4V32BLMKUP4D1H760	3.420	8.660	219.964	Spool 2
02-359262	KDG5V72C180NXTMUH110	8.800	9.600	243.840	ISO4401-10/NFPA D10/CETOP 10/NG32
02-359252	KDG5V72C180NXTHMUH110	8.800	9.600	243.840	ISO4401-10/NFPA D10/CETOP 10/NG32
02-359176	DG4V30CMKUP4D1H760	3.570	5.750	146.050	Spool 0
02-359132	KDG4V52C50NHMUHA730	4.180	10.040	255.016	ISO4401-10/NFPA D10/CETOP 10/NG32
02-359040	DG4V38BLVMUKK661	2.580	5.750	146.050	Spool 8
02-358984	KDG5V533C80NVMUH110	6.900	9.400	238.760	Bleed A and B to T
02-358921	DG4V348NVMKUP4D2G760EN136	3.570	5.750	146.050	Spool 48
02-358920	DG4V32NMKUP4D2G760EN136	3.420	8.660	219.964	Spool 2
02-358897	KDG5V52C90NHMUH110	6.900	9.400	238.760	ISO4401-10/NFPA D10/CETOP 10/NG32
02-358781	KDG4V533C50NZMU1H730	4.180	10.040	255.016	P blocked, A & B to tank
02-358751	KDG5V733C170NTMUHA110	7.200	9.400	238.760	Bleed A and B to T
02-358256	DG4V32AMUB660P08	3.420	8.660	219.964	Spool 2
02-358195	KDG5V533C60N40XVMUH110	8.470	9.600	243.840	Bleed A and B to T
02-358168	KDG5V733C130N65XVMUH110	8.800	9.600	243.840	Bleed A and B to T
02-358129	KDG5V72C180N100ETMUH110	7.200	9.400	238.760	ISO4401-10/NFPA D10/CETOP 10/NG32
02-358044	KDG5V733C170NEHMUH110	7.200	9.400	238.760	Bleed A and B to T
02-356879	KDG4V3S2C19NMU1G560	3.400	9.370	237.998	ISO4401-10/NFPA D10/CETOP 10/NG32
02-356592	DG4V32CMFWG760EN21	3.570	6.140	155.956	Spool 2
02-354981	DG4V324AMFTWLD7H760	3.420	6.140	155.956	Spool 24

Common to all listed parts

Working temp max C	70
Working temp max F	158
Working temp min C	-20
Working temp min F	-4
