What is the Danfoss 02-358897?

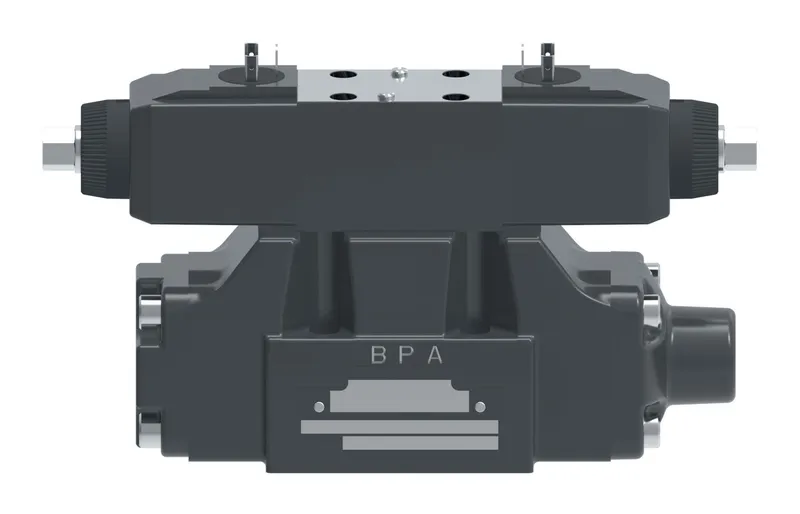

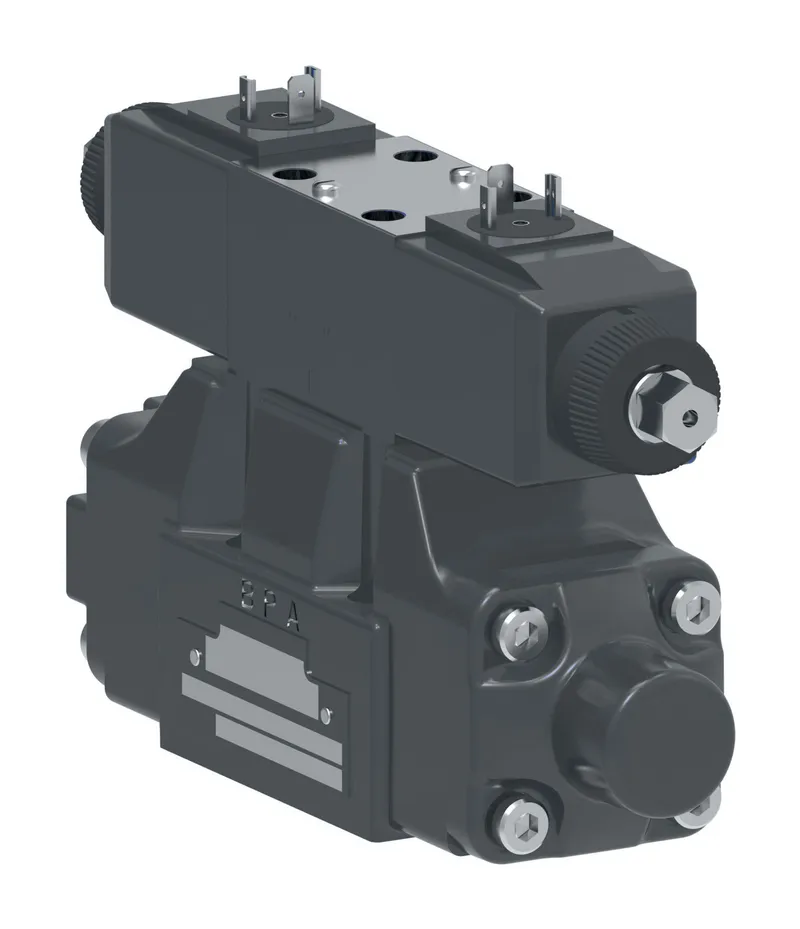

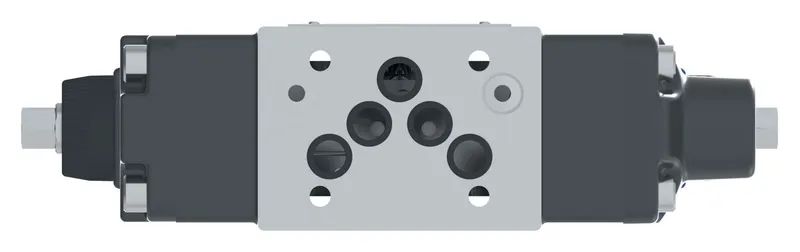

Danfoss KDG5V 5 2C90N H M U H1 10, KDG5V52C90NHMUH110, manufacturer part number 02-358897. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A Port flow LPM90.00
A Port flow USGPM24.00
Actuation TypeSolenoid controlled pilot operated
B Port flow LPM90.00
B Port flow USGPM24.00
BrandVickers by Danfoss
Build orientationStandard as per ANSI B93 9
Build typeSpring centered
Coil voltage24 Volt DC
Command inputNone
Communication protocolNone
Design Series10 Series
Electrical ConnectionISO 4400 (DIN 43650) connector
Feedback sensorNo
Fluid Cleanliness17/15/12 micron
Fluid compatibilityAntiwear hydraulic oils and non alkyl-based Phosphate Esters
InterfaceISO4401-05/NFPA D05/CETOP 5/NG10
Manual overrideWater-resistant
Maximum pressure BAR200
Maximum pressure PSI2900
MeteringMeter in / meter out
Model Code 1KDG5V52C90NHMUH110
On board electronicsNo
PerformanceStandard
Pilot drainExternal
Pilot supplyInternal
Product height in6.900
Product height mm175.260
Product length in9.400
Product length mm238.760
Product width in2.770
Product width mm70.358
ProFX compatibleNo
Reducer moduleNo
Reverse flow checkNo
Seal typeViton
Special featuresNone
Spool TypeISO4401-10/NFPA D10/CETOP 10/NG32
StageTwo stage
Symmetric flowYes
Tank port rating BAR210
Tank port rating PSI3000
Valve Mount TypeSubplate
Valve typeProportional directional
Working temp max C70
Working temp max F158
Working temp min C-20
Working temp min F-4
