Solenoid coils Parts

Siemens

3RT2944-5AC21

Magnetic coil 24 V AC, 50/60 Hz, for contactors 3RT2.4.-.A

Siemens

3RT2944-5AB01

Magnetic coil 24 V AC, 50 Hz, for contactors 3RT2.4.-.A

Siemens

3RT2924-5AG21

Magnetic coil 110 V AC, 50/60 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AF01

Magnetic coil 110 V AC, 50 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AD21

Magnetic coil 42 V AC, 50/60 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AK61

Magnetic coil 110 V AC, 50 Hz / 120 V, 60 Hz

Siemens

3RT2924-5AH21

Magnetic coil 48 V AC, 50/60 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AH01

Magnetic coil 48 V AC, 50 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AG61

Magnetic coil 100 V AC, 50/60 Hz / 110 V, 60 Hz

Siemens

3RT2924-5AD01

Magnetic coil 42 V AC, 50 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AC21

Magnetic coil 24 V AC, 50/60 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AC11

Magnetic coil 24 V AC, 60 Hz for contactors 3RT2023-.A

Siemens

3RT2924-5AM11

Magnetic coil 208 V AC, 60 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AL21

Magnetic coil 230 V AC, 50/60 Hz, for contactors 3RT2023-.A

Siemens

3RT2944-5AT61

Magnetic coil 600 V AC, 60 Hz, for contactors 3RT2.4.-.A

Siemens

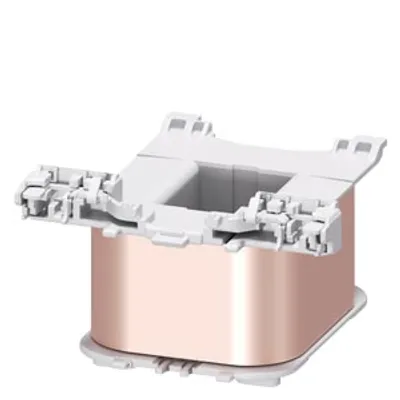

3RT2944-5AR61

Magnetic coil 400 V AC, 50 Hz / 440 V, 60 Hz

Siemens

3RT2924-5AV01

Magnetic coil 400 V AC, 50 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AU61

Magnetic coil 277 V AC, 60 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AU01

Magnetic coil 240 V AC, 50 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AT61

Magnetic coil 600 V AC, 60 Hz, for contactors 3RT2023-.A

Siemens

3RT2924-5AR61

Magnetic coil 400 V AC, 50/60 Hz / 440 V, 60 Hz

Siemens

3RT2924-5AR11

Magnetic coil 440 V AC, 60 Hz, for contactors 3RT2023-.A

Siemens

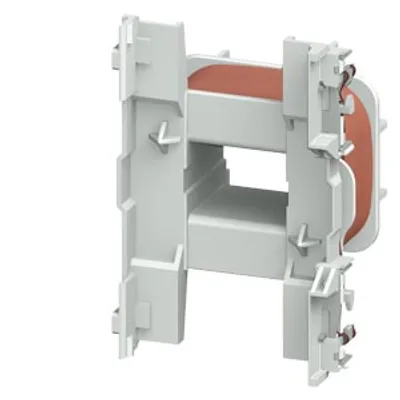

3RT2926-5AL21

Magnetic coil 230 V AC, 50/60 Hz, for contactors 3RT2325-.A

Siemens

3RT2926-5AH01

Magnetic coil 48 V AC, 50 Hz, for contactors 3RT2325-.A

Compare Solenoid coils

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Net Weight	control supply voltage 1 at AC — at 50 Hz rated value	apparent pick-up power of magnet coil at AC — at 50 Hz	apparent pick-up power of magnet coil at AC — at 60 Hz	power loss [V∙A] of magnet coil at AC typical
3RT2944-5AC21	0.142 kg	24 V	348 VA	296 VA	—
3RT2944-5AB01	0.143 kg	24 V	296 VA	—	—
3RT2924-5AG21	0.065 kg	110 V	65 VA	73 VA	7.9 VA
3RT2924-5AF01	0.065 kg	110 V	65 VA	73 VA	7.6 VA
3RT2924-5AD21	0.074 kg	42 V	65 VA	73 VA	7.9 VA
3RT2924-5AK61	0.067 kg	110 V	65 VA	73 VA	8.5 VA
3RT2924-5AH21	0.066 kg	48 V	65 VA	73 VA	7.9 VA
3RT2924-5AH01	0.068 kg	48 V	65 VA	73 VA	7.6 VA
3RT2924-5AG61	0.064 kg	100 V	65 VA	73 VA	8.5 VA
3RT2924-5AD01	0.067 kg	42 V	65 VA	73 VA	7.6 VA
3RT2924-5AC21	0.065 kg	24 V	65 VA	73 VA	7.9 VA
3RT2924-5AC11	0.061 kg	—	65 VA	73 VA	—
3RT2924-5AL21	0.064 kg	230 V	65 VA	73 VA	7.9 VA
3RT2944-5AT61	0.139 kg	—	—	326 VA	—
3RT2944-5AR61	0.146 kg	400 V	348 VA	296 VA	—
3RT2924-5AV01	0.067 kg	400 V	65 VA	73 VA	7.6 VA
3RT2924-5AU61	0.065 kg	—	65 VA	73 VA	7.6 VA
3RT2924-5AU01	0.07 kg	240 V	65 VA	73 VA	7.6 VA
3RT2924-5AT61	0.065 kg	600 V	65 VA	73 VA	8.5 VA
3RT2924-5AR61	0.061 kg	400 V	65 V·A	73 V·A	8.5 V·A
3RT2924-5AR11	0.063 kg	440 V	65 VA	73 VA	7.6 VA
3RT2926-5AL21	0.074 kg	230 V	77 VA	87 VA	10.5 VA
3RT2926-5AH01	0.077 kg	48 V	77 VA	87 VA	9.8 VA

Common to all listed parts

product category	Solenoid coils
product designation	Magnet coil
product type designation	3RT29
type of voltage of the control supply voltage	AC
