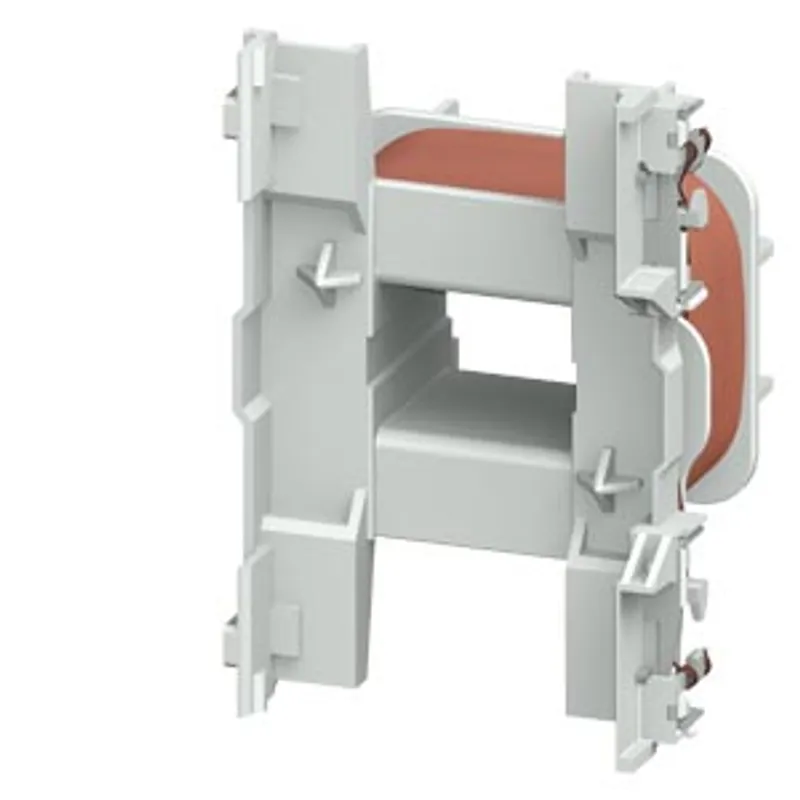

Siemens 3RT2924-5AK61
Magnetic coil 110 V AC, 50 Hz / 120 V, 60 Hz, for contactors 3RT2023-.A, 3RT2024-.A and 3RT2025-.A
- MPN
- 3RT2924-5AK61
- Category
- Solenoid coils
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT2924-5AK61?
magnetic coil 110 V AC, 50 Hz / 120 V, 60 Hz, for contactors 3RT2023-.A, 3RT2024-.A and 3RT2025-.A
Specifications
General
| product brand name | SIRIUS |
| product category | Solenoid coils |
| product designation | Magnet coil |
| product type designation | 3RT29 |
General technical data
| power loss [V∙A] of magnet coil at AC typical | 8.5 VA |
| Substance Prohibitance (day/month/year) | 10/01/2009 |
| Net Weight | 0.067 kg |
| type of voltage of the control supply voltage | AC |
| control supply voltage 1 at AC — at 50 Hz rated value | 110 V |
| control supply voltage 1 at AC — at 60 Hz rated value | 120 V |
| operating range factor control supply voltage rated value of magnet coil at AC — at 50 Hz | 0.8 ... 1.1 |
| operating range factor control supply voltage rated value of magnet coil at AC — at 60 Hz | 0.85 ... 1.1 |
| apparent pick-up power of magnet coil at AC — at 50 Hz | 65 VA |
| apparent pick-up power of magnet coil at AC — at 60 Hz | 73 VA |
| inductive power factor with closing power of the coil — at 50 Hz | 0.82 |
| inductive power factor with closing power of the coil — at 60 Hz | 0.76 |
| apparent holding power of magnet coil at AC — at 50 Hz | 7.6 VA |
| apparent holding power of magnet coil at AC — at 60 Hz | 7.2 VA |
| inductive power factor with the holding power of the coil — at 50 Hz | 0.25 |
| inductive power factor with the holding power of the coil — at 60 Hz | 0.28 |
