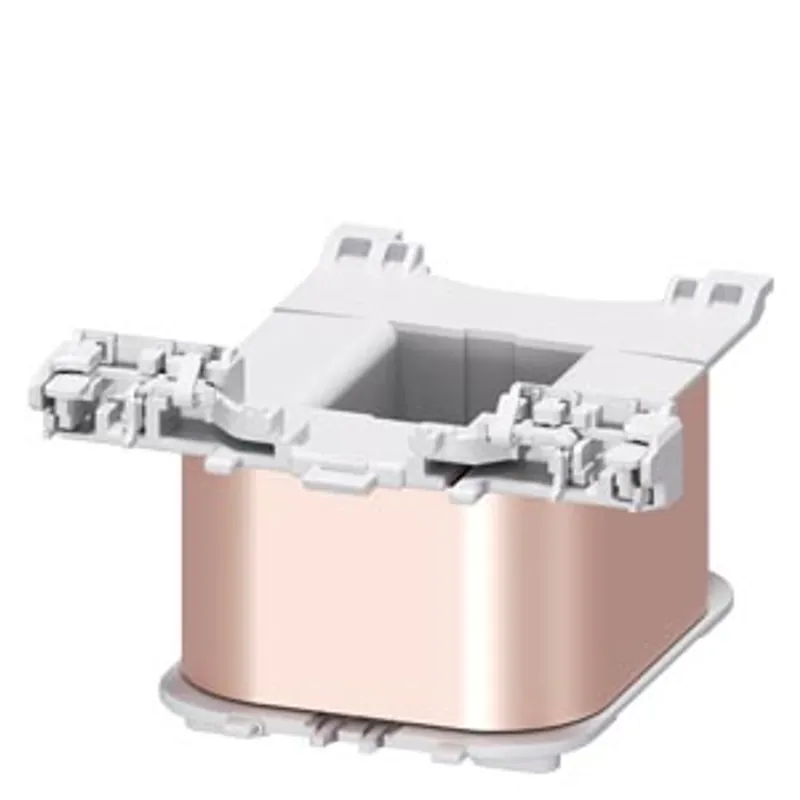

Siemens 3RT2944-5AR61
Magnetic coil 400 V AC, 50 Hz / 440 V, 60 Hz, for contactors 3RT2.4.-.A
- MPN
- 3RT2944-5AR61
- Category
- Solenoid coils
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 3RT2944-5AR61?
magnetic coil 400 V AC, 50 Hz / 440 V, 60 Hz, for contactors 3RT2.4.-.A
Specifications
General
| product brand name | SIRIUS |
| product category | Solenoid coils |
| product designation | Magnet coil |
| product type designation | 3RT29 |
General technical data
| Substance Prohibitance (day/month/year) | 10/01/2014 |
| Net Weight | 0.146 kg |
| type of voltage of the control supply voltage | AC |
| control supply voltage 1 at AC — at 50 Hz rated value | 400 V |
| control supply voltage 1 at AC — at 60 Hz | 400 ... 440 V |
| operating range factor control supply voltage rated value of magnet coil at AC — at 50 Hz | 0.8 ... 1.1 |
| operating range factor control supply voltage rated value of magnet coil at AC — at 60 Hz | 0.85 ... 1.1 |
| apparent pick-up power of magnet coil at AC — at 50 Hz | 348 VA |
| apparent pick-up power of magnet coil at AC — at 60 Hz | 296 VA |
| inductive power factor with closing power of the coil — at 50 Hz | 0.62 |
| inductive power factor with closing power of the coil — at 60 Hz | 0.55 |
| apparent holding power of magnet coil at AC — at 50 Hz | 25 VA |
| apparent holding power of magnet coil at AC — at 60 Hz | 18 VA |
| inductive power factor with the holding power of the coil — at 50 Hz | 0.35 |
| inductive power factor with the holding power of the coil — at 60 Hz | 0.41 |
