Home / Siemens / Solenoid coils / Siemens 3RT2944-5AB01

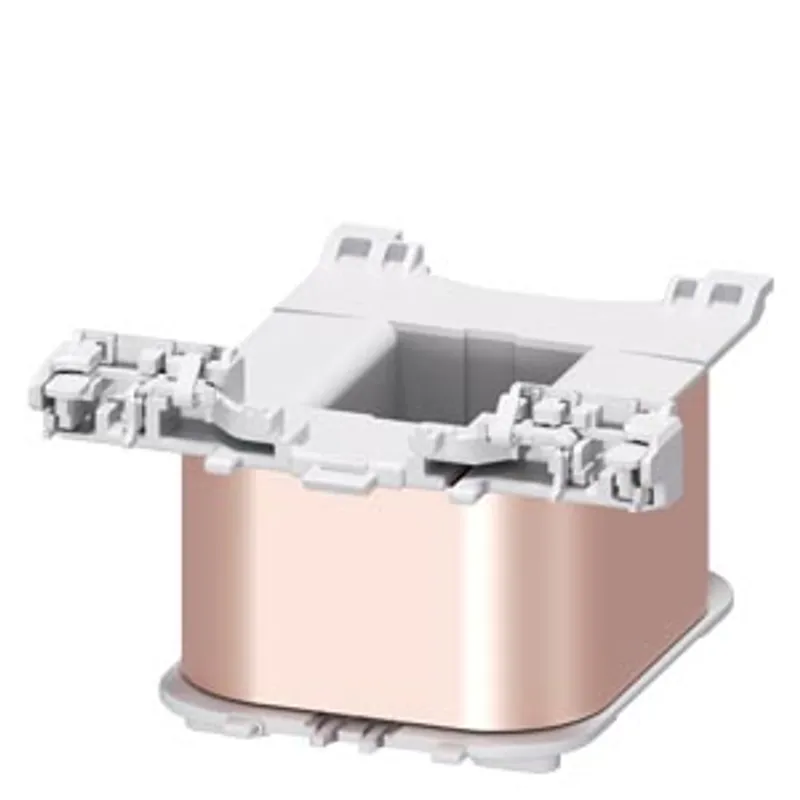

Siemens 3RT2944-5AB01

Magnetic coil 24 V AC, 50 Hz, for contactors 3RT2.4.-.A

MPN: 3RT2944-5AB01
Category: Solenoid coils

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 3RT2944-5AB01?

magnetic coil 24 V AC, 50 Hz, for contactors 3RT2.4.-.A

Specifications

General

product brand name	SIRIUS
product category	Solenoid coils
product designation	Magnet coil
product type designation	3RT29

General technical data

Substance Prohibitance (day/month/year)	10/01/2014
Net Weight	0.143 kg
type of voltage of the control supply voltage	AC
control supply voltage 1 at AC — at 50 Hz rated value	24 V
operating range factor control supply voltage rated value of magnet coil at AC — at 50 Hz	0.8 ... 1.1
apparent pick-up power of magnet coil at AC — at 50 Hz	296 VA
inductive power factor with closing power of the coil — at 50 Hz	0.61
apparent holding power of magnet coil at AC — at 50 Hz	19 VA
inductive power factor with the holding power of the coil — at 50 Hz	0.38

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 3RT2944-5AB01PDF

3RT2944-5AB01: frequently asked questions

When can 3RT2944-5AB01 be shipped?

3RT2944-5AB01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3RT2944-5AB01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3RT2944-5AB01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3RT2944-5AB01, subject to availability and destination.
