Wall-mounted drive for water and wastewater Parts
Compare Wall-mounted drive for water and wastewater
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product Net Weight | Product Net Depth / Length | Output Current, Normal Use (In) | Output Current, Light-Overload Use (ILD) | Output Power, Normal Use (Pn) |
|---|---|---|---|---|---|
| ACQ580-01-073A-4+0J400 | 19 kg | 258 mm | 73 A | 68.4 A | 37 kW |
| ACQ580-01-059A-2+P918 | 26 lb | 9.01 in | — | — | — |
| ACQ531-01-04A1-4+0J404 | 4 kg | 223 mm | 4 A | 3.8 A | 1.5 kW |
| ACQ580-01-046A-4+B056 | 14.9 kg | 228 mm | 45 A | 42.8 A | 22 kW |
| ACQ580-01-032A-2+B056 | 6.8 kg, 15.0 lb | 239 mm, 9.409 in | 31.2 A | 30.8 A | 7.5 kW |
| ACQ580-01-06A7-2+B063 | 12.70 kg, 28.00 lb | 249 mm, 9.803 in | 6.7 A | 6.6 A | 1.1 kW |
| ACQ580-01-026A-4 | 9.1 kg | 223 mm | 25 A | 23.8 A | 11 kW |
| ACQ580-01-05A7-4 | 4.6 kg | 223 mm | 5.6 A | 5.3 A | 2.2 kW |
| ACQ580-01-12A7-4+B056 | 4.6 kg | 223 mm | 12.6 A | 12 A | 5.5 kW |
| ACQ531-01-293A-4 | 62.8 kg | 393 mm | 293 A | 278 A | 160 kW |
| ACQ531-01-246A-4+0J404 | 62.8 kg | 393 mm | 246 A | 234 A | 132 kW |
| ACQ531-01-363A-4+0J404 | 84.8 kg | 418 mm | 363 A | 345 A | 200 kW |
| ACQ531-01-430A-4+0J404 | 84.8 kg | 418 mm | 430 A | 400 A | 250 kW |

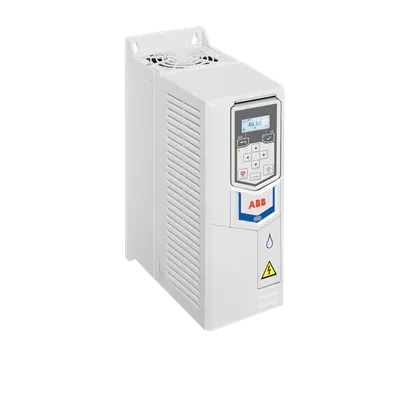

| ACQ531-01-026A-4+J400 | 6 kg | 229 mm | 25 A | 23.8 A | 11 kW |
| ACQ531-01-293A-4+0J404 | 62.8 kg | 393 mm | 293 A | 278 A | 160 kW |
| ACQ580-01-276A-2+B056 | 77 kg, 170 lb | 452 mm, 17.795 in | 276 A | 273 A | 75 kW |
| ACQ580-01-02A1-4 | 10.1 lb | 8.78 in | — | — | — |
| ACQ580-01-07A6-4 | 10.1 lb | 8.78 in | — | — | — |
| ACQ580-01-014A-4 | 14.6 lb | 9 in | — | — | — |
| ACQ580-01-03A0-4 | 10.1 lb | 8.78 in | — | — | — |
| ACQ580-01-03A5-4 | 10.1 lb | 8.78 in | — | — | — |
| ACQ580-01-027A-4 | 26 lb | 9.01 in | — | — | — |
| ACQ580-01-023A-4 | 14.6 lb | 9 in | — | — | — |
| ACQ580-01-04A8-4 | 10.1 lb | 8.78 in | — | — | — |
Common to all listed parts
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Number of Phases | 3-phase |
| Efficiency Level | IE2 |
