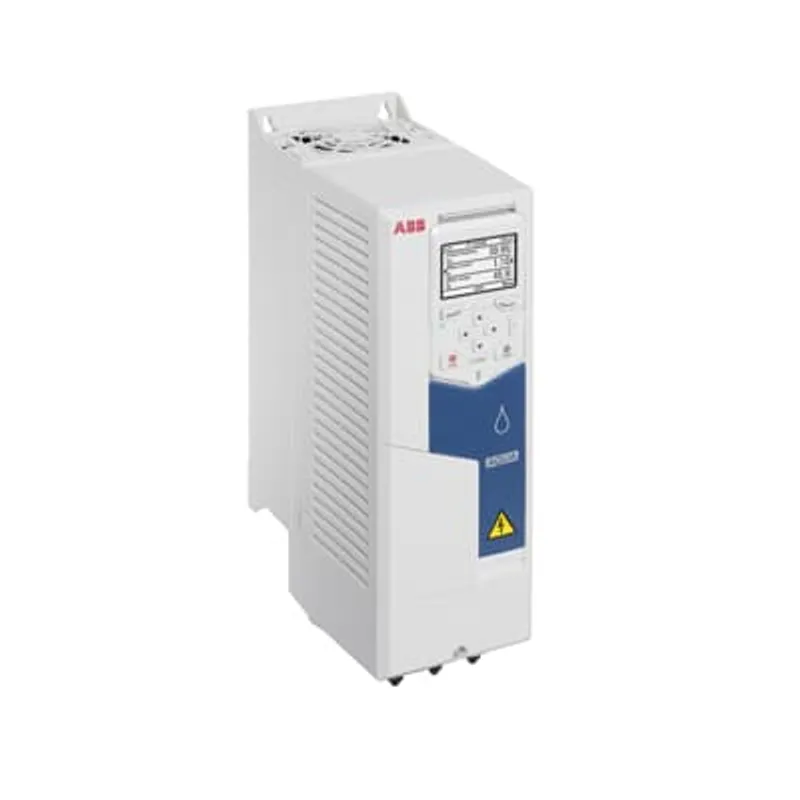

ABB ACQ580-01-05A7-4

LV AC wall-mounted drive for water and wastewater, IEC: Pn 2.2 kW, 5.6 A ( )

MPN: ACQ580-01-05A7-4
Category: Wall-mounted drive for water and wastewater

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the ABB ACQ580-01-05A7-4?

The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps, and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in an IP21 enclosure as standard and can be installed on the wall. In addition, IP55 and flange mounting units are available.

Specifications

Customs Tariff Number	85044099
HS Code	850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters
Invoice Description	ACQ580-01-05A7-4 PN: 2.2kW, IN: 5.6A
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Quote Only	No
Selling Unit of Measure	piece
Product Net Weight	4.6 kg
Product Net Depth / Length	223 mm
Product Net Height	303 mm
Product Net Width	125 mm
Package Level 1 Units	0 carton
Number of Phases	3-phase
Degree of Protection	IP21
Enclosure Type NEMA	Type1
Frequency (f)	47.5 ... 63 Hz
Frame Size	R1
Input Voltage (Uin)	380 … 480 V
Mounting Type	Wall-mounted_NO UNIT$
Output Current, Normal Use (In)	5.6 A
Output Current, Light-Overload Use (ILD)	5.3 A
Output Current, Heavy-Duty Use (IHD)	4 A
Output Power, Normal Use (Pn)	2.2 kW
Output Power, Light-Overload Use (PLD)	2.2 kW
Output Power, Heavy-Duty Use (PHD)	1.5 kW
Efficiency Level	IE2
WEEE Category	Product Not in WEEE Scope
UNSPSC	39122001
