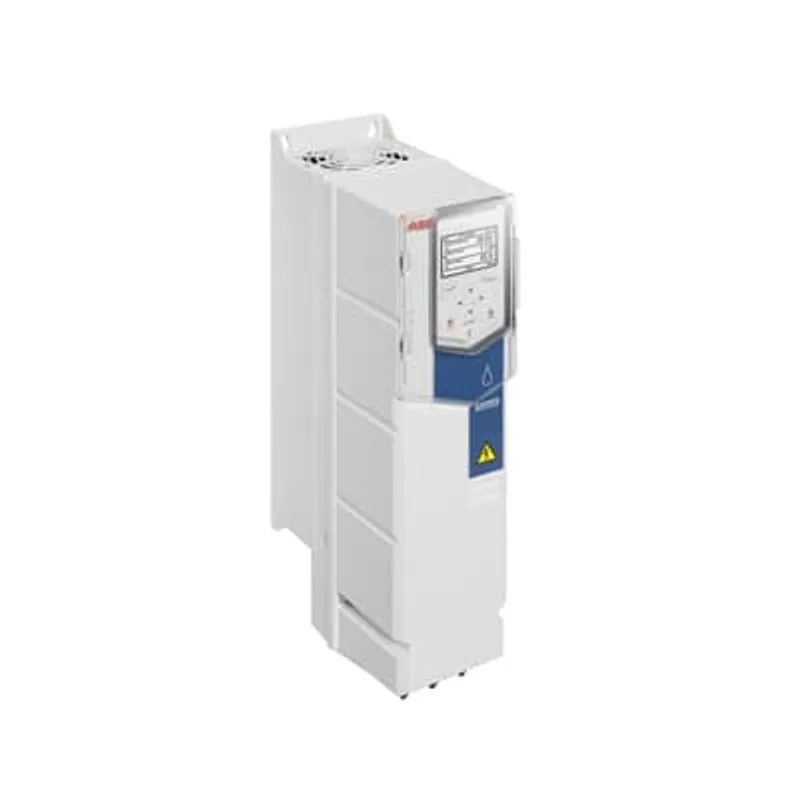

ABB ACQ580-01-032A-2+B056
LV AC wall-mounted drive for water and wastewater, IEC: Pn 7.5 kW, 31.2 A, 230 V ( )
- MPN
- ACQ580-01-032A-2+B056
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB ACQ580-01-032A-2+B056?
The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall- mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean. Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth® control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Specifications
Specifications
| Customs Tariff Number | 850440 |
| HS Code | 850440 -- ELECTRICAL MACHINERY AND EQUIPMENT AND PARTS THEREOF; SOUND RECORDERS AND REPRODUCERS, TELEVISION IMAGE AND SOUND RECORDERS AND REPRODUCERS, AND PARTS AND ACCESSORIES OF SUCH ARTICLES;Electrical transformers, static converters (for example, rectifiers) and inductors;Static converters |
| Invoice Description | ACQ580-01-032A-2+B056 PN: 7.5 kW, IN: 31 A |
| Made To Order | Yes |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
| Quote Only | No |
| Selling Unit of Measure | piece |
| Product Net Weight | 6.8 kg, 15.0 lb |
| Product Net Depth / Length | 239 mm, 9.409 in |
| Product Net Height | 503 mm, 19.803 in |
| Product Net Width | 128 mm, 5.039 in |
| Package Level 1 Depth / Length | 644 mm, 25.35 in |
| Package Level 1 Height | 325 mm, 12.80 in |
| Package Level 1 Width | 220 mm, 8.66 in |
| Package Level 1 Units | 1 carton |
| Number of Phases | 3-phase |
| Degree of Protection | IP55 |
| Enclosure Type NEMA | Type12 |
| Altitude | 4000 m |
| Operating Humidity (RHamb) | 5 ... 95 |
| Power Factor | 0.98 |
| Sound dB (A) | 64 dB(A) |
| Multiple Battery Information | Lithium Coin; CR2032; 220 mAh; 3 V; 1 pc; 3 g |
| Frequency (f) | 47.5 ... 63 Hz |
| Frame Size | R2 |
| Input Voltage (Uin) | 200 ... 240 V |
| Mounting Type | Wall-mounted |
| Communication Protocol | CAN, DeviceNet, EtherNet/IP, MODBUS, Other Bus Systems, PROFIBUS, PROFINET IO, TCP/IP |
| Number of Hardware Interfaces | Industrial Ethernet 0, Other 2, Parallel 2, PROFINET 0, RS-232 0, RS-422 0, RS-485 1, Serial TTY 0, USB 1 |
| Includes | Control unit, PC connection |
| Analog Inputs | 2 |
| Analog Outputs | 2 |
| Number of Digital In/Outputs | 6 / 3 |
| Output Current, Normal Use (In) | 31.2 A |
| Output Current, Light-Overload Use (ILD) | 30.8 A |
| Output Current, Heavy-Duty Use (IHD) | 24.2 A |
| Output Power, Normal Use (Pn) | 7.5 kW |
| Output Power, Light-Overload Use (PLD) | 7.5 kW |
| Output Power, Heavy-Duty Use (PHD) | 5.5 kW |
| Power Consumption (@Pcons) | 359 W |
| Apparent Power Output | 12 kV·A |
| Efficiency Level | IE2 |
| Standby Loss | 14 W |
| Temperature Rating | Maximum 40 °C, Minimum -15 °C |
| Declaration of Conformity - CE | ACS580, ACH580 and ACQ580 EU DoC |
| REACH Date | 20250905 |
| REACH Declaration | REACH SVHC-250 declaration |
| REACH Information | True - contains substances > 0.1 mass percentage |
| RoHS Date | 20240508 |
| RoHS Declaration | ACS580, ACH580 and ACQ580 EU DoC |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | cf2353ee-9777-4c0e-a5fb-5527ed389255 Finland |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| ETIM 9 | EC001857 - Frequency converter =< 1 kV |
| ETIM 10 | EC001857 - Frequency converter =< 1 kV |
| UNSPSC | 39122001 |
ACQ580-01-032A-2+B056: frequently asked questions
When can ACQ580-01-032A-2+B056 be shipped?
ACQ580-01-032A-2+B056 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ACQ580-01-032A-2+B056 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ACQ580-01-032A-2+B056 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ACQ580-01-032A-2+B056, subject to availability and destination.
