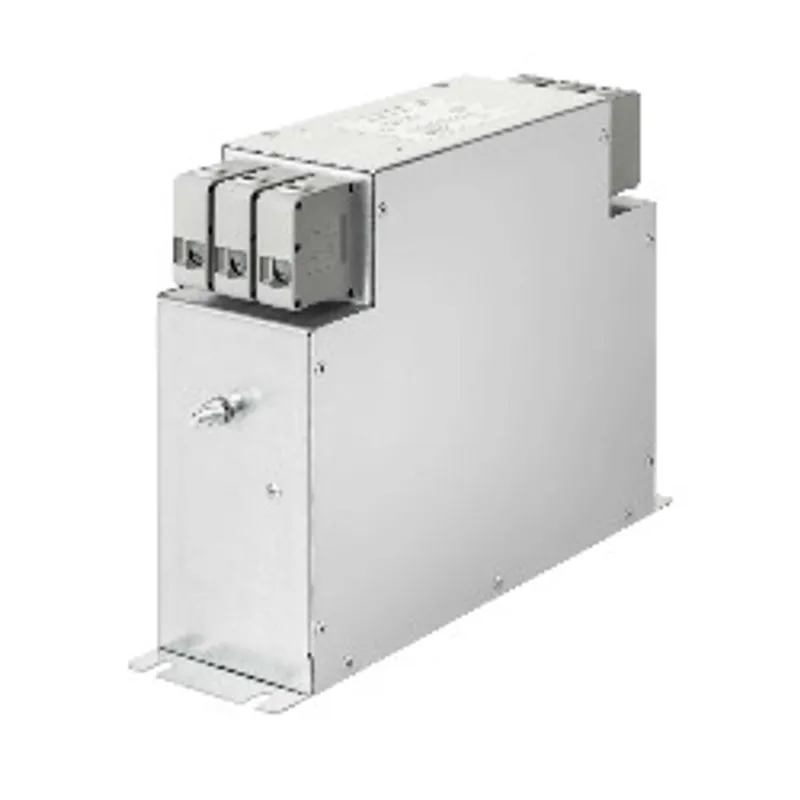

B&R 8EF0160H300.1-1

ACOPOS P3 passive line filter, 16 A, 3x 480 VAC, 50/60 Hz

MPN: 8EF0160H300.1-1
Category: Passive line filter

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 8EF0160H300.1-1?

ACOPOS P3 passive line filter, 16 A, 3x 480 VAC, 50/60 Hz, IP20, low leakage

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	UR E493879
Cooling and mounting type	Wall mounting

Mains connection

Reduction of continuous current depending on ambient temperature – Starting at 50°C	0.32 A eff /K
Reduction of continuous current depending on installation elevation – Starting at 1000 m above sea level	0.8 A eff per 1000 m
Variant – On mains	No
Variant – On device	No
Variant – L1, L2, L3 and L1´, L2´, L3´	Terminals
Variant – PE	M5 threaded bolt
Terminal connection cross section – With wire end sleeve	0.5 to 6 mm²; 20 - 8 AWG
Permissible network configurations	TT, TNDelta/Wye with grounded wye neutral" in the USA."> (note: TT and TN power systems are commonly referred to as)
Mains input voltageWiring".">	1x 110 - 230 VAC ±10%; 3x 200 - 480 VAC ±10% (note: For wiring for single-phase power supply, see section)
Frequency	50/60 Hz ±5%
SCCR	5 kA
Mains fuse protection	Max. 45 A (gG per IEC 60269-1 or class J non-delayed per UL 248-8); Max. 36 A (class J time-delayed per UL 248-8); Max. 32 A (LS per IEC 60947-2 characteristic C or UL 489)
Continuous current	16 A eff (note: Valid under the following conditions: 3x 480 VAC mains input voltage, 50°C ambient temperature, cos phi = 0.8. The exact value depends on the application.)
Peak current	24 A eff
Power dissipation	Typ. 10.8 W (note: Valid under the following conditions: 25°C ambient temperature, frequency 50 Hz.)
Line filter per EN 61800-3, category C3	Yes

Electrical properties

Discharge capacitance	0.1 µF
Leakage current	1.95 mA

Operating conditions

Permissible mounting orientations – Hanging vertically	Yes
Permissible mounting orientations – Horizontal, face up	Yes
Permissible mounting orientations – Standing horizontally	No
Installation elevation above sea level – Nominal	0 to 1000 m
Installation elevation above sea level – Maximum	4000 m (note: Continuous operation at an installation elevation of 1000 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account.)
Pollution degree per IEC 60664-1	2
Overvoltage category per IEC 60939-3	II
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Nominal	-25 to 40°C
Temperature – Maximum	55°C (note: Continuous operation at an ambient temperature of 40°C to max. 55°C is possible taking the specified reduction of continuous torque into account, but this results in premature aging of components.)
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	Max. 93%, non-condensing (note: Specifications per IEC 60068-1.)
Relative humidity – Storage	Max. 93%, non-condensing (note: Specifications per IEC 60068-1.)
Relative humidity – Transport	Max. 93%, non-condensing (note: Specifications per IEC 60068-1.)

Mechanical properties

Dimensions – Width	55 mm
Dimensions – Height	230 mm
Dimensions – Depth	160 mm
Weight	1.5 kg
