PanelSeT TBP Parts
Schneider Electric

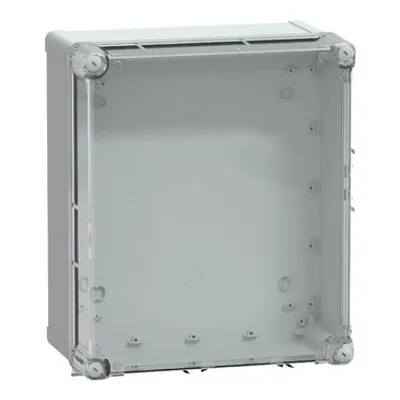

NSYTBP342916HTPC box IP66 IK08 RAL7035 Int.H325W275D160 Ext.H341W291D168mm. Transp.cover H60
Schneider Electric

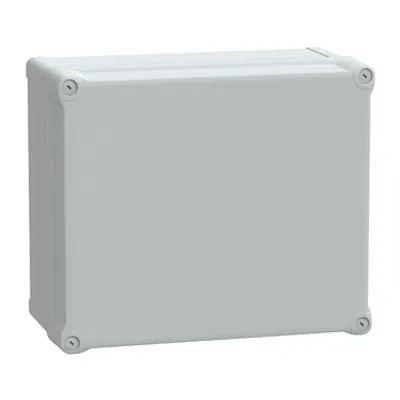

NSYTBP342916HPC box IP66 IK08 RAL7035 Int.H325W275D160 Ext.H341W291D168 opaque PC cover H60
Schneider Electric

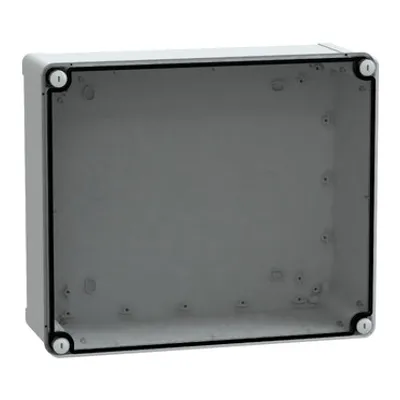

NSYTBP342912TPC box IP66 IK08 RAL7035 Int.H325W275D120 Ext.H341W291D128 Transp.cover H20
Schneider Electric

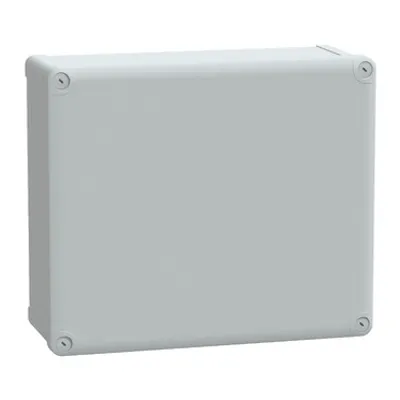

NSYTBP342912PC box IP66 IK08 RAL7035 Int.H325W275D120 Ext.H341W291D128 opaque PC cover H20
Schneider Electric

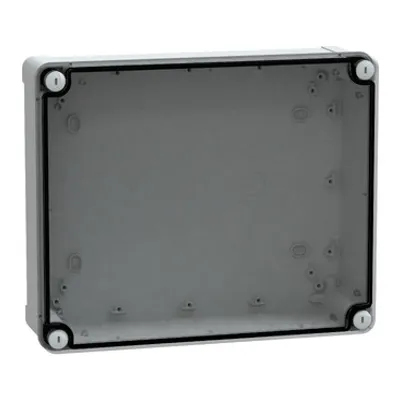

NSYTBP29248TPC box IP66 IK08 RAL7035 Int.H275W225D80 Ext.H291W241D88 Transp.cover H20
Schneider Electric
NSYTBP29248PC box IP66 IK08 RAL7035 Int.H275W225D80 Ext.H291W241D88 opaque PC cover H20
Schneider Electric

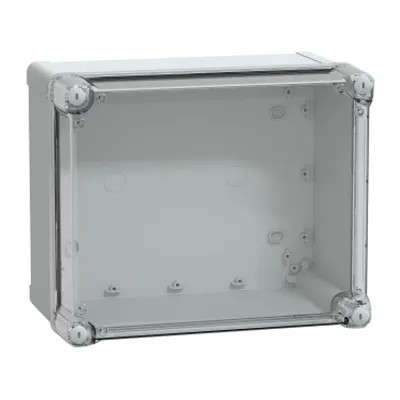

NSYTBP292416HTPC box IP66 IK08 RAL7035 Int.H275W225D160 Ext.H291W241D168 Transp.cover H60
Schneider Electric

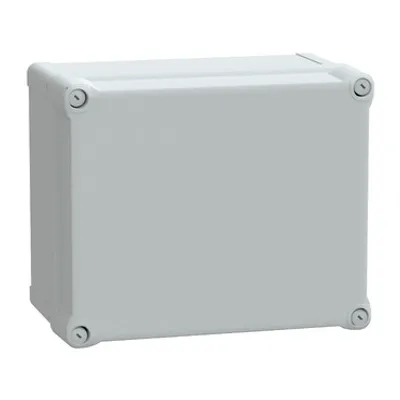

NSYTBP292416HPC box IP66 IK08 RAL7035 Int.H275W225D160 Ext.H291W241D168 opaque PC cover H60
Schneider Electric

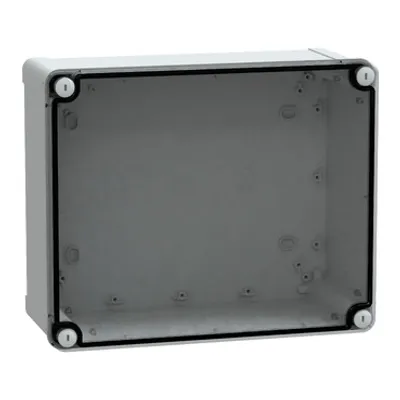

NSYTBP292412TPC box IP66 IK08 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H20
Schneider Electric

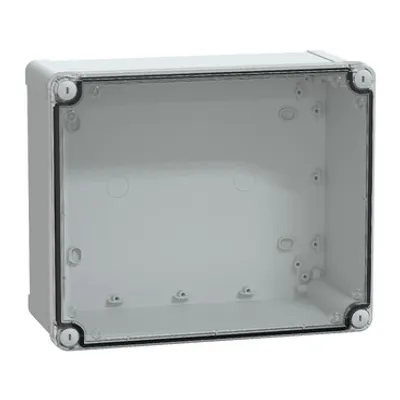

NSYTBP292412HTPC box IP66 IK08 RAL7035 Int.H275W225D120 Ext.H291W241D128 Transp.cover H60
Schneider Electric
NSYTBP292412HPC box IP66 IK08 RAL7035 Int.H275W225D120 Ext.H291W241D128 opaque PC cover H60
Schneider Electric

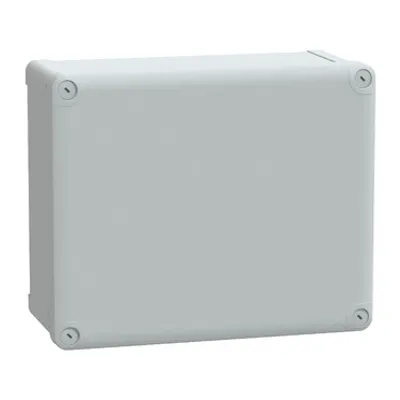

NSYTBP292412PC box IP66 IK08 RAL7035 Int.H275W225D120 Ext.H291W241D128 opaque PC cover H20
Schneider Electric

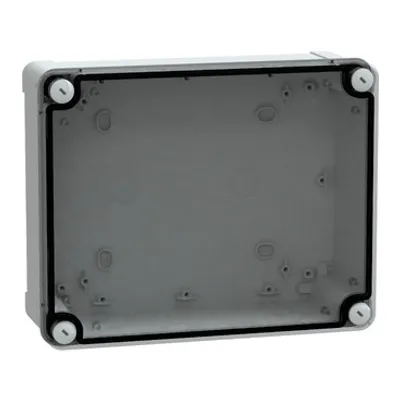

NSYTBP24198TPC box IP66 IK08 RAL7035 Int.H225W175D80 Ext.H241W194D87 Transp.cover H20
Schneider Electric

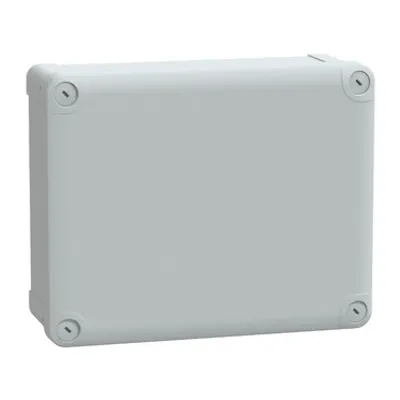

NSYTBP24198PC box IP66 IK08 RAL7035 Int.H225W175D80 Ext.H241W194D194 opaque PC cover H20
Schneider Electric

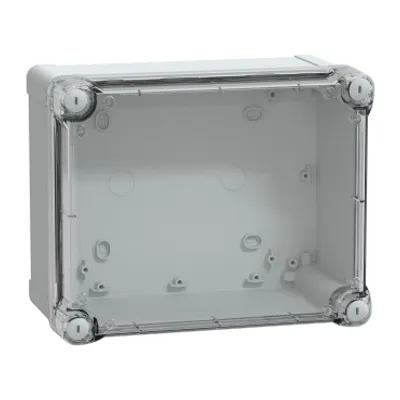

NSYTBP241912HTPC box IP66 IK08 RAL7035 Int.H225W175D120 Ext.H241W194D127 Transp.cover H40
Schneider Electric

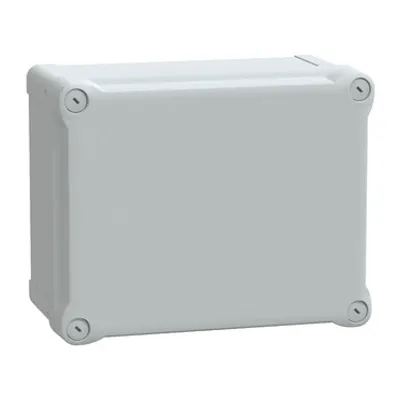

NSYTBP241912HPC box IP66 IK08 RAL7035 Int.H225W175D120 Ext.H241W194D127 opaque PC cover H40
Schneider Electric

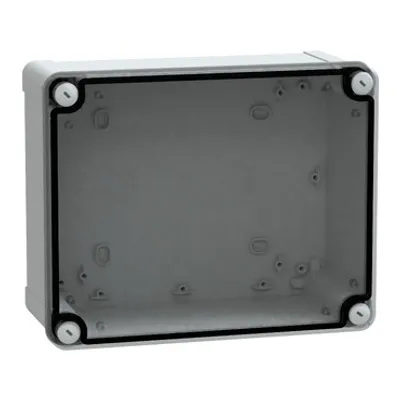

NSYTBP241910TPC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W191D128 Transp.cover H20
Schneider Electric

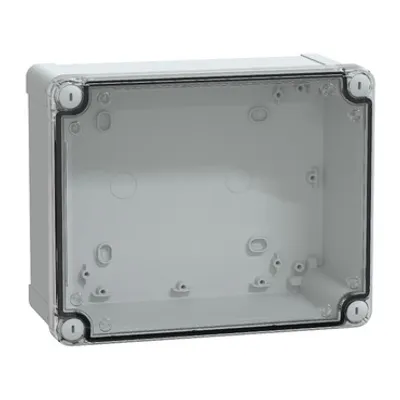

NSYTBP241910HTPC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W194D105 Transparent cover H40
Schneider Electric

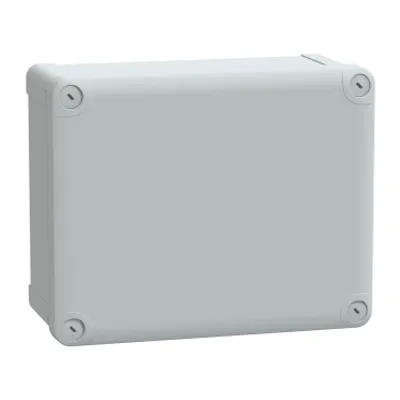

NSYTBP241910HPC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W194D105 opaque PC cover H40
Schneider Electric

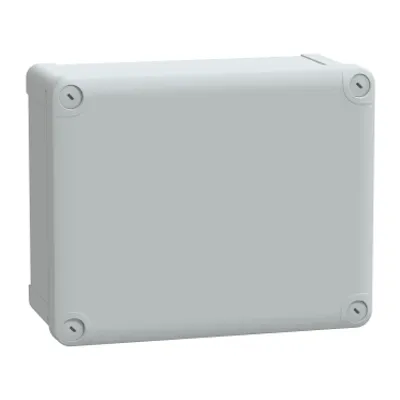

NSYTBP241910PC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W191D128 opaque PC cover H20
Schneider Electric

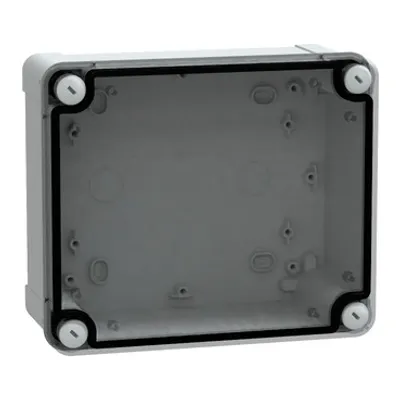

NSYTBP19168TPC box IP66 IK08 RAL7035 Int.H175W150D80 Ext.H193W164D87 Transp.cover H20
Schneider Electric

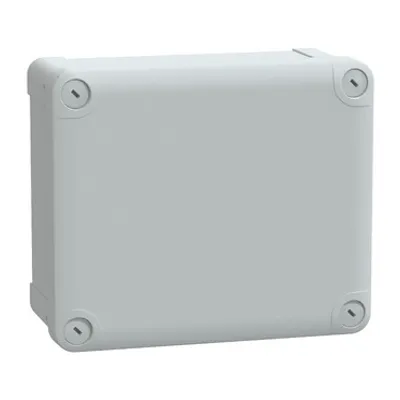

NSYTBP19168PC box IP66 IK08 RAL7035 Int.H175W150D80 Ext.H193W164D87 Opaque PC cover H20
Compare PanelSeT TBP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Height | Width | Depth | Internal height | Net weight |
|---|---|---|---|---|---|

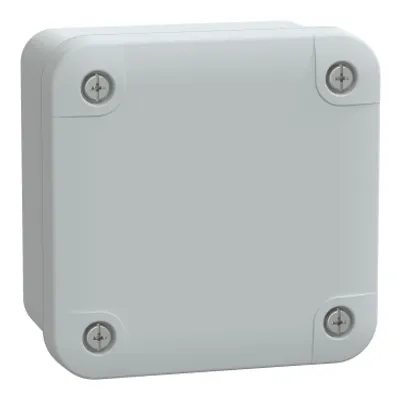

| NSYTBP885 | 89 mm | 89 mm | 54 mm | 80 mm | 0.108 kg |

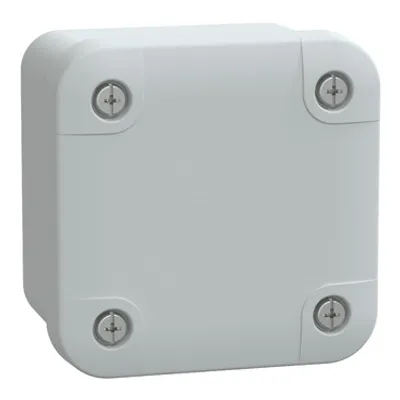

| NSYTBP775 | 74 mm | 74 mm | 54 mm | 65 mm | 0.076 kg |
| NSYTBP342916HT | 341 mm | 291 mm | 168 mm | 325 mm | 1.94 kg |
| NSYTBP342916H | 341 mm | 291 mm | 168 mm | 325 mm | 1.66 kg |
| NSYTBP342912T | 341 mm | 291 mm | 128 mm | 325 mm | 1.6 kg |
| NSYTBP342912 | 341 mm | 291 mm | 128 mm | 325 mm | 1.16 kg |
| NSYTBP29248T | 291 mm | 241 mm | 88 mm | 275 mm | 0.86 kg |
| NSYTBP29248 | 291 mm | 241 mm | 88 mm | 275 mm | 0.86 kg |
| NSYTBP292416HT | 291 mm | 241 mm | 168 mm | 275 mm | 1.34 kg |
| NSYTBP292416H | 291 mm | 241 mm | 168 mm | 275 mm | 1.24 kg |
| NSYTBP292412T | 291 mm | 241 mm | 128 mm | 275 mm | 1.12 kg |
| NSYTBP292412HT | 291 mm | 241 mm | 128 mm | 275 mm | 1.2 kg |
| NSYTBP292412H | 291 mm | 241 mm | 128 mm | 275 mm | 1.1 kg |
| NSYTBP292412 | 291 mm | 241 mm | 128 mm | 275 mm | 1.12 kg |
| NSYTBP24198T | 241 mm | 194 mm | 87 mm | 225 mm | 0.64 kg |
| NSYTBP24198 | 241 mm | 194 mm | 87 mm | 225 mm | 0.64 kg |
| NSYTBP241912HT | 241 mm | 194 mm | 127 mm | 225 mm | 0.82 kg |
| NSYTBP241912H | 241 mm | 194 mm | 127 mm | 225 mm | 0.78 kg |
| NSYTBP241910T | 241 mm | 194 mm | 107 mm | 225 mm | 0.72 kg |
| NSYTBP241910HT | 241 mm | 194 mm | 107 mm | 225 mm | 0.8 kg |
| NSYTBP241910H | 241 mm | 194 mm | 107 mm | 225 mm | 0.8 kg |
| NSYTBP241910 | 241 mm | 194 mm | 107 mm | 225 mm | 0.72 kg |
| NSYTBP19168T | 192 mm | 164 mm | 87 mm | 175 mm | 0.46 kg |
| NSYTBP19168 | 192 mm | 164 mm | 87 mm | 175 mm | 0.45 kg |
Common to all listed parts
| Range | PanelSeT |
| Product name | PanelSeT TBP |
| Device application | Multi-purpose |
| Category | Industrial box |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Body type | One piece moulded |
| Lock type | Captive screw flat outside sealed area |
