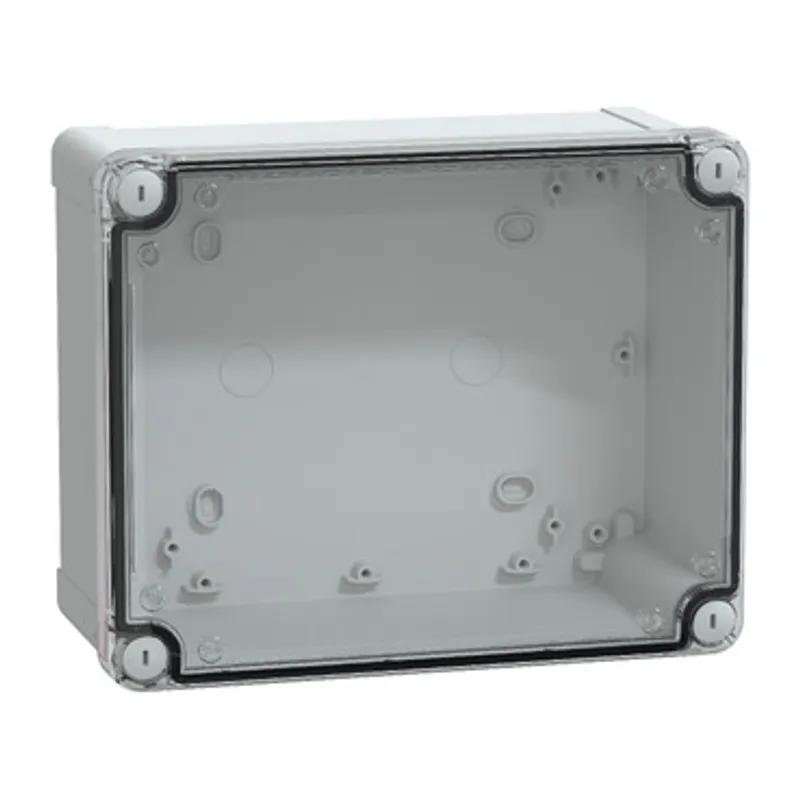

PC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W194D105 Transparent cover H40

Name: Schneider Electric NSYTBP241910HT – PC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W194D105 Transparent cover H40
Brand: Schneider Electric
SKU: NSYTBP241910HT

MPN: NSYTBP241910HT · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PanelSeT TBP
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.8 kg

Shipping & availability

When can NSYTBP241910HT be shipped?

NSYTBP241910HT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYTBP241910HT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYTBP241910HT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTBP241910HT, subject to availability and destination.

Schneider Electric PC box IP66 IK08 RAL7035 Int.H225W175D100 Ext.H241W194D105 Transparent cover H40, manufacturer part number NSYTBP241910HT. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range	PanelSeT
Product name	PanelSeT TBP
Device application	Multi-purpose
Category	Industrial box

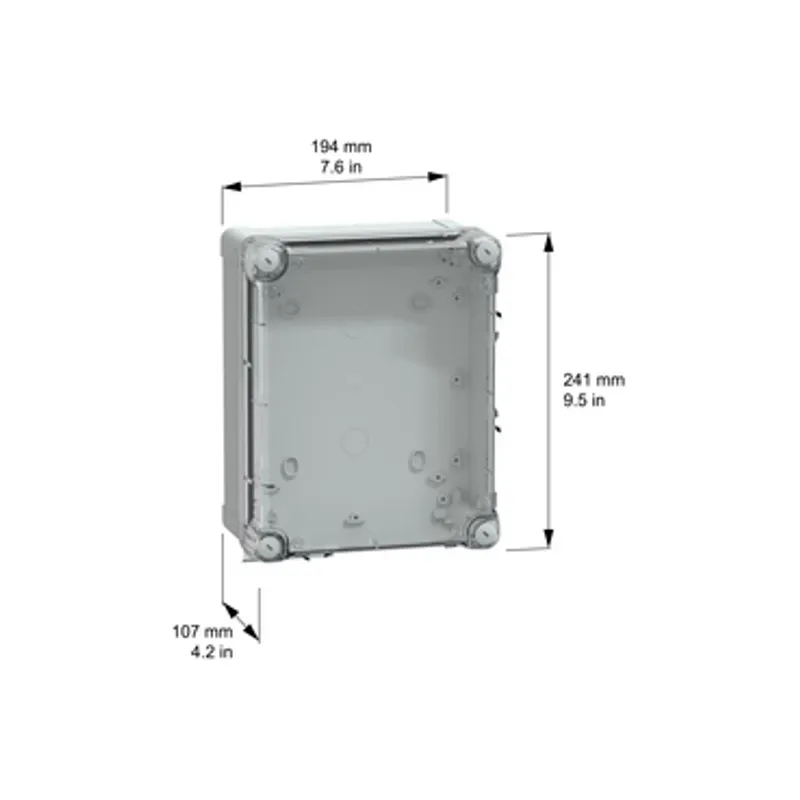

Height	241 mm
Width	194 mm
Depth	107 mm
Internal height	225 mm
Internal width	175 mm
Internal depth	100 mm
Enclosure mounting	Wall mounted
Device composition	1 body, 1 cover, 4 cover screw
Body type	One piece moulded
Type of front cover	High transparent cover
Cover fixing	Plastic screws
Lock type	Captive screw flat outside sealed area
Removable parts	Cover by captive screws
Material	Polycarbonate
Colour	Grey (RAL 7035), Transparent
Standards	IEC 62208, UL 508 A
Product certifications	TÜV, UL
Electrical insulation class	Class II

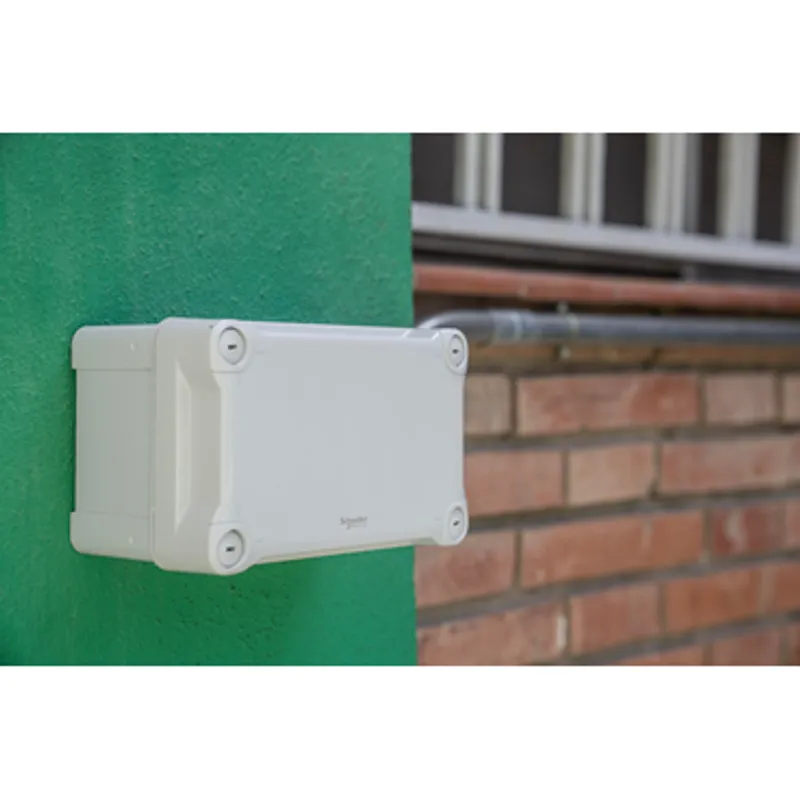

Mounting location	Outdoor (with canopy or shelter and anticondensation valve)
Net weight	0.8 kg
IP degree of protection	IP66 conforming to NEMA 4.4X
IK degree of protection	IK08 conforming to IEC 62262
Fire resistance	960 °C
Ambient air temperature for storage	-15…60 °C
Operating temperature	-25…80 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	12.000 cm
Package 1 Width	20.000 cm
Package 1 Length	25.500 cm
Package 1 Weight	772.000 g
Unit Type of Package 2	CAR
Number of Units in Package 2	9
Package 2 Height	40.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	7.810 kg
Unit Type of Package 3	P12
Number of Units in Package 3	108
Package 3 Height	135.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	107.000 kg
Warranty	18 months
