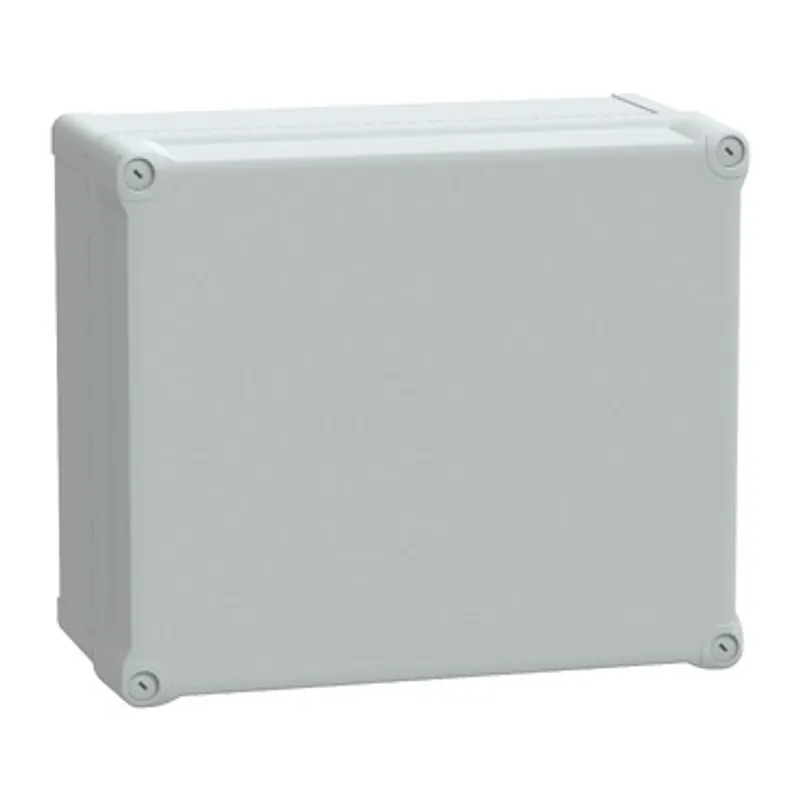

PC box IP66 IK08 RAL7035 Int.H325W275D160 Ext.H341W291D168 opaque PC cover H60
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT TBP |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.66 kg |
Shipping & availability
When can NSYTBP342916H be shipped?
NSYTBP342916H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTBP342916H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTBP342916H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTBP342916H, subject to availability and destination.
Schneider Electric PC box IP66 IK08 RAL7035 Int.H325W275D160 Ext.H341W291D168 opaque PC cover H60, manufacturer part number NSYTBP342916H. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT TBP |
| Device application | Multi-purpose |
| Category | Industrial box |

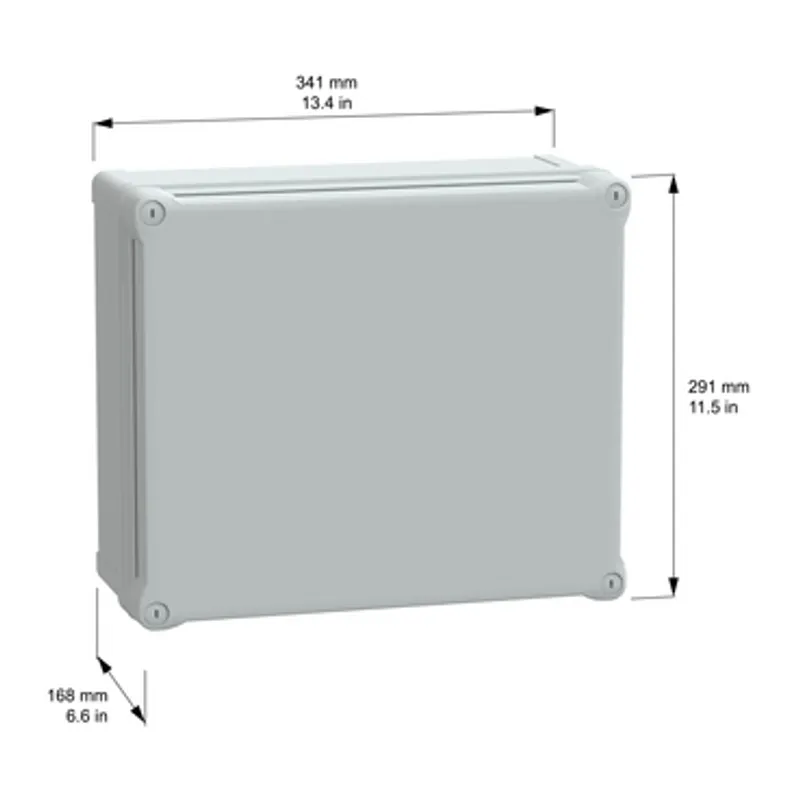

| Height | 341 mm |
| Width | 291 mm |
| Depth | 168 mm |
| Internal height | 325 mm |
| Internal width | 275 mm |
| Internal depth | 160 mm |

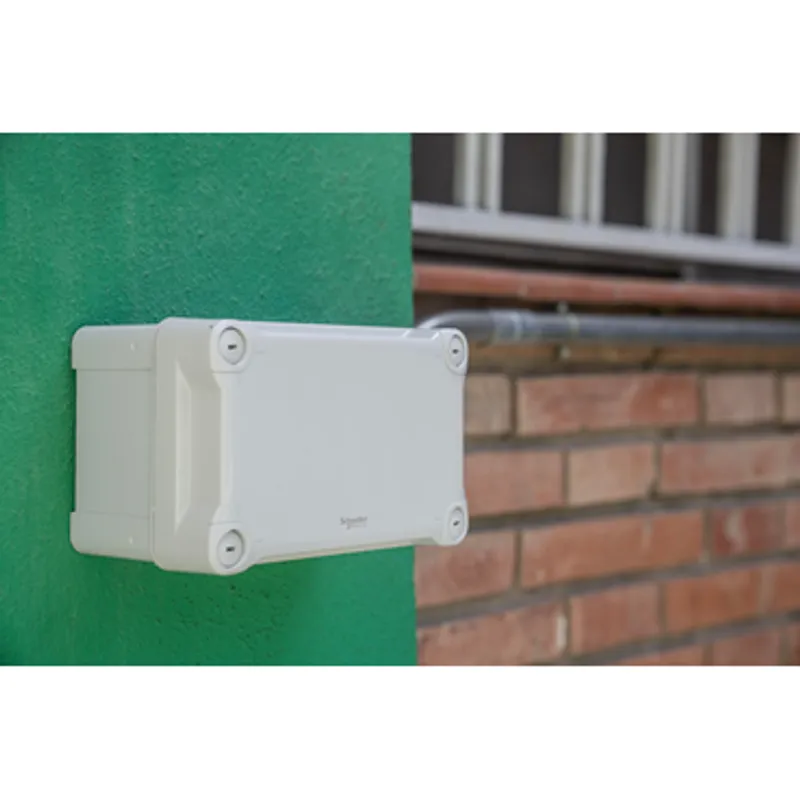

| Enclosure mounting | Wall mounted |

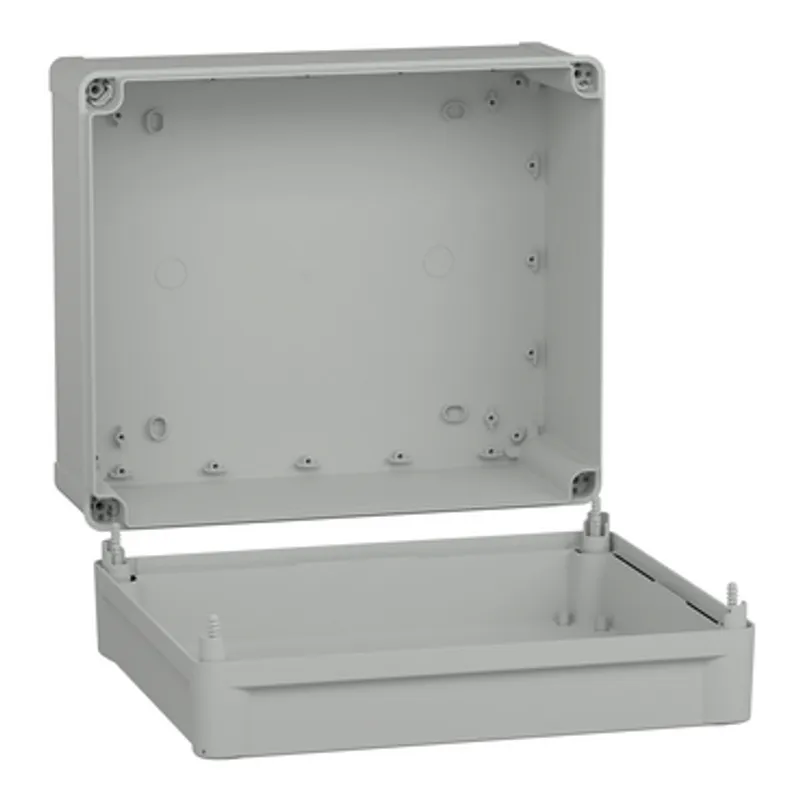

| Device composition | 1 body, 1 cover, 4 cover screw |
| Body type | One piece moulded |
| Type of front cover | High plain cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Polycarbonate |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL 508 A |
| Product certifications | TÜV, UL |
| Electrical insulation class | Class II |
| Mounting location | Outdoor (with canopy or shelter and anticondensation valve) |
| Net weight | 1.66 kg |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Fire resistance | 960 °C |
| Ambient air temperature for storage | -15…60 °C |
| Operating temperature | -25…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 18.500 cm |
| Package 1 Width | 30.000 cm |
| Package 1 Length | 36.000 cm |
| Package 1 Weight | 1.906 kg |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 3 |
| Package 2 Height | 40.500 cm |
| Package 2 Width | 40.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 6.624 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 36 |
| Package 3 Height | 135.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 92.000 kg |
| Warranty | 18 months |
