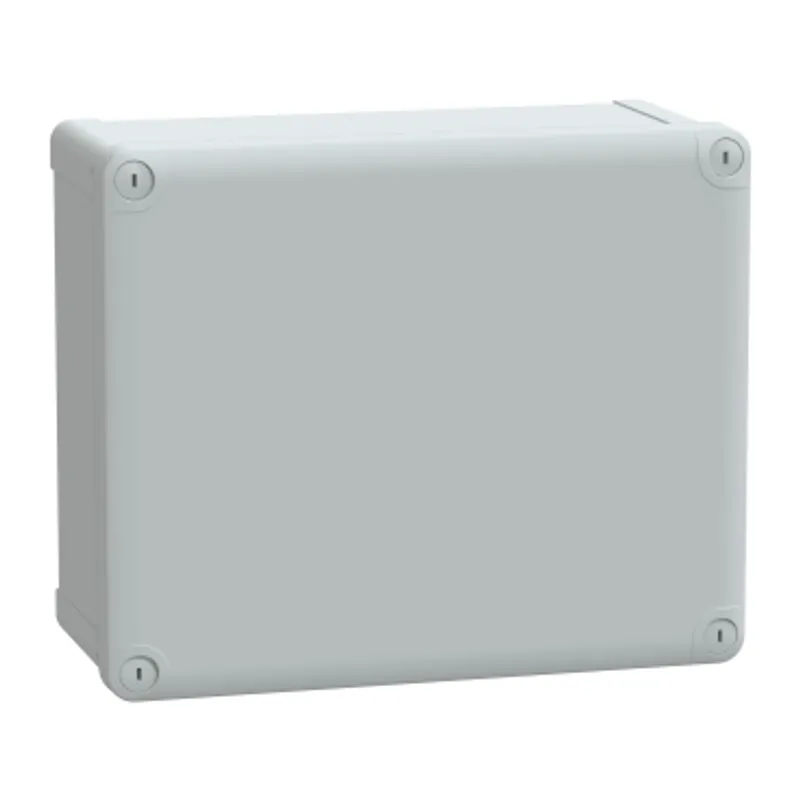

Schneider Electric NSYTBP292412H – PC box IP66 IK08 RAL7035 Int.H275W225D120 Ext.H291W241D128 opaque PC cover H60

Name: Schneider Electric NSYTBP292412H – PC box IP66 IK08 RAL7035 Int.H275W225D120 Ext.H291W241D128 opaque PC cover H60
Brand: Schneider Electric
SKU: NSYTBP292412H

MPN: NSYTBP292412H · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PanelSeT TBP
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	1.1 kg

Shipping & availability

When can NSYTBP292412H be shipped?

NSYTBP292412H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYTBP292412H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYTBP292412H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTBP292412H, subject to availability and destination.

Schneider Electric PC box IP66 IK08 RAL7035 Int.H275W225D120 Ext.H291W241D128 opaque PC cover H60, manufacturer part number NSYTBP292412H. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range	PanelSeT
Product name	PanelSeT TBP
Device application	Multi-purpose
Category	Industrial box

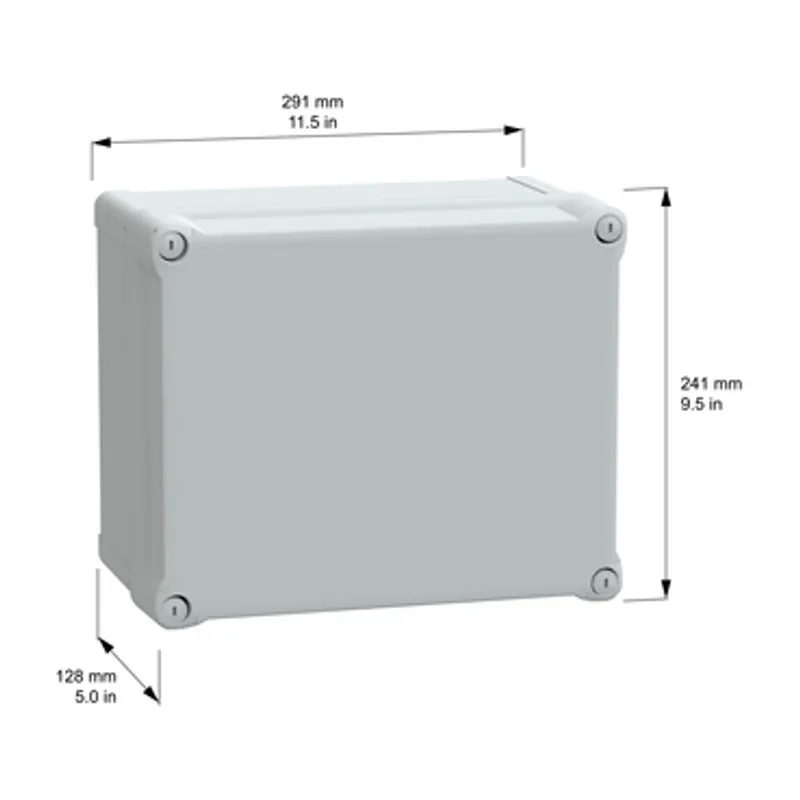

Height	291 mm
Width	241 mm
Depth	128 mm
Internal height	275 mm
Internal width	225 mm
Internal depth	120 mm
Enclosure mounting	Wall mounted
Device composition	1 body, 1 cover, 4 cover screw
Body type	One piece moulded
Type of front cover	High plain cover
Cover fixing	Plastic screws
Lock type	Captive screw flat outside sealed area
Removable parts	Cover by captive screws
Material	Polycarbonate
Colour	Grey (RAL 7035)
Standards	UL 508 A, IEC 62208
Product certifications	TÜV, UL
Electrical insulation class	Class II

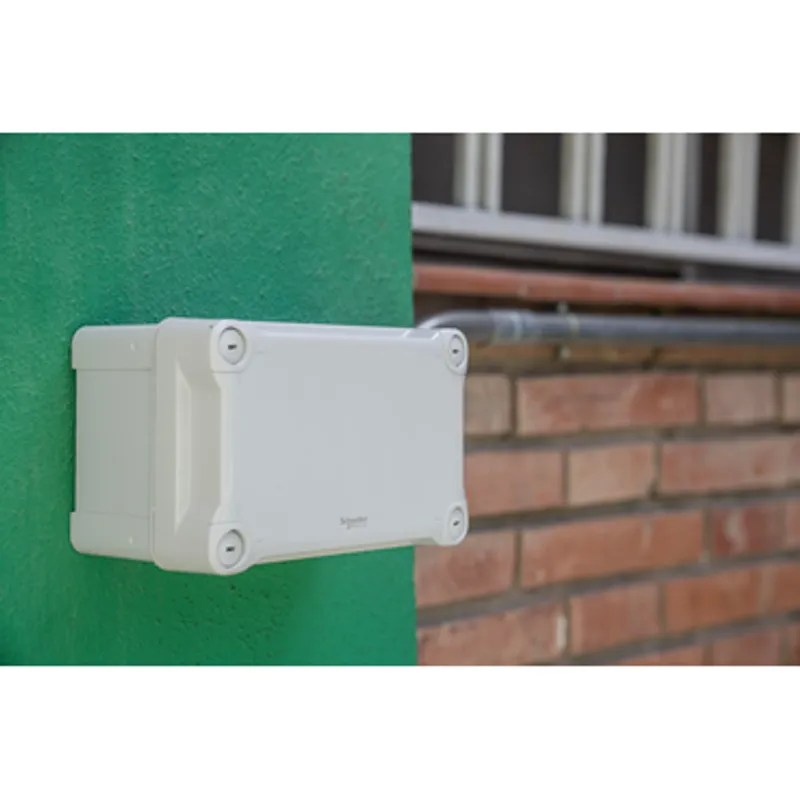

Mounting location	Outdoor (with canopy or shelter and anticondensation valve)
Net weight	1.1 kg
IP degree of protection	IP66 conforming to NEMA 4.4X
IK degree of protection	IK08 conforming to IEC 62262
Fire resistance	960 °C
Ambient air temperature for storage	-15…60 °C
Operating temperature	-25…80 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	31.000 cm
Package 1 Width	25.000 cm
Package 1 Length	14.000 cm
Package 1 Weight	1.198 kg
Unit Type of Package 2	CAR
Number of Units in Package 2	6
Package 2 Height	40.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	7.794 kg
Unit Type of Package 3	P12
Number of Units in Package 3	72
Package 3 Height	135.000 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	107.000 kg
Warranty	18 months
