Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable style | Drive-end Connector Type | AWG size | Cable length | Nominal cross section conductor (AWG) |
|---|---|---|---|---|---|
| 2090-CSBM1DF-18AF37 | Continuous-flex | Flying Lead at 5500 Drive End | 18 AWG | 37 m | 1.62 |

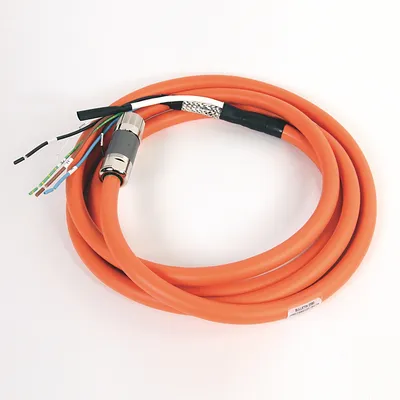

| 2090-CSBM1DF-18AF32 | Continuous-flexible | Drive-end, flying-lead | 18 AWG | 32 m | 1.62 |
| 2090-CSBM1DF-18AF29 | Continuous-flexible | — | 18 AWG | 29 m | 1.62 |
| 2090-CSBM1DF-14AF41 | Continuous-flex | — | 14 AWG | 41 m | 4.1 |
| 2090-CSWM1DE-14AA67 | Standard, Non-flex | Drive-end, connector kit | 14 AWG | 67 m | 4.1 |
| 2090-CSWM1DE-14AA52 | Standard, Non-flex | — | 14 AWG | 52 m | 4.1 |
| 2090-CSWM1DE-14AA44 | Standard, Non-flex | Flying Lead at 5700 Drive End | 14 AWG | 44 m | 4.1 |

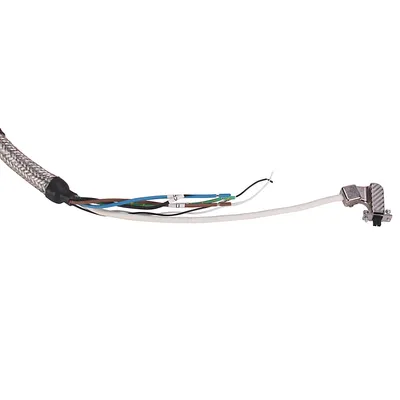

| 2090-CSWM1DE-14AA38 | Standard, Non-flex | Drive-end, connector kit | 14 AWG | 38 m | 4.1 |
| 2090-CSWM1DF-18AA19 | Standard, non-flexible | Flying Lead at 5500 Drive End | 18 AWG | 19 m | 1.62 |
| 2090-CSWM1DE-14AA34 | Standard, Non-flex | Drive-end, connector kit | 14 AWG | 34 m | 4.1 |
| 2090-CSWM1DE-14AA31 | Standard, Non-flex | Drive-end, connector kit | 14 AWG | 31 m | 4.1 |
| 2090-CSWM1DE-14AA29 | Standard, Non-flex | Drive-end, connector kit | 14 AWG | 29 m | 4.1 |
| 2090-CSBM1DF-10AF19 | Continuous-flex | — | 10 AWG | 19 m | 10.38 |
| 2090-CSBM1DF-10AF13 | Continuous-flexible | Drive-end, flying-lead | 10 AWG | 13 m | 10.38 |
| 2090-CSWM1DF-14AA37 | Standard, non-flexible | Flying Lead at 5500 Drive End | 14 AWG | 37 m | 4.1 |

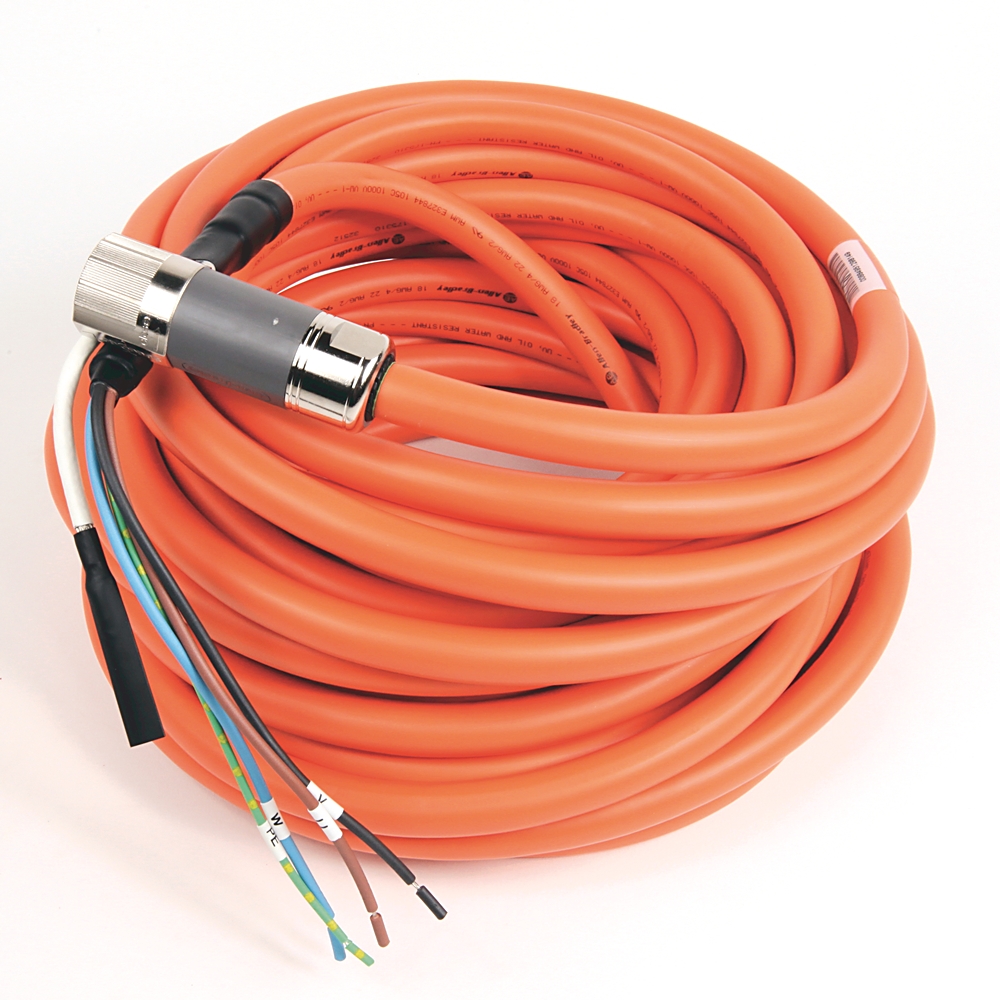

| 2090-CSWM1DF-18AA16 | Standard, Non-flex | Flying Lead at 5500 Drive End | 18 AWG | 16 m | 1.62 |
| 2090-CSWM1DF-14AA34 | Standard, non-flexible | — | 14 AWG | 34 m | 4.1 |

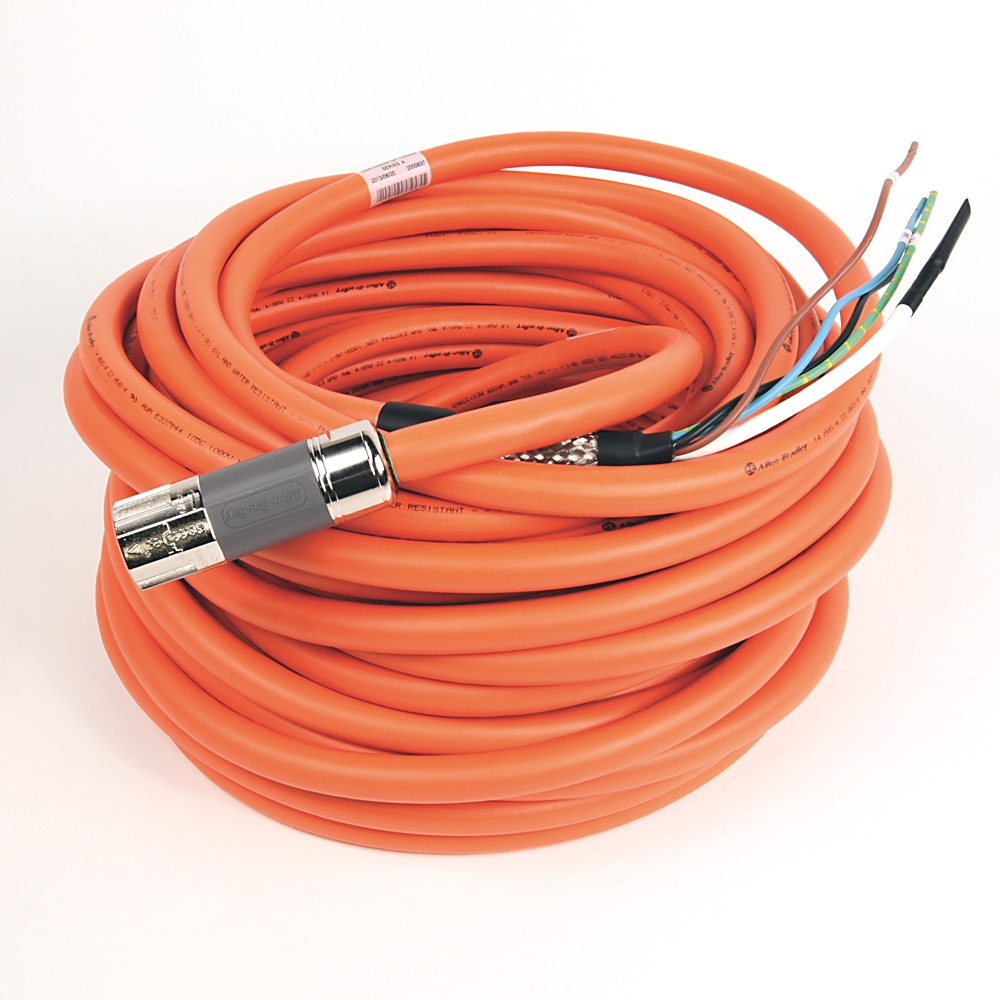

| 2090-CSWM1DF-14AA33 | Standard, Non-flex | Flying Lead at 5500 Drive End | 14 AWG | 33 m | 4.1 |
| 2090-CSWM1DE-14AA75 | Standard, non-flexible | — | 14 AWG | 75 m | 4.1 |

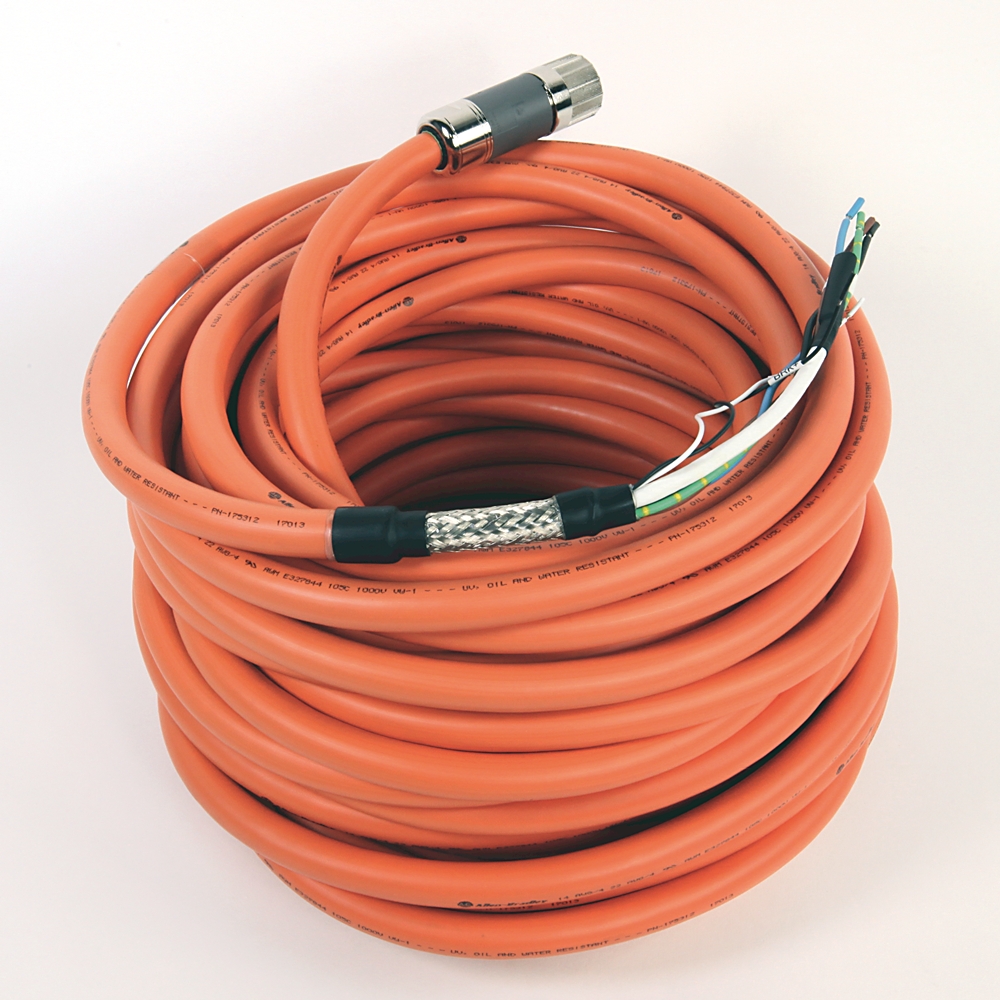

| 2090-CSBM1DF-14AA22 | Standard, Non-flex | Flying Lead at 5500 Drive End | 14 AWG | 22 m | 4.1 |
| 2090-CSWM1DF-18AA18 | Standard, Non-flex | Flying Lead at 5500 Drive End | 18 AWG | 18 m | 1.62 |
| 2090-CSWM1DF-18AA17 | Standard, Non-flex | Flying Lead at 5500 Drive End | 18 AWG | 17 m | 1.62 |
| 2090-CSWM1DF-14AA28 | Standard, non-flexible | Drive-end, flying-lead | 14 AWG | 28 m | 4.1 |
| 2090-CSWM1DF-14AA27 | Standard, non-flexible | Drive-end, flying-lead | 14 AWG | 27 m | 4.1 |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
| Accessory component | Cable |
| Color cable code | RAL2003 |
| Colour outer sheath | Orange |
| Conductor material | Copper |
| Conductor surface | Tinned |
| Core color | White/blue |
