Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | AWG size | Cable length | Cable style | Nominal cross section conductor (AWG) | Drive-end Connector Type |
|---|---|---|---|---|---|
| 2090-CSWM1DF-14AA21 | 14 AWG | 21 m | Standard, non-flexible | 4.1 | — |
| 2090-CSWM1DE-18AA85 | 18 AWG | 85 m | Standard, Non-flex | 1.62 | Drive-end, connector kit |
| 2090-CSWM1DE-18AA49 | 18 AWG | 49 m | Standard, Non-flex | 1.62 | Drive-end, connector kit |
| 2090-CSWM1DE-18AA33 | 18 AWG | 33 m | Standard, Non-flex | 1.62 | Flying Lead at 5700 Drive End |
| 2090-CSWM1DE-18AA29 | 18 AWG | 29 m | Standard, Non-flex | 1.62 | — |
| 2090-CSWM1DE-18AA31 | 18 AWG | 31 m | Standard, non-flexible | 1.62 | Flying Lead at 5700 Drive End |

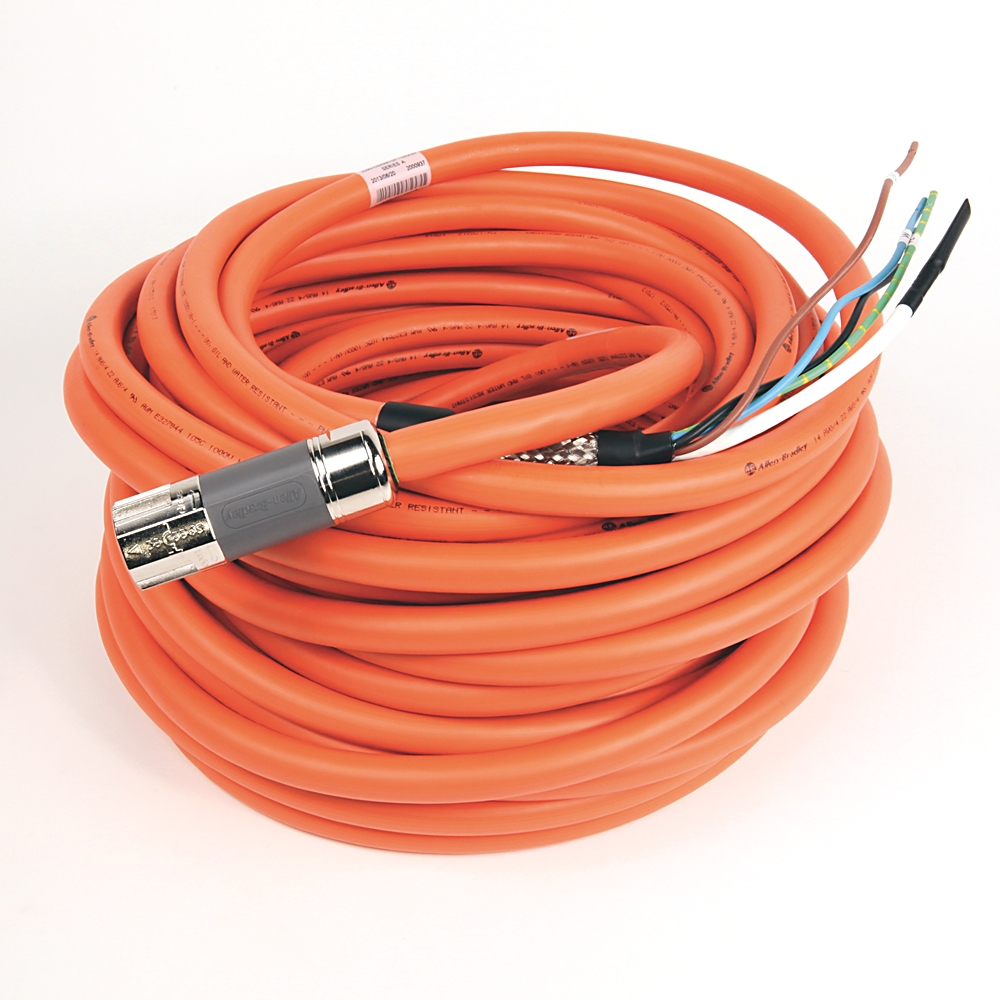

| 2090-CSWM1DF-14AA45 | 14 AWG | 45 m | Standard, Non-flex | 4.1 | Flying Lead at 5500 Drive End |
| 2090-CSWM1DF-18AA37 | 18 AWG | 37 m | Standard, Non-flex | 1.62 | Flying Lead at 5500 Drive End |

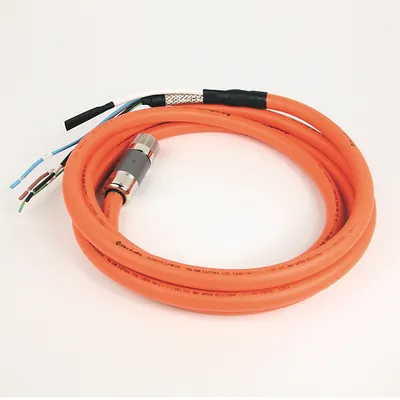

| 2090-CSWM1DF-18AA24 | 18 AWG | 24 m | Standard, non-flexible | 1.62 | Flying Lead at 5500 Drive End |
| 2090-CSWM1DF-18AA34 | 18 AWG | 34 m | Standard, Non-flex | 1.62 | Flying Lead at 5500 Drive End |
| 2090-CSWM1DF-18AA23 | 18 AWG | 23 m | Standard, Non-flex | 1.62 | Flying Lead at 5500 Drive End |
| 2090-CSBM1DF-14AA23 | 14 AWG | 23 m | Standard, Non-flex | 4.1 | Flying Lead at 5500 Drive End |

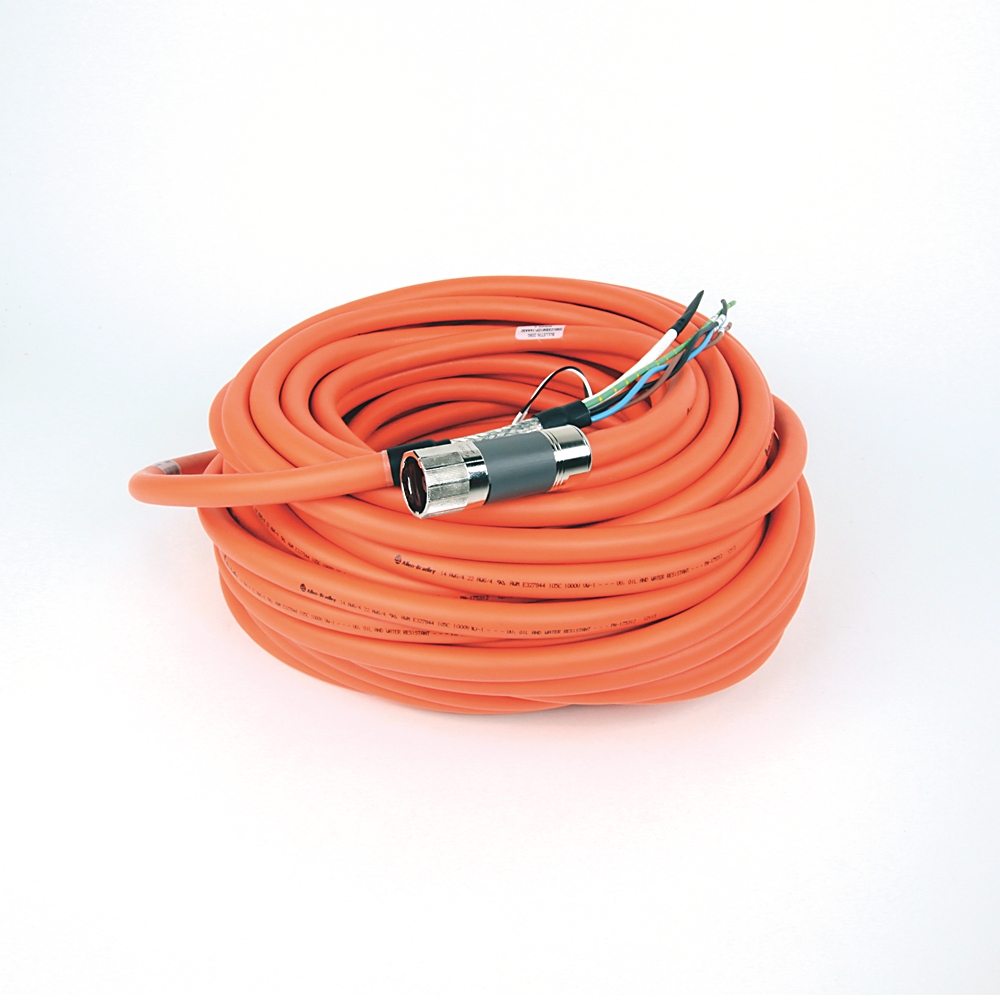

| 2090-CSBM1DF-14AA32 | 14 AWG | 32 m | Standard, Non-flex | 4.1 | Flying Lead at 5500 Drive End |
| 2090-CSBM1DF-14AA26 | 14 AWG | 26 m | Standard, Non-flex | 4.1 | — |

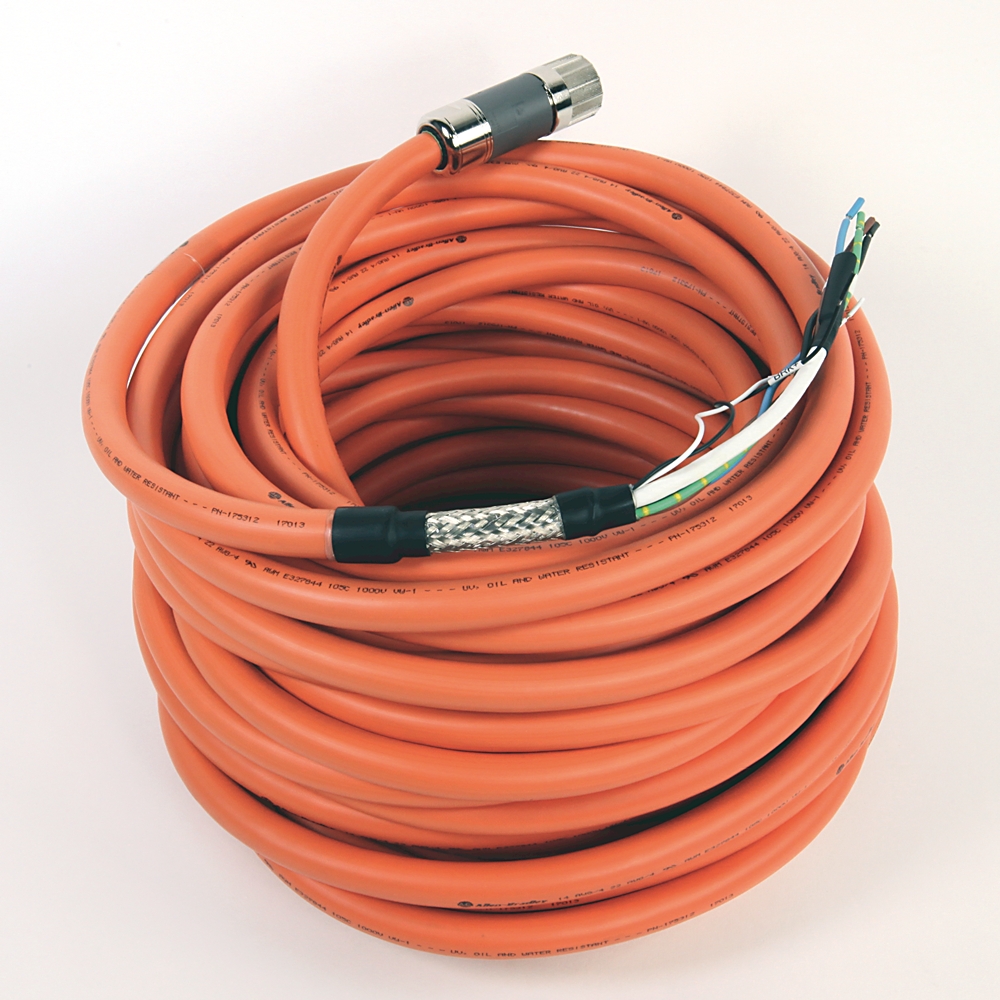

| 2090-CSBM1DF-14AA28 | 14 AWG | 28 m | Standard, Non-flex | 4.1 | Flying Lead at 5500 Drive End |
| 2090-CSBM1DE-10AF24 | 10 AWG | 24 m | Continuous-flexible | 10.38 | — |
| 2090-CSBM1DF-14AA21 | 14 AWG | 21 m | Standard, Non-flex | 4.1 | Flying Lead at 5500 Drive End |
| 2090-CSWM1DE-18AA14 | 18 AWG | 14 m | Standard, non-flexible | 1.62 | — |
| 2090-CSBM1DE-14AA02 | 14 AWG | 2 m | Standard, Non-flex | 4.1 | Drive-end, connector kit |
| 2090-CSBM1DE-10AF75 | 10 AWG | 75 m | Continuous-flex | 10.38 | Flying Lead at 5700 Drive End |
| 2090-CSBM1DE-14AA38 | 14 AWG | 38 m | Standard, Non-flex | 4.1 | — |
| 2090-CSBM1DE-14AA75 | 14 AWG | 75 m | Standard, Non-flex | 4.1 | Drive-end, connector kit |

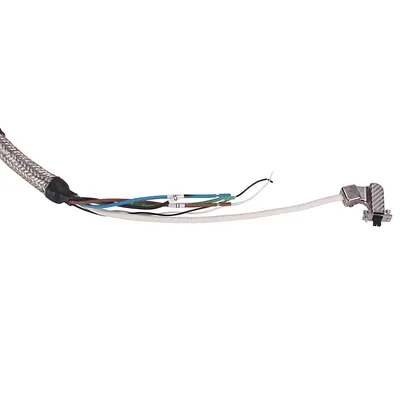

| 2090-CSBM1DE-14AF33 | 14 AWG | 33 m | Continuous-flex | 4.1 | Drive-end, connector kit |
| 2090-CSBM1DG-14AA26 | 14 AWG | 26 m | Standard, Non-flex | 4.1 | Drive-End, Flying Lead, hybrid |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
| Accessory component | Cable |
| Color cable code | RAL2003 |
| Colour outer sheath | Orange |
| Conductor material | Copper |
| Conductor surface | Tinned |
| Core color | White/blue |
