Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable style | Drive-end Connector Type | AWG size | Cable length | Nominal cross section conductor (AWG) |
|---|---|---|---|---|---|
| 2090-CSBM1DF-10AF06 | Continuous-flex | Flying Lead at 5500 Drive End | 10 AWG | 6 m | 10.38 |
| 2090-CSBM1DF-18AF27 | Continuous-flexible | Drive-end, flying-lead | 18 AWG | 27 m | 1.62 |
| 2090-CSBM1DG-18AA40 | Standard, Non-flex | Drive-end, long flying-leads | 18 AWG | 40 m | 1.62 |
| 2090-CSBM1DF-18AF14 | Continuous-flexible | — | 18 AWG | 14 m | 1.62 |

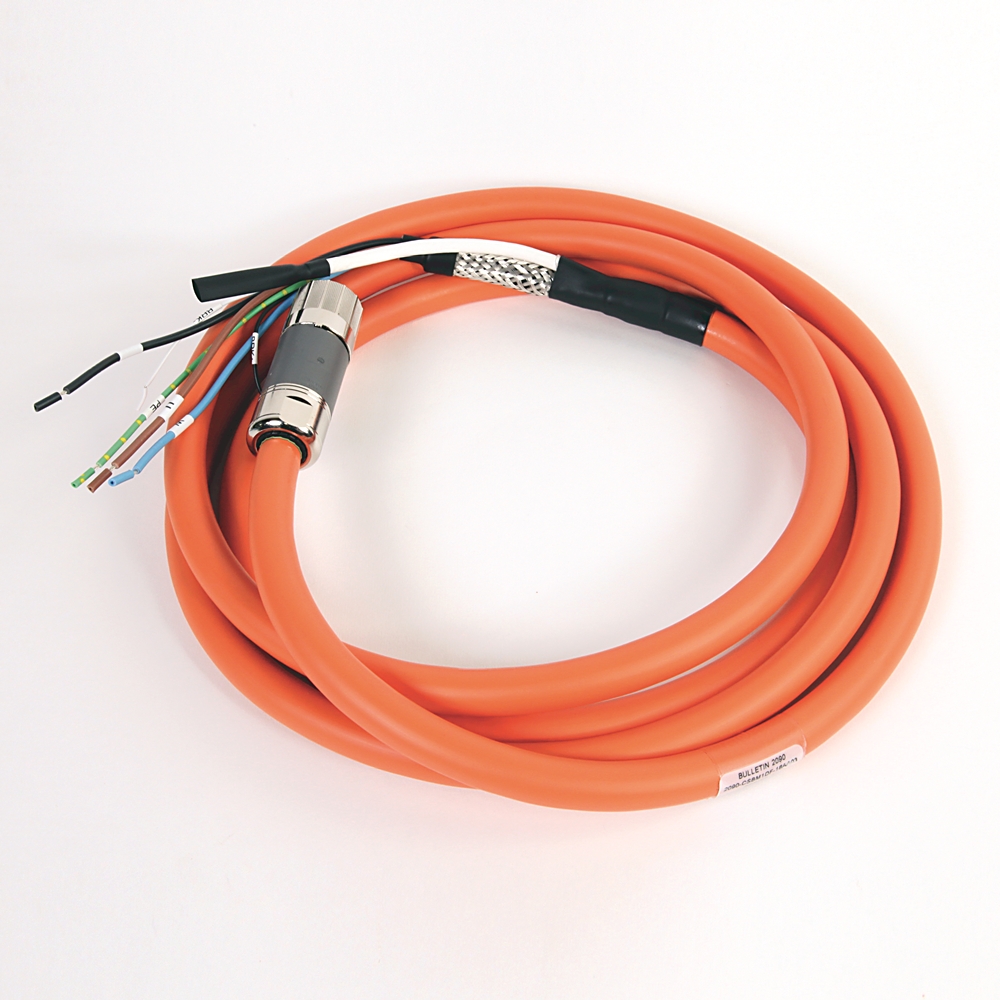

| 2090-CSBM1DF-18AF11 | Continuous-flexible | Drive-end, flying-lead | 18 AWG | 11 m | 1.62 |
| 2090-CSBM1DF-14AF13 | Continuous-flexible | — | 14 AWG | 13 m | 4.1 |
| 2090-CSBM1DF-14AF24 | Continuous-flexible | Drive-end, flying-lead | 14 AWG | 24 m | 4.1 |

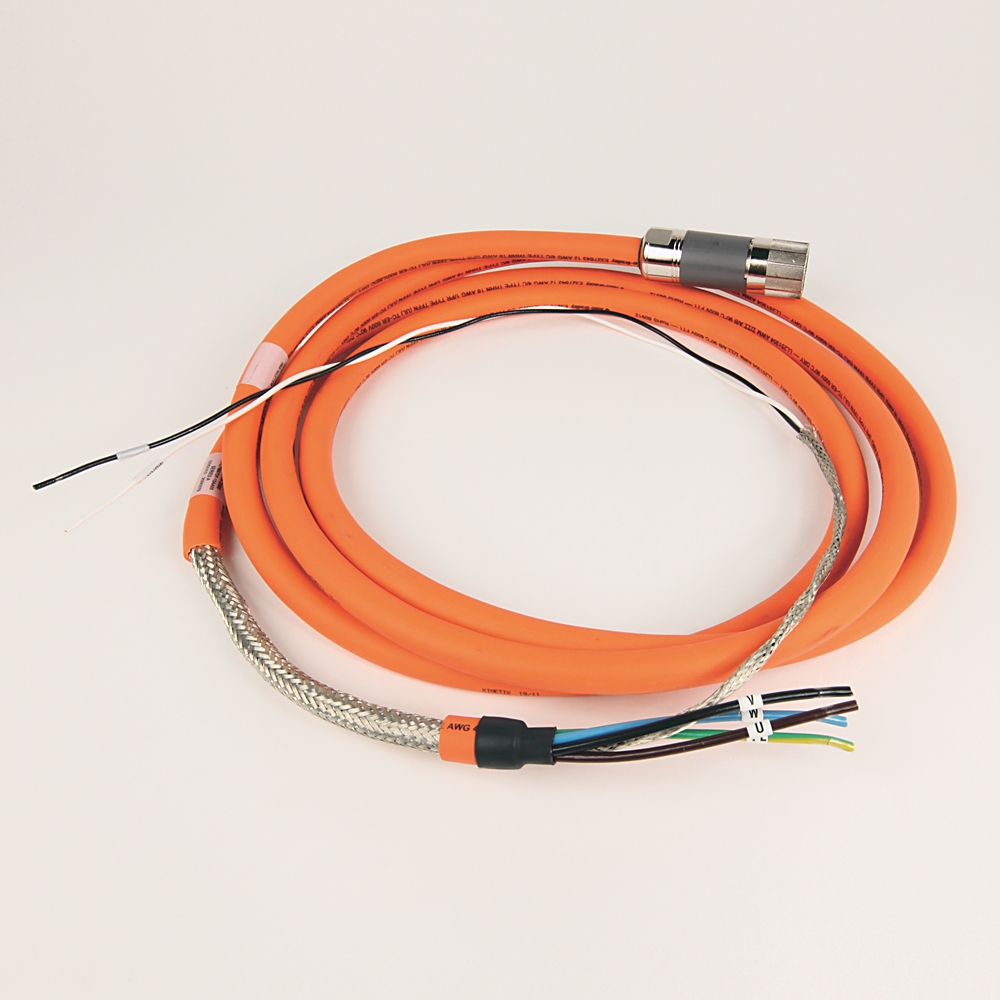

| 2090-CPBM7DF-12AA03 | — | — | — | — | — |
| 2090-CSBM1DE-10AF16 | Continuous-flexible | — | 10 AWG | 16 m | 10.38 |
| 2090-CSWM1DG-14AA42 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 42 m | 4.1 |
| 2090-CSWM1DG-14AA44 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 44 m | 4.1 |
| 2090-CSWM1DG-14AA35 | Standard, Non-flex | Drive-End, Flying Lead, hybrid | 14 AWG | 35 m | 4.1 |
| 2090-CSWM1DG-18AA01 | Standard, non-flexible | Drive-end, long flying-leads | 18 AWG | 1 m | 1.62 |

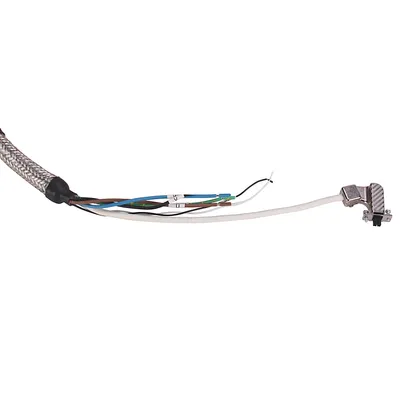

| 2090-CSWM1DG-14AA32 | Standard, non-flexible | — | 14 AWG | 32 m | 4.1 |
| 2090-CSWM1DG-14AA27 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 27 m | 4.1 |
| 2090-CSWM1DG-14AA24 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 24 m | 4.1 |
| 2090-CSWM1DG-14AA23 | Standard, Non-flex | Drive-end, long flying-leads | 14 AWG | 23 m | 4.1 |
| 2090-CSWM1DG-14AA13 | Standard, Non-flex | Drive-End, Flying Lead, hybrid | 14 AWG | 13 m | 4.1 |
| 2090-CSBM1DE-14AF55 | Continuous-flex | — | 14 AWG | 55 m | 4.1 |
| 2090-CSBM1DF-14AA19 | Standard, Non-flex | Flying Lead at 5500 Drive End | 14 AWG | 19 m | 4.1 |
| 2090-CSBM1DF-14AA17 | Standard, Non-flex | — | 14 AWG | 17 m | 4.1 |
| 2090-CSBM1DF-14AF02 | Continuous-flex | Drive-end, flying-lead | 14 AWG | 2 m | 4.1 |
| 2090-CSBM1DF-10AF35 | Continuous-flex | — | 10 AWG | 35 m | 10.38 |
| 2090-CSBM1DG-18AF01 | Continuous-flex | Drive-end, long flying-leads | 18 AWG | 1 m | 1.62 |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
