Kinetix & Legacy Servo Drives, 2090 Motion Cables Parts
Compare Kinetix & Legacy Servo Drives, 2090 Motion Cables
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cable style | AWG size | Cable length | Nominal cross section conductor (AWG) | Nominal cross section conductor |
|---|---|---|---|---|---|

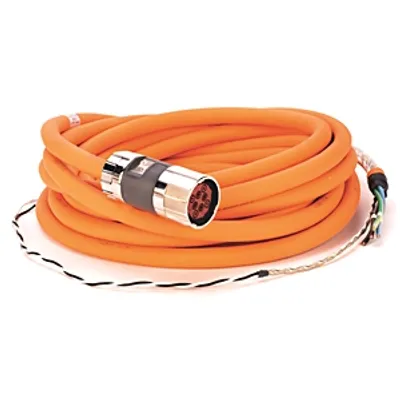

| 2090-CPBM7DF-10AF50 | — | — | — | — | — |

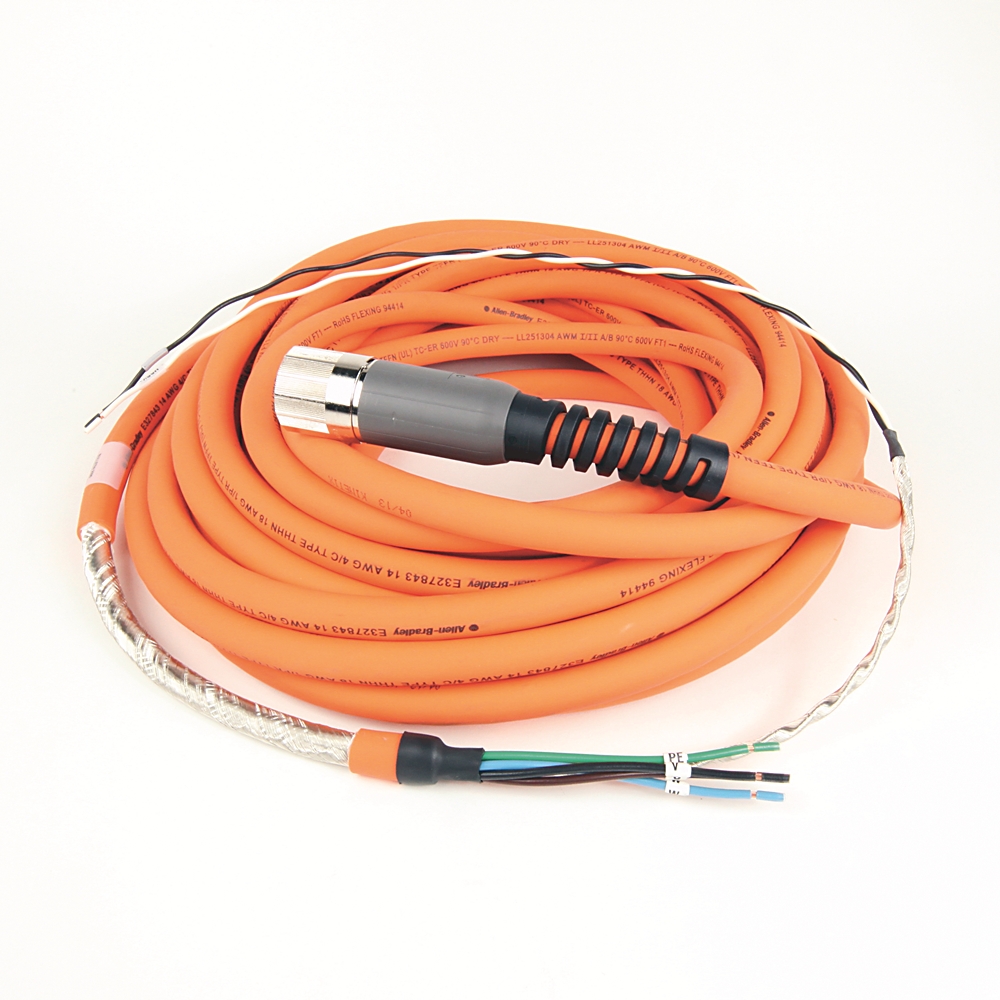

| 2090-CPBM7DF-14AF03 | — | — | — | — | — |
| 2090-CPBM7DF-10AF12 | — | — | — | — | — |

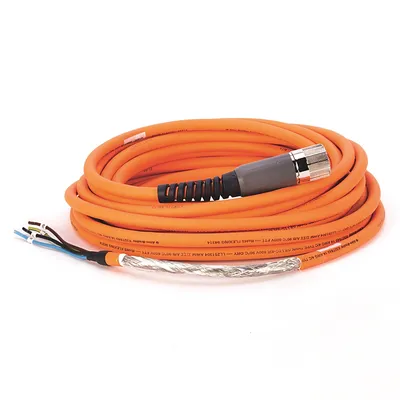

| 2090-CPWM7DF-14AF60 | — | — | — | — | — |
| 2090-CSWM1DE-18AA75 | Standard, Non-flex | 18 AWG | 75 m | 1.62 | 0.82 |
| 2090-CSBM1DE-14AA51 | Standard, Non-flex | 14 AWG | 51 m | 4.1 | 2.08 |
| 2090-CSBM1DE-06AF03 | Continuous-flex | 6 AWG | 3 m | 26.25 | 13.3 |
| 2090-CSBM1DE-10AF14 | Continuous-flex | 10 AWG | 14 m | 10.38 | 5.26 |
| 2090-CSBM1DF-10AF18 | Continuous-flex | 10 AWG | 18 m | 10.38 | 5.26 |
| 2090-CSBM1DE-18AF26 | Continuous-flex | 18 AWG | 26 m | 1.62 | 0.82 |
| 2090-CSBM1DE-18AA33 | Standard, non-flexible | 18 AWG | 33 m | 1.62 | 0.82 |
| 2090-CSBM1DE-10AF19 | Continuous-flex | 10 AWG | 19 m | 10.38 | 5.26 |

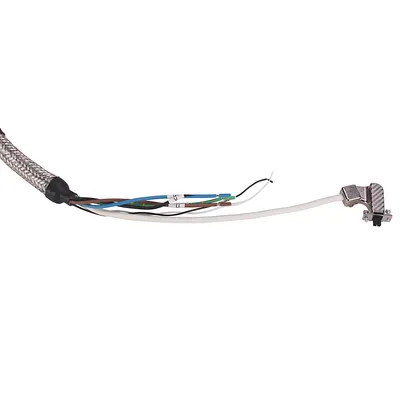

| 2090-CSBM1DE-14AA36 | Standard, non-flexible | 14 AWG | 36 m | 4.1 | 2.08 |
| 2090-CSWM1DE-14AA39 | Standard, Non-flex | 14 AWG | 39 m | 4.1 | 2.08 |
| 2090-CSBM1DE-18AA21 | Standard, Non-flex | 18 AWG | 21 m | 1.62 | 0.82 |
| 2090-CSBM1DE-14AF24 | Continuous-flex | 14 AWG | 24 m | 4.1 | 2.08 |
| 2090-CSWM1DE-14AA42 | Standard, Non-flex | 14 AWG | 42 m | 4.1 | 2.08 |
| 2090-CSBM1DE-10AF22 | Continuous-flex | 10 AWG | 22 m | 10.38 | 5.26 |
| 2090-CSBM1DE-10AF23 | Continuous-flex | 10 AWG | 23 m | 10.38 | 5.26 |
| 2090-CSBM1DE-08AF03 | Continuous-flex | 8 AWG | 3 m | 16.5 | 8.36 |
| 2090-CSBM1DF-10AF50 | Continuous-flex | 10 AWG | 50 m | 10.38 | 5.26 |
| 2090-CSBM1DF-10AF38 | Continuous-flex | 10 AWG | 38 m | 10.38 | 5.26 |
| 2090-CSBM1DF-10AF24 | Continuous-flexible | 10 AWG | 24 m | 10.38 | 5.26 |
Common to all listed parts
| Lifecycle | Active |
| Repair options available | No |
