IEEE 841XL Motors Parts

ABB

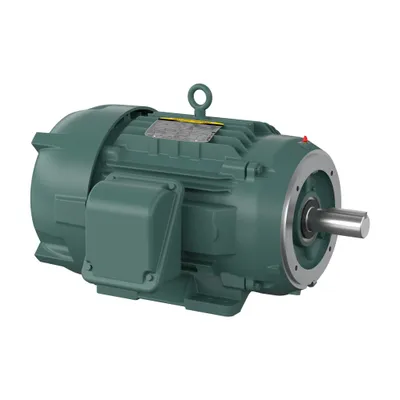

CECP84103T-4

25HP,1770RPM,3PH,60HZ,284TC,1056M,T

ABB

CECP84104T-4

30HP,1770RPM,3PH,60HZ,286TC,TEFC,F1

ABB

CECP84100T-4

15HP,1180RPM,3PH,60HZ,284TC,TEFC,F1

ABB

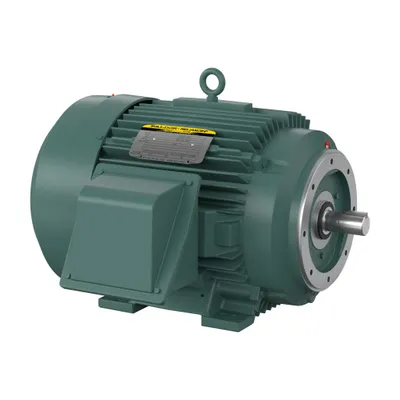

CECP84313T-4

75HP,3555RPM,3PH,60HZ,365TSC,A36068

ABB

CECP84314T-4

60HP,1780RPM,3PH,60HZ,364TC,A3658M

ABB

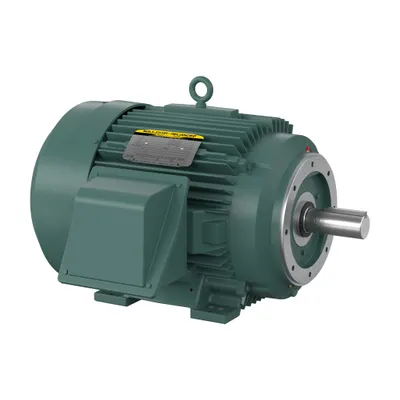

CECP84312T-4

50HP,1185RPM,3PH,60HZ,365TC,A3668M

ABB

CECP84316T-4

75HP,1780RPM,3PH,60HZ,365TC,A36070M

ABB

CECP84310T-4

60HP,3560RPM,3PH,60HZ,364TSC,A36056

ABB

CECP84117T-4

30HP,1180RPM,3PH,60HZ,326TC,TEFC,F1

ABB

CECP84115T-4

50HP,1770RPM,3PH,60HZ,326TC,TEFC,F1

ABB

CECP84114T-4

50HP,3530RPM,3PH,60HZ,326TSC,TEFC,F

ABB

CECP84110T-4

40HP,1770RPM,3PH,60HZ,324TC,TEFC,F1

ABB

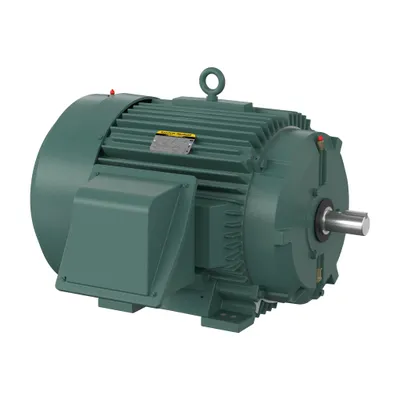

ECP84310T-5

60HP,3560RPM,3PH,60HZ,364TS,A36056M

ABB

ECP84310T-4

60HP,3560RPM,3PH,60HZ,364TS,A36056M

ABB

CECP84308T-4

40HP,1190RPM,3PH,60HZ,364TC,A36062M

ABB

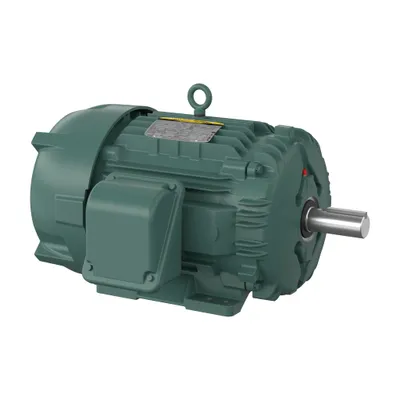

ECP84103T-4

25HP,1770RPM,3PH,60HZ,284T,1056M,TE

ABB

ECP84103T-5

25HP,1770RPM,3PH,60HZ,284T,TEFC,F1

ABB

ECP84111T-5

25HP,1180RPM,3PH,60HZ,324T,TEFC,F1

ABB

ECP84111T-4

25HP,1180RPM,3PH,60HZ,324T,TEFC,F1

ABB

ECP84312T-5

50HP,1185RPM,3PH,60HZ,365T,A3668M,T

ABB

ECP84312T-4

50HP,1185RPM,3PH,60HZ,365T,A3668M,T

ABB

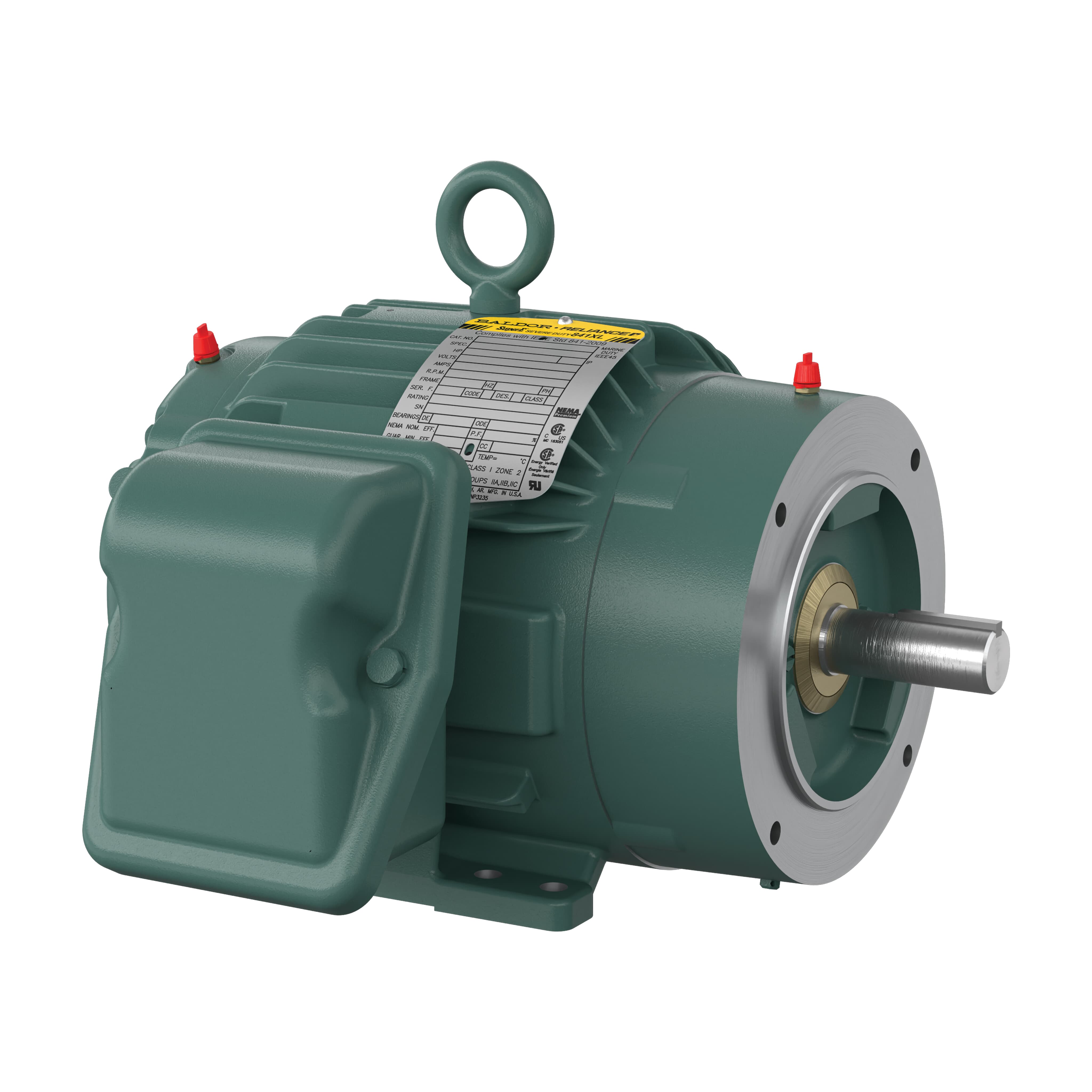

CENCP83580T-4

1HP,3450RPM,3PH,60HZ,143TC,0520M,TE

ABB

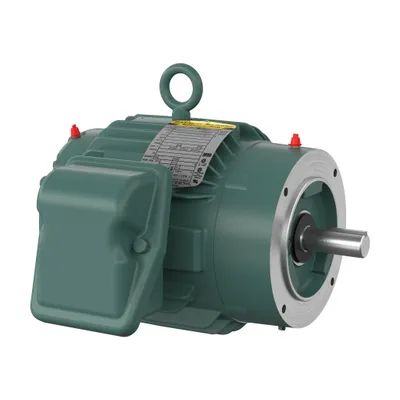

VENCP83580T-4

1HP,3450RPM,3PH,60HZ,143TC,0520M,TE

ABB

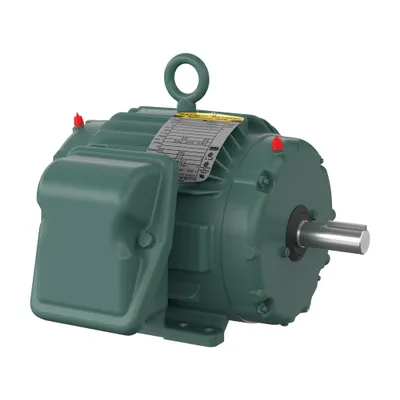

ENCP83580T-4

1HP,3450RPM,3PH,60HZ,143T,0520M,TEN

Compare IEEE 841XL Motors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Power Factor	Motor Frame Size	Product Net Weight	Dimension Diagram
CECP84103T-4	CECP84103T-4	85 %	284TC	470 lb	10LY-000-170
CECP84104T-4	CECP84104T-4	84 %	286TC	465 lb	10LY-000-170
CECP84100T-4	CECP84100T-4	77 %	284TC	420 lb	10LY-000-170
CECP84313T-4	CECP84313T-4	92 %	365TSC	1007 lb	617428-621
CECP84314T-4	CECP84314T-4	84 %	364TC	920.999 lb	617428-620
CECP84312T-4	CECP84312T-4	81 %	365TC	946 lb	617428-620
CECP84316T-4	CECP84316T-4	86 %	365TC	993 lb	617428-620
CECP84310T-4	CECP84310T-4	90 %	364TSC	899 lb	617428-621
CECP84117T-4	CECP84117T-4	80 %	326TC	640 lb	12LY-000-140
CECP84115T-4	CECP84115T-4	87 %	326TC	683 lb	12LY-000-140
CECP84114T-4	CECP84114T-4	92 %	326TSC	670 lb	12LY-000-141
CECP84110T-4	CECP84110T-4	86 %	324TC	600 lb	12LY-000-140
ECP84310T-5	ECP84310T-5	91 %	364TS	932 lb	617428-510
ECP84310T-4	ECP84310T-4	90 %	364TS	959 lb	617428-510
CECP84308T-4	CECP84308T-4	80 %	364TC	944.999 lb	617428-620
ECP84103T-4	ECP84103T-4	85 %	284T	476 lb	10LYH231
ECP84103T-5	ECP84103T-5	85 %	284T	474 lb	10LYH231
ECP84111T-5	ECP84111T-5	80 %	324T	638.999 lb	12LYG135
ECP84111T-4	ECP84111T-4	79 %	324T	638 lb	12LYG135
ECP84312T-5	ECP84312T-5	81 %	365T	908.001 lb	617428-603
ECP84312T-4	ECP84312T-4	81 %	365T	928 lb	617428-603
CENCP83580T-4	CENCP83580T-4	88 %	143TC	61 lb	05LYF127
VENCP83580T-4	VENCP83580T-4	88 %	143TC	59 lb	05LYF158
ENCP83580T-4	ENCP83580T-4	88 %	143T	56 lb	05LYE276

Common to all listed parts

Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	F
NEMA Design Code	B
