IEEE 841XL Motors Parts

ABB

VECP82334T-4

20HP,1760RPM,3PH,60HZ,256TC,0964M,T

ABB

VECP82333T-4

15HP,1760RPM,3PH,60HZ,254TC,0944M,T

ABB

ECP844206T-4

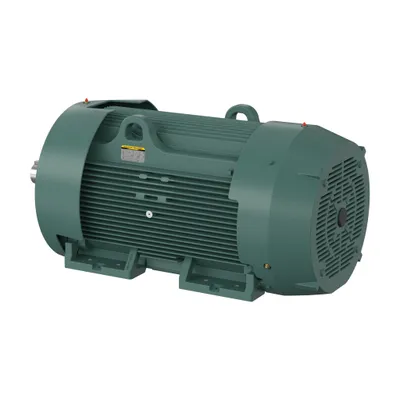

200HP,1190RPM,3PH,60HZ,449T,TEFC,FO

ABB

ECP84108T-4

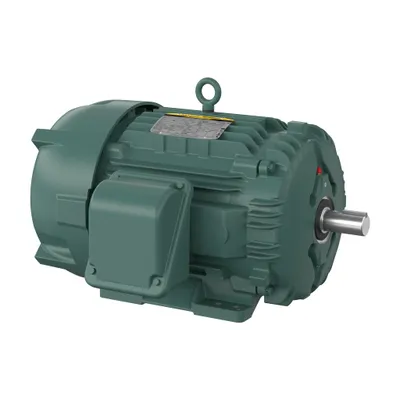

30HP,3525RPM,3PH,60HZ,286TS,TEFC,F1

ABB

ECP84108T-5

30HP,3525RPM,3PH,60HZ,286TS,TEFC,F1

ABB

ECP83771T-4

10HP,3475RPM,3PH,60HZ,215T,0742M,TE

ABB

ECP83771T-5

10HP,3475RPM,3PH,60HZ,215T,0742M,TE

ABB

ECP84104T-4

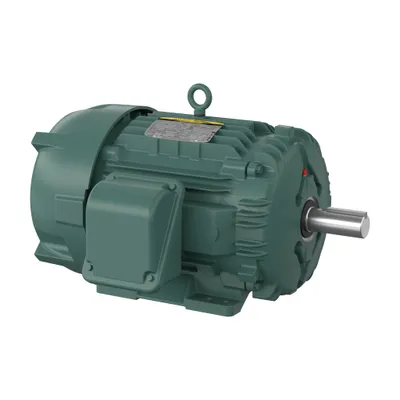

30HP,1770RPM,3PH,60HZ,286T,TEFC,F1

ABB

ECP84104T-5

30HP,1770RPM,3PH,60HZ,286T,TEFC,F1

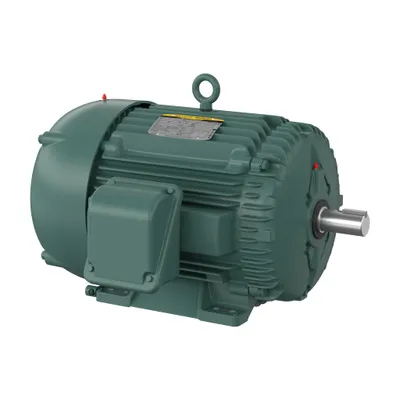

ABB

ECP84114T-5

50HP,3530RPM,3PH,60HZ,326TS,TEFC,F1

ABB

ECP84114T-4

50HP,3530RPM,3PH,60HZ,326TS,TEFC,F1

ABB

ECP83583T-5

1.5HP,3450RPM,3PH,60HZ,143T,0524M,T

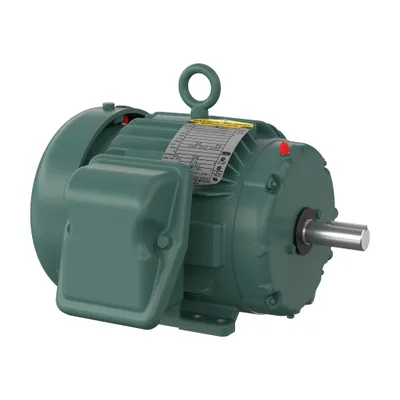

ABB

ECP83583T-4

1.5HP,3450RPM,3PH,60HZ,143,T,0524M

ABB

ECP84407T-4

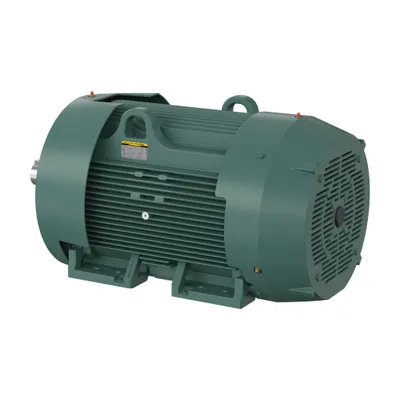

200HP,1785RPM,3PH,60HZ,447T,TEFC

ABB

ECP84407T-5

200HP,1785RPM,3PH,60HZ,447T,TEFC

ABB

ECP84313T-5

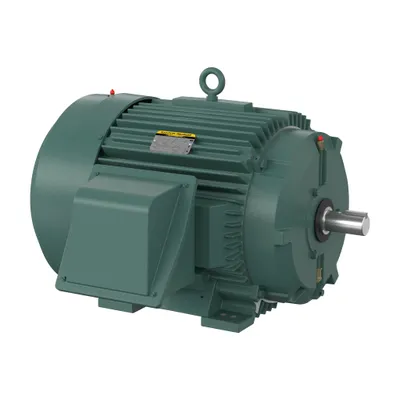

75HP,3555RPM,3PH,60HZ,365TS,A36068M

ABB

ECP84313T-4

75HP,3555RPM,3PH,60HZ,365TS,A36068M

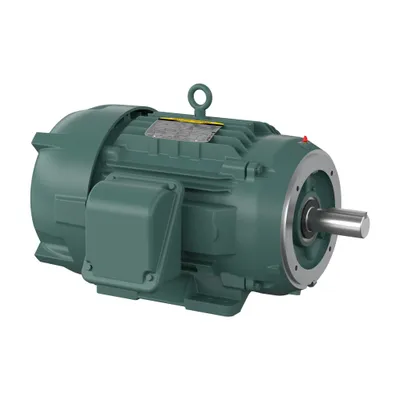

ABB

CECP84102T-4

20HP,1175RPM,3PH,60HZ,286TC,TEFC,F1

ABB

CECP84106T-4

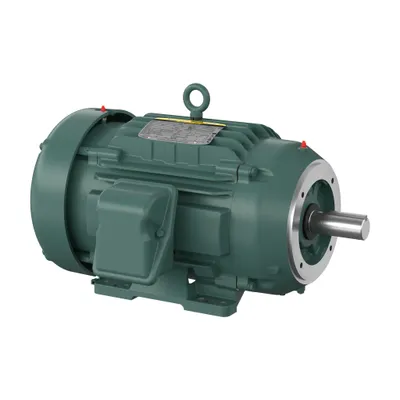

20HP,3510RPM,3PH,60HZ,256TC,TEFC,F1

ABB

CECP84108T-4

30HP,3525RPM,3PH,60HZ,286TSC,TEFC,F

ABB

CECP84107T-4

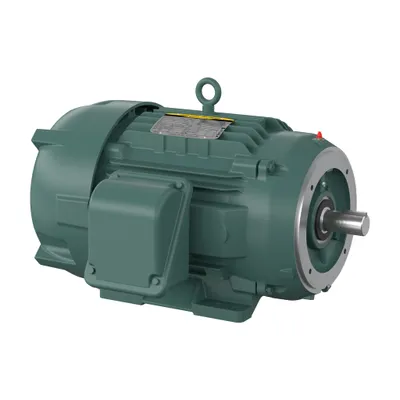

25HP,3520RPM,3PH,60HZ,284TSC,TEFC,F

ABB

CECP84109T-4

40HP,3545RPM,3PH,60HZ,324TSC,TEFC,F

ABB

ECP83768T-5

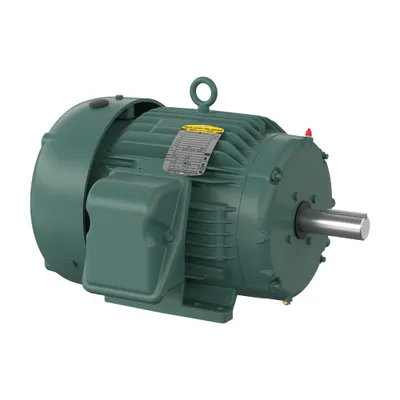

5HP,1160RPM,3PH,60HZ,215T,0748M,TEF

ABB

ECP83768T-4

5HP,1160RPM,3PH,60HZ,215T,0748M,TEF

Compare IEEE 841XL Motors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Rated Efficiency	Motor Frame Size	Product Net Weight	Dimension Diagram
VECP82334T-4	VECP82334T-4	93 %	256TC	355 lb	09LYK208
VECP82333T-4	VECP82333T-4	92.40 %	254TC	324 lb	09LYK208
ECP844206T-4	ECP844206T-4	95.80 %	449T	3020.999 lb	617434-665
ECP84108T-4	ECP84108T-4	91.70 %	286TS	442 lb	10LYJ567
ECP84108T-5	ECP84108T-5	91.70 %	286TS	422 lb	10LYJ567
ECP83771T-4	ECP83771T-4	91 %	215T	225 lb	07LYK629
ECP83771T-5	ECP83771T-5	90.20 %	215T	225 lb	07LYK629
ECP84104T-4	ECP84104T-4	93.60 %	286T	545 lb	10LYH231
ECP84104T-5	ECP84104T-5	93.60 %	286T	489 lb	10LYH231
ECP84114T-5	ECP84114T-5	93 %	326TS	662 lb	12LYF808
ECP84114T-4	ECP84114T-4	93 %	326TS	623 lb	12LYF808
ECP83583T-5	ECP83583T-5	85.50 %	143T	71 lb	05LYE811
ECP83583T-4	ECP83583T-4	85.50 %	143T	69 lb	05LYE811
ECP84407T-4	ECP84407T-4	96.20 %	447T	2562.001 lb	617434-662
ECP84407T-5	ECP84407T-5	96.20 %	447T	2606 lb	617434-662
ECP84313T-5	ECP84313T-5	94.50 %	365TS	1018.001 lb	617428-510
ECP84313T-4	ECP84313T-4	94.50 %	365TS	970 lb	617428-510
CECP84102T-4	CECP84102T-4	91.70 %	286TC	460 lb	10LY-000-170
CECP84106T-4	CECP84106T-4	91 %	256TC	328 lb	09LY-000-404
CECP84108T-4	CECP84108T-4	91.70 %	286TSC	464.999 lb	10LY-000-161
CECP84107T-4	CECP84107T-4	91.70 %	284TSC	433 lb	10LY-000-161
CECP84109T-4	CECP84109T-4	92.40 %	324TSC	587 lb	12LY-000-141
ECP83768T-5	ECP83768T-5	89.50 %	215T	226 lb	07LYJ415
ECP83768T-4	ECP83768T-4	89.50 %	215T	193 lb	07LYK629

Common to all listed parts

Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	F
NEMA Design Code	B
