Home / ABB / IEEE 841XL Motors / ABB CENCP83580T-4
ABB

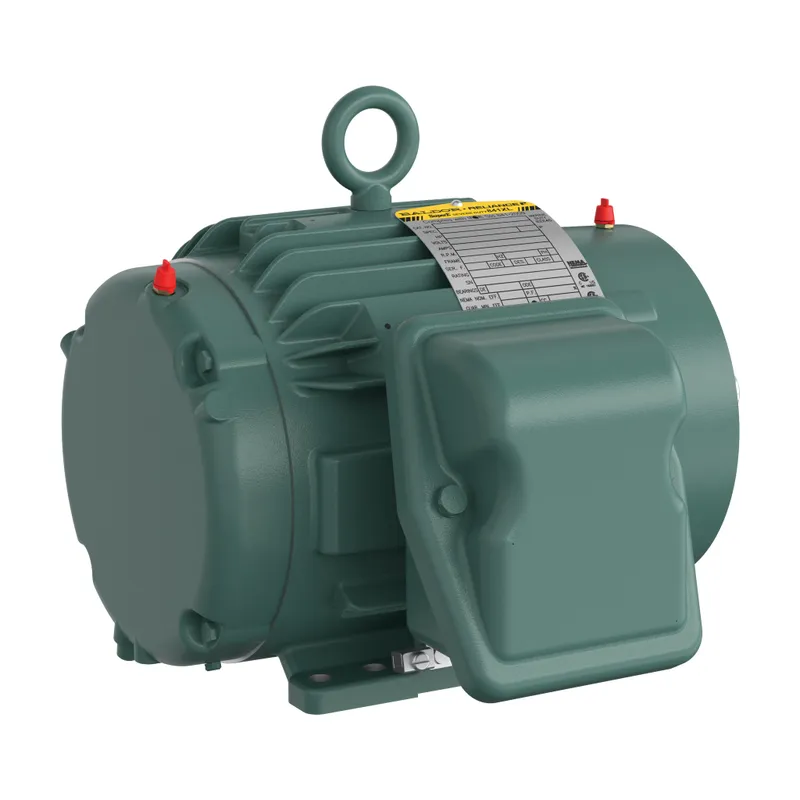

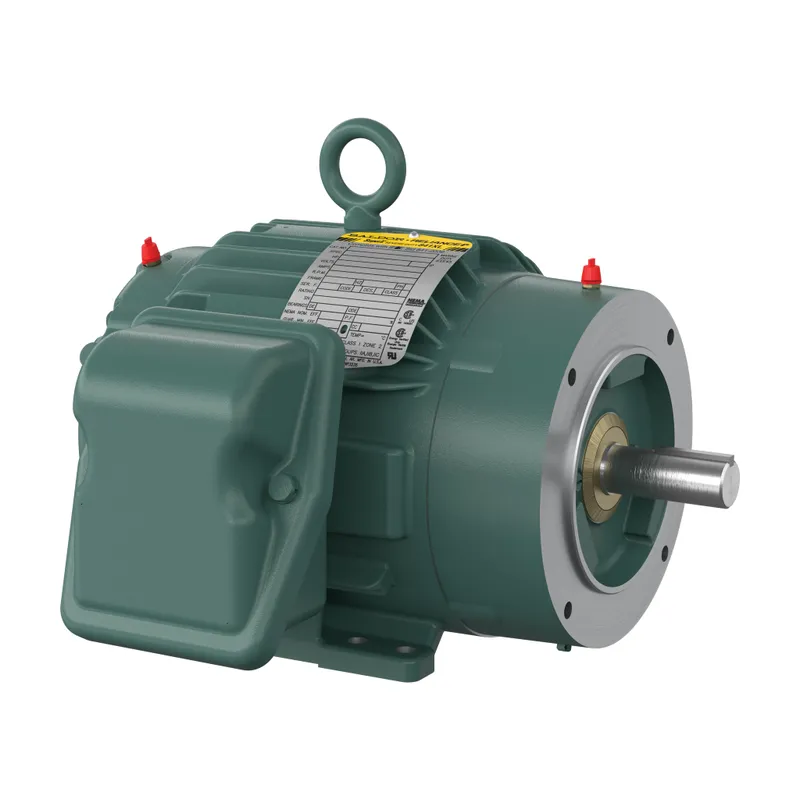

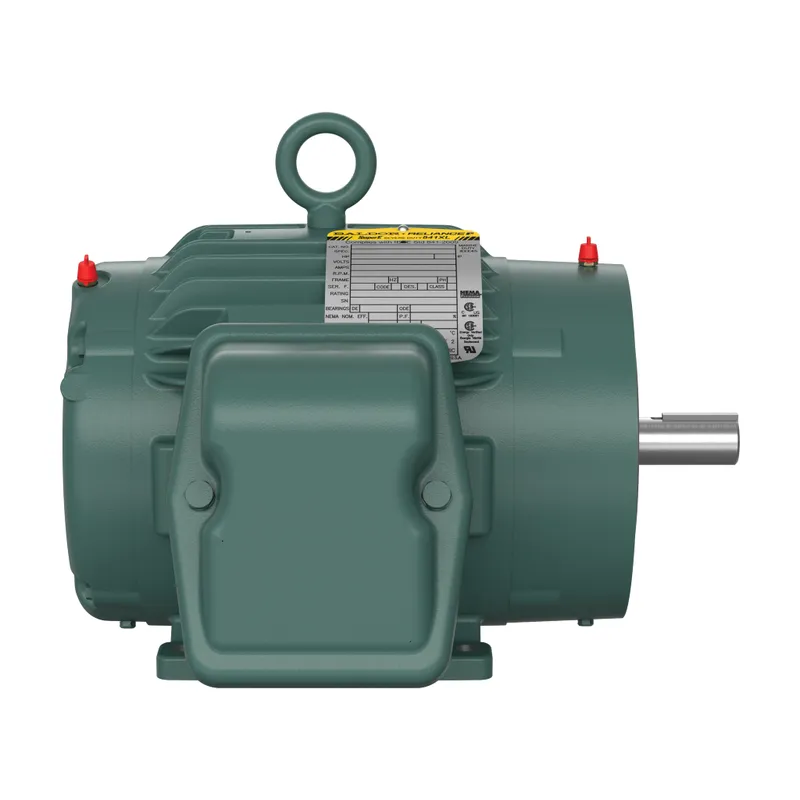

ABB CENCP83580T-4

1HP,3450RPM,3PH,60HZ,143TC,0520M,TE

MPN
CENCP83580T-4
Price and lead time confirmed within 1 business day
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

What happens next
  1. We check stock, condition and lead time
  2. You get a written quote by email
  3. Approve it and we ship — in-stock parts within 1 business day
  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • Ships via
  • 100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CENCP83580T-4?

Severe Duty Motor 1 Hp 460 V (CENCP83580T-4)

Specifications

Ordering

Catalog NumberCENCP83580T-4
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015100
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency Level2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles2P
Number of SpeedsSingle Speed
Power Factor88 %
Rated Efficiency77 %
Service Factor1.15
Temperature ClassT3C
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)3600 r/min
Output Power1 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTENV
Explosion Proof Group ClassClass I, Group A, B, C & D A
Frame MaterialCast Iron
Motor Frame Size143TC
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height13.123 in
Product Net Weight61 lb
Product Net Width13.75 in
Dimension Diagram05LYF127

Certificates and Declarations

Certification AgencyCCSA US, CSA EEV, NEMA_PREMIUM, UR
IDEA Granular Category Code (IGCC)1325 >> General purpose motor AC
ETIM 7EC001851 - Electric motor

CENCP83580T-4: frequently asked questions

When can CENCP83580T-4 be shipped?

CENCP83580T-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CENCP83580T-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CENCP83580T-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CENCP83580T-4, subject to availability and destination.
