IEEE 841XL Motors Parts

ABB

ECP83582T-5

1HP,1170RPM,3PH,60HZ,145T,0526M,TEF

ABB

ECP83582T-4

1HP,1155RPM,3PH,60HZ,145T,0526M,TEF

ABB

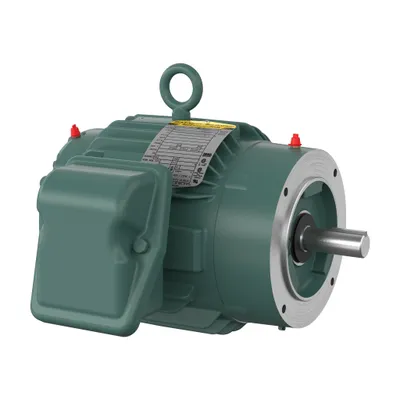

VENCP83581T-4

1HP,1775RPM,3PH,60HZ,143TC,0524M,TE

ABB

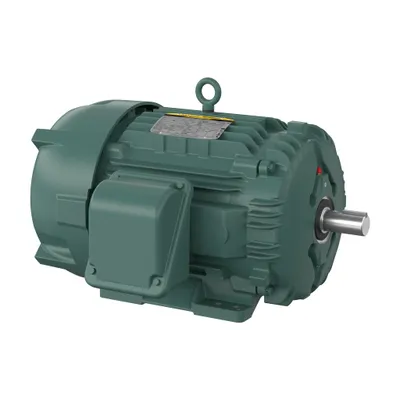

ECP84107T-5

25HP,3520RPM,3PH,60HZ,284TS,TEFC,F1

ABB

ECP84107T-4

25HP,3520RPM,3PH,60HZ,284TS,TEFC,F1

ABB

CECP82332T-4

10HP,1180RPM,3PH,60HZ,256TC,TEFC,F1

ABB

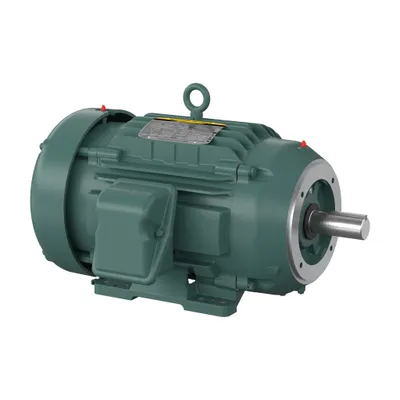

CECP82334T-4

20HP,1760RPM,3PH,60HZ,256TC,TEFC,F1

ABB

CECP82333T-4

15HP,1760RPM,3PH,60HZ,254TC,TEFC,F1

ABB

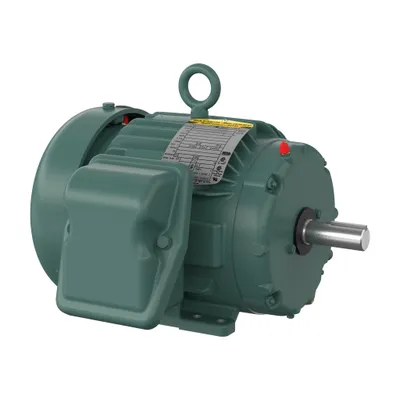

ECP83587T-5

2HP,1765RPM,3PH,60HZ,145T,0528M,TEF

ABB

ECP83587T-4

2HP,1755RPM,3PH,60HZ,145T,0526M,TEF

ABB

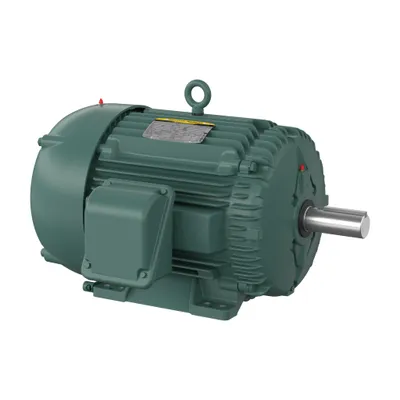

ECP84117T-5

30HP,1180RPM,3PH,60HZ,326T,TEFC,F1

ABB

ECP84117T-4

30HP,1180RPM,3PH,60HZ,326T,TEFC,F1

ABB

ECP83586T-5

2HP,3490RPM,3PH,60HZ,143T,0526M,TEF

ABB

ECP83586T-4

2HP,3490RPM,3PH,60HZ,145T,0526M,TEF

ABB

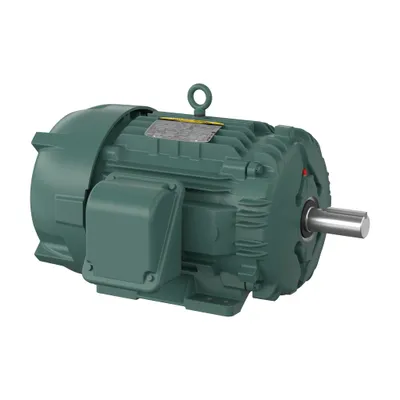

ECP84100T-5

15HP,1180RPM,3PH,60HZ,284T,TEFC,F1

ABB

ECP84110T-5

40HP,1770RPM,3PH,60HZ,324T,TEFC,F1

ABB

ECP82394T-5

15HP,3525RPM,3PH,60HZ,254T,TEFC,F1

ABB

ECP82334T-4

20HP,1760RPM,3PH,60HZ,256T,TEFC,F1

ABB

ECP84100T-4

15HP,1180RPM,3PH,60HZ,284T,TEFC,F1

ABB

ECP84110T-4

40HP,1770RPM,3PH,60HZ,324T,TEFC,F1

ABB

ECP82394T-4

15HP,3520RPM,3PH,60HZ,254T,TEFC,F1

ABB

ECP82334T-5

20HP,1760RPM,3PH,60HZ,256T,TEFC,F1

ABB

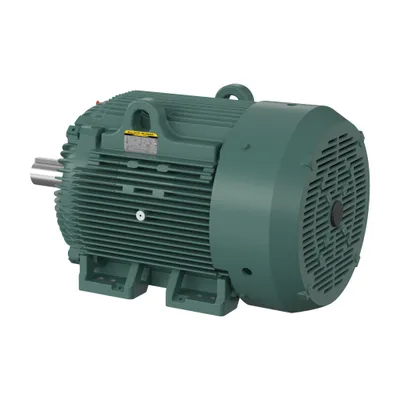

ECP84404T-4

75HP,1185RPM,3PH,60HZ,405T,A40072M

ABB

ECP84404T-5

75HP,1185RPM,3PH,60HZ,405T,A40072M

Compare IEEE 841XL Motors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Power Factor	Rated Efficiency	Motor Frame Size	Product Net Weight
ECP83582T-5	ECP83582T-5	66 %	82.50 %	145T	69 lb
ECP83582T-4	ECP83582T-4	66 %	82.50 %	145T	69 lb
VENCP83581T-4	VENCP83581T-4	72 %	87.50 %	143TC	63 lb
ECP84107T-5	ECP84107T-5	90 %	91.70 %	284TS	506.001 lb
ECP84107T-4	ECP84107T-4	90 %	91.70 %	284TS	360 lb
CECP82332T-4	CECP82332T-4	72 %	91 %	256TC	362 lb
CECP82334T-4	CECP82334T-4	87 %	93 %	256TC	233 lb
CECP82333T-4	CECP82333T-4	85 %	92.40 %	254TC	316 lb
ECP83587T-5	ECP83587T-5	80 %	86.50 %	145T	77 lb
ECP83587T-4	ECP83587T-4	74 %	86.50 %	145T	78 lb
ECP84117T-5	ECP84117T-5	80 %	93 %	326T	635 lb
ECP84117T-4	ECP84117T-4	80 %	93 %	326T	637 lb
ECP83586T-5	ECP83586T-5	88 %	85.50 %	145T	79 lb
ECP83586T-4	ECP83586T-4	88 %	85.50 %	145T	78 lb
ECP84100T-5	ECP84100T-5	77 %	91.70 %	284T	451 lb
ECP84110T-5	ECP84110T-5	86 %	94.10 %	324T	635 lb
ECP82394T-5	ECP82394T-5	88 %	91 %	254T	303 lb
ECP82334T-4	ECP82334T-4	87 %	93 %	256T	366.001 lb
ECP84100T-4	ECP84100T-4	77 %	91.70 %	284T	447 lb
ECP84110T-4	ECP84110T-4	86 %	94.10 %	324T	629 lb
ECP82394T-4	ECP82394T-4	89 %	91 %	254T	295.001 lb
ECP82334T-5	ECP82334T-5	87 %	93 %	256T	361 lb
ECP84404T-4	ECP84404T-4	85 %	94.50 %	405T	1327 lb
ECP84404T-5	ECP84404T-5	85 %	95 %	405T	1284 lb

Common to all listed parts

Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Duty Time	60 Min
Insulation Class	F
NEMA Design Code	B
