Food Safe three phase motors Parts

ABB

FSWDM3611T-E

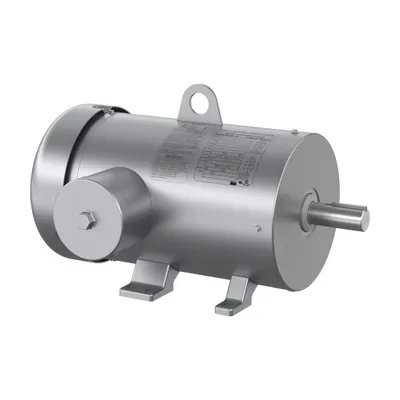

3HP,1760RPM,3PH,60HZ,182T,3636M,TEF

ABB

FSWDM3551TP-E

3HP,1690RPM,3PH,60HZ,145T,3540M,TEFC,F1

ABB

CFSWDM3551TP-E

3HP,1690RPM,3PH,60HZ,143TC,3540M,TEFC,F1

ABB

CFSWDNM3558T-E-G

2HP,1760RPM,3PH,60HZ,145TC,3546M,TE

ABB

CFSWDM3538-E-G

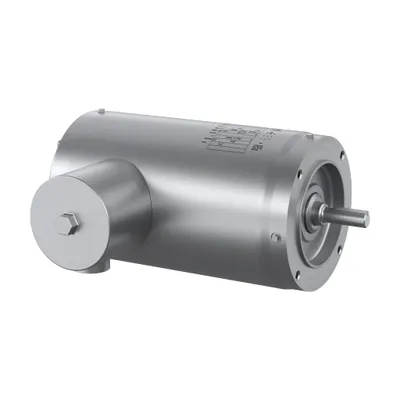

.5HP,1770RPM,3PH,60HZ,56C,3512M,TEN

ABB

CFSWDM3615T-E-G

5HP,1750RPM,3PH,60HZ,184TC,3646M,TE

ABB

CFSWDNM3554T-E-G

1.5HP,1765RPM,3PH,60HZ,145TC,3540M

ABB

CFSWDM3711T-E-G

10HP,3500RPM,3PH,60HZ,215TC,3744M,T

ABB

CFSWDM3559-E

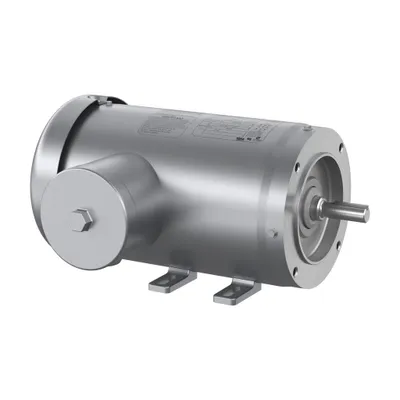

3HP,3470RPM,3PH,60HZ,56C,TEFC,F1

ABB

CFSWDNM3558-E-G

2HP,1760RPM,3PH,60HZ,56C,3546M,TENV

ABB

VFSWDM3538-E-G

.5HP,1770RPM,3PH,60HZ,56C,3512M,TEN

ABB

VFSWDM3651T-E-G

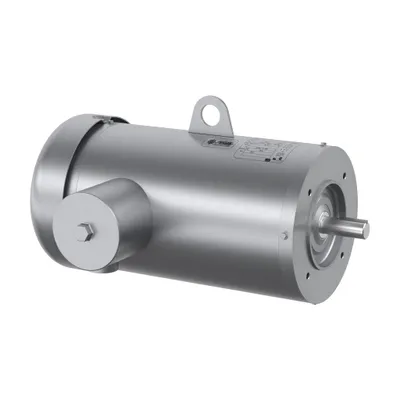

3HP,1760RPM,3PH,60HZ,145TC,3636M,TE

ABB

CFSWDM3710T-E-G

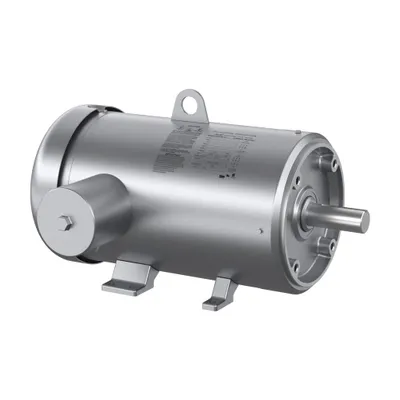

7.5HP,1770RPM,3PH,60HZ,213TC,3740M

ABB

CFSWDM3559-E-G

3/2.2KW 4:1CT,10:1VTHP,3470 1/MIN

ABB

VFSWDM3559-E-G

3HP,3470RPM,3PH,60HZ,56C,3546M,TEFC

ABB

VFSWDM3615T-E-G

5HP,1750RPM,3PH,60HZ,184TC,3646M,TE

ABB

CFSWDM3714T-E-G

10HP,1770RPM,3PH,60HZ,215TC,3756M,T

ABB

CFSWDNM3554-E-G

1.5HP,1765RPM,3PH,60HZ,56C,3540M,TE

ABB

FSWDM41903T

25HP,1775RPM,3PH,60HZ,284T,4068M,TE

ABB

FSWDM41904T

30HP,1775RPM,3PH,60HZ,284T,4074M,TE

ABB

VFSWDNM3558-E-G

2HP,1760RPM,3PH,60HZ,56C,3546M,TENV

ABB

VFSWDNM3554-E-G

1.5HP,1765RPM,3PH,60HZ,56C,3540M,TE

ABB

CFSWDM3704T-E

3HP,1170RPM,3PH,60HZ,213TC,3748M,TE

ABB

VFSWDM3542-E-G

.75HP,1770RPM,3PH,60HZ,56C,3520M,TE

Compare Food Safe three phase motors

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Power Factor	Output Power	Product Net Weight	Dimension Diagram
FSWDM3611T-E	FSWDM3611T-E	76 %	3 Hp	86 lb	36LYR625
FSWDM3551TP-E	—	—	—	59 lb	—
CFSWDM3551TP-E	—	—	—	59 lb	—
CFSWDNM3558T-E-G	CFSWDNM3558T-E-G G	78 %	2 Hp	63 lb	35LYE6049
CFSWDM3538-E-G	CFSWDM3538-E-G G	64 %	0.5 Hp	35 lb	35LYE6048
CFSWDM3615T-E-G	CFSWDM3615T-E-G G	81 %	5 Hp	101 lb	36LY-000-276
CFSWDNM3554T-E-G	CFSWDNM3554T-E-G G	77 %	1.5 Hp	59 lb	35LYE6049
CFSWDM3711T-E-G	CFSWDM3711T-E-G G	94 %	10 Hp	154 lb	37LY-000-395
CFSWDM3559-E	CFSWDM3559-E	90 %	3 Hp	61 lb	35LYE4741
CFSWDNM3558-E-G	CFSWDNM3558-E-G G	78 %	2 Hp	63 lb	35LYE6048
VFSWDM3538-E-G	VFSWDM3538-E-G G	64 %	0.5 Hp	35 lb	35LYE6050
VFSWDM3651T-E-G	VFSWDM3651T-E-G G	76 %	3 Hp	83 lb	36LY-000-280
CFSWDM3710T-E-G	CFSWDM3710T-E-G G	81 %	7.5 Hp	136 lb	37LY-000-395
CFSWDM3559-E-G	CFSWDM3559-E-G G	90 %	3 Hp	61 lb	35LY-000-653
VFSWDM3559-E-G	VFSWDM3559-E-G G	90 %	3 Hp	61 lb	35LY-000-654
VFSWDM3615T-E-G	VFSWDM3615T-E-G G	81 %	5 Hp	101 lb	36LY-000-277
CFSWDM3714T-E-G	CFSWDM3714T-E-G G	81 %	10 Hp	187 lb	37LY-000-395
CFSWDNM3554-E-G	CFSWDNM3554-E-G G	77 %	1.5 Hp	59 lb	35LYE6048
FSWDM41903T	FSWDM41903T	84 %	25 Hp	378 lb	40LYE430
FSWDM41904T	FSWDM41904T	82 %	30 Hp	395 lb	40LYE430
VFSWDNM3558-E-G	VFSWDNM3558-E-G G	78 %	2 Hp	63 lb	35LYE6050
VFSWDNM3554-E-G	VFSWDNM3554-E-G G	77 %	1.5 Hp	59 lb	35LYE6050
CFSWDM3704T-E	CFSWDM3704T-E	69 %	3 Hp	158 lb	37LYQ242
VFSWDM3542-E-G	VFSWDM3542-E-G G	70 %	0.750.000 Hp	37 lb	35LYE6050

Common to all listed parts

Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
