ABB CFSWDNM3558T-E-G

2HP,1760RPM,3PH,60HZ,145TC,3546M,TE

MPN: CFSWDNM3558T-E-G
Category: Food Safe three phase motors

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CFSWDNM3558T-E-G?

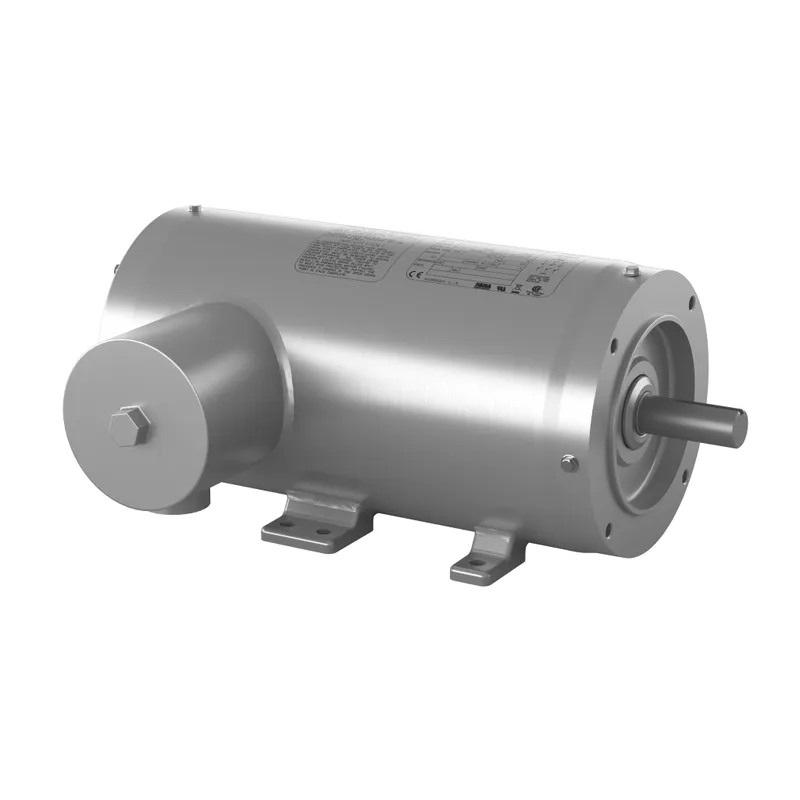

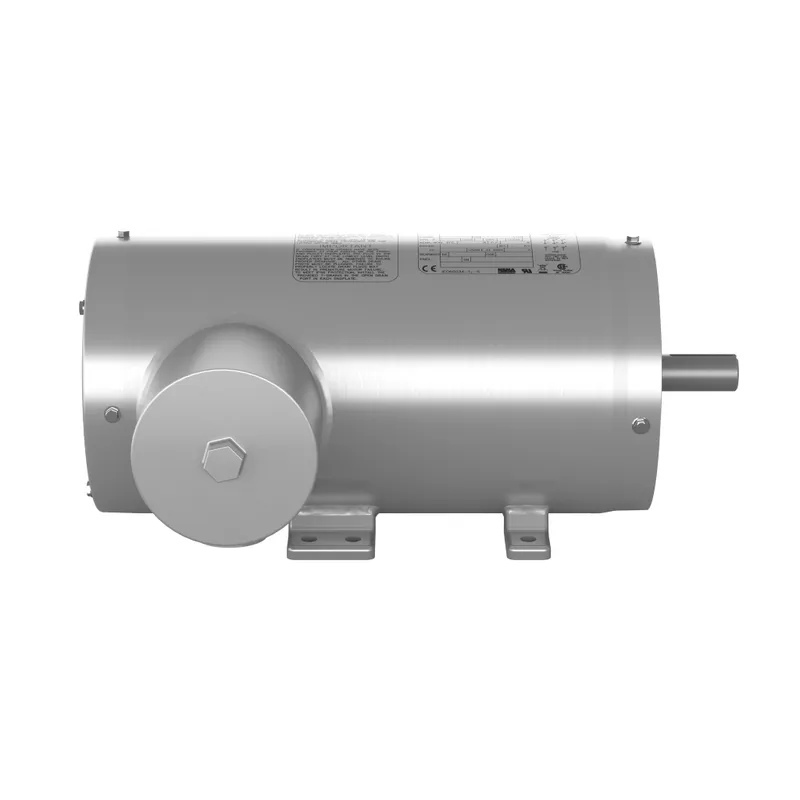

Washdown Motor 2 Hp 230 V (CFSWDNM3558T-E-G)

Specifications

Ordering

Catalog Number	CFSWDNM3558T-E-G G
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	2015 Small Motor Standard, IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	78 %
Rated Efficiency	88.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	2 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TENV
Frame Material	Stainless Steel
Motor Frame Size	145TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	63 lb
Product Net Width	13.75 in
Dimension Diagram	35LYE6049

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, WEEE
ETIM 7	EC001851 - Electric motor

CFSWDNM3558T-E-G: frequently asked questions

When can CFSWDNM3558T-E-G be shipped?

CFSWDNM3558T-E-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CFSWDNM3558T-E-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CFSWDNM3558T-E-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CFSWDNM3558T-E-G, subject to availability and destination.
