Home / ABB / Food Safe three phase motors / ABB CFSWDM3538-E-G

ABB

ABB CFSWDM3538-E-G

.5HP,1770RPM,3PH,60HZ,56C,3512M,TEN

MPN: CFSWDM3538-E-G
Category: Food Safe three phase motors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare ABB parts? We buy surplus →

What is the ABB CFSWDM3538-E-G?

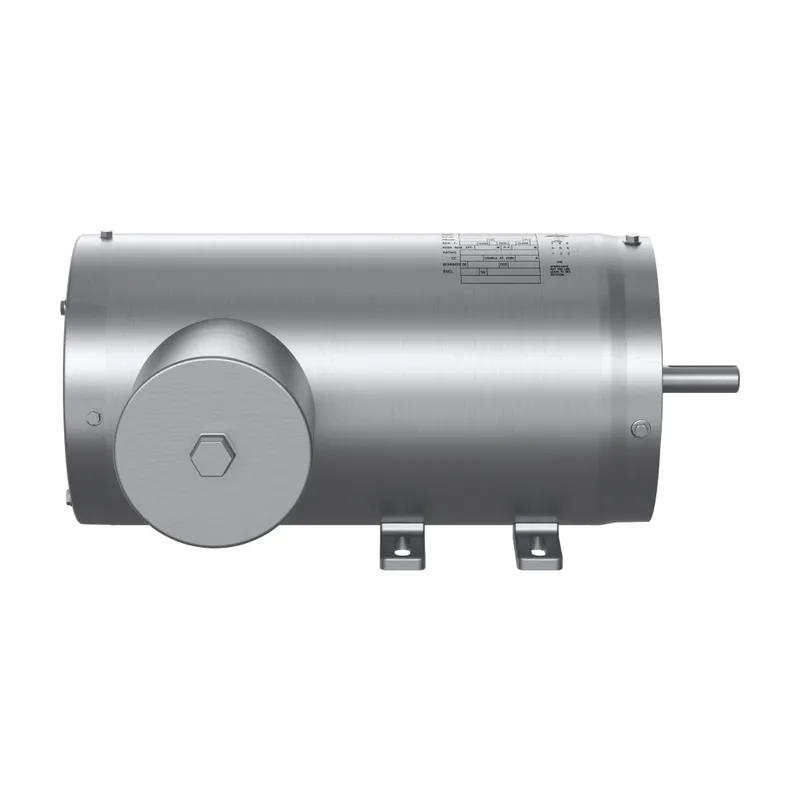

Washdown Motor 0.5 Hp 208 V (CFSWDM3538-E-G)

Specifications

Ordering

Catalog Number	CFSWDM3538-E-G G
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015100
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	Not Regulated / Exempt
Insulation Class	H
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	Single Speed
Power Factor	64 %
Rated Efficiency	84 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	1800 r/min
Output Power	0.5 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TENV
Frame Material	Stainless Steel
Motor Frame Size	56C
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	13.123 in
Product Net Weight	35 lb
Product Net Width	13.75 in
Dimension Diagram	35LYE6048

Certificates and Declarations

Certification Agency	CURUSEEV, NEMA_PREMIUM, WEEE
ETIM 7	EC001851 - Electric motor
