Stainless Steel Parts

ABB

CESSWDM3710T-5

7.5HP,1770RPM,3PH,60HZ,213TC,3738M

ABB

VESSWDM3558T-5

2HP,1765RPM,3PH,60HZ,145TC,3528M,TE

ABB

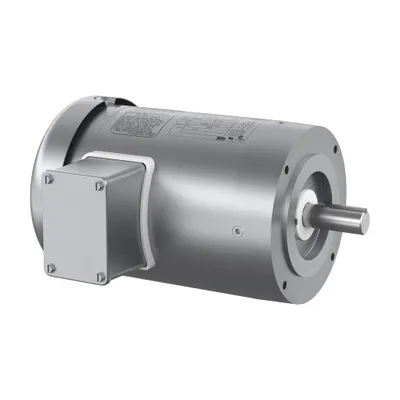

VESSWDM3554T-5

1.5HP,1770RPM,3PH,60HZ,145TC,3524M

ABB

CSSWDM3537

.5HP,3450RPM,3PH,60HZ,56C,3512M,TEN

ABB

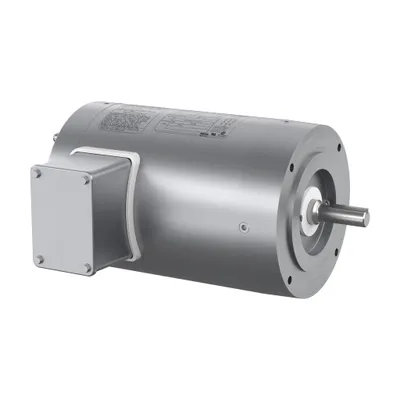

VSSWDM3534

.33HP,1780RPM,3PH,60HZ,56C,3512M,TE

ABB

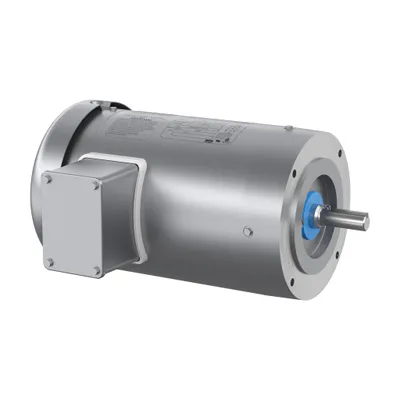

VSSFWDM3542

0.75HP,1765RPM,3PH,60HZ,56C,3514M,T

ABB

VSSWDM3542

0.75HP,1765RPM,3PH,60HZ,56C,3514M,T

ABB

EWDM4314T

60HP,1780RPM,3PH,60HZ,364T,A3658M,T

ABB

CESSWDNM3610T-5

3HP,3500RPM,3PH,60HZ,182TC,3646M,TE

ABB

JMEWDM4314T

60HP,1780RPM,3PH,60HZ,364TCZ,TEFC,F

ABB

EWDM4404T

75HP,1185RPM,3PH,60HZ,405T,TEFC,F1

ABB

CEWDM4468T

60HP,890RPM,3PH,60HZ,405TC,TEFC,F1

ABB

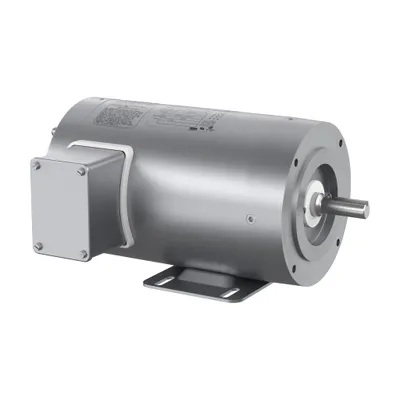

CESSWDM3550-5

1.5HP,3450RPM,3PH,60HZ,56C,3532M,TE

ABB

EWDM4313T

75HP,3555RPM,3PH,60HZ,365TS,TEFC,F1

ABB

CESSWDNM3555T-5

2HP,3475RPM,3PH,60HZ,145TC,3546M,TE

ABB

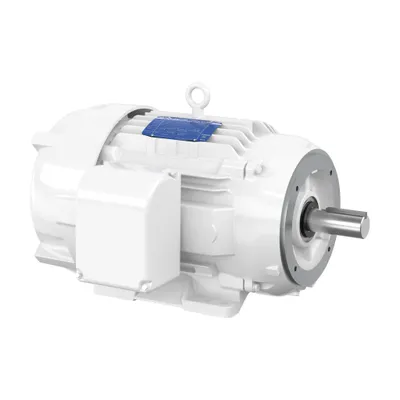

CEWDM2402T

10HP,880RPM,3PH,60HZ,284TC,TEFC,F1

ABB

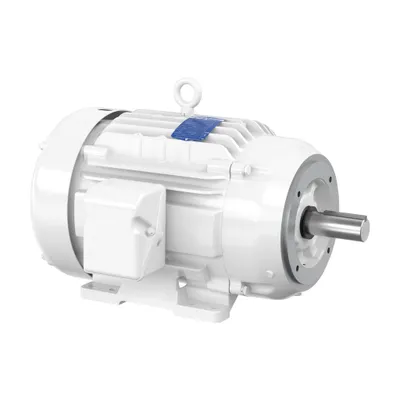

CEWDM2401T

7.5HP,880RPM,3PH,60HZ,256TC,TEFC,F1

ABB

EWDM4102T

20HP,1175RPM,3PH,60HZ,286T,TEFC,F1

ABB

EWDM4112T

20HP,880RPM,3PH,60HZ,324T,1256M,TEF

ABB

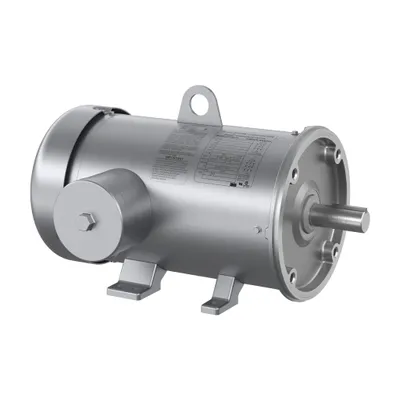

VFSWDM3613T-4E

5HP,3500RPM,3PH,60HZ,182TC,3634M,TE

ABB

EWDM4108T

30HP,3520RPM,3PH,60HZ,286TS,TEFC,F1

ABB

CFSWDM3613T-4E

5HP,3500RPM,3PH,60HZ,182TC,3634M,TE

ABB

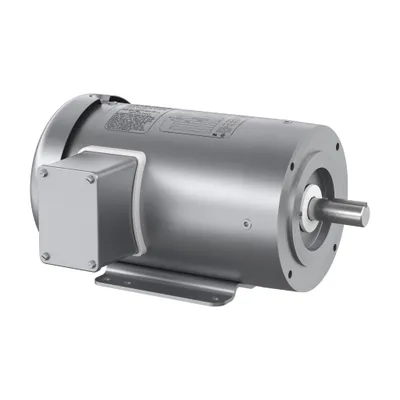

CESSWDM3559T-5

3HP,3470RPM,3PH,60HZ,145TC,3546M,TE

ABB

JMEWDM4108T

30HP,3520RPM,3PH,60HZ,286JM,TEFC,F1

Compare Stainless Steel

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Power Factor	Motor Frame Size	Product Net Weight	Dimension Diagram
CESSWDM3710T-5	CESSWDM3710T-5	82 %	213TC	139 lb	37LYJ639
VESSWDM3558T-5	VESSWDM3558T-5	78 %	145TC	56 lb	35LYVV821
VESSWDM3554T-5	VESSWDM3554T-5	74 %	145TC	45 lb	35LYVV821
CSSWDM3537	CSSWDM3537	76 %	56C	36 lb	35LYV814
VSSWDM3534	VSSWDM3534	49 %	56C	35 lb	35LYV824
VSSFWDM3542	VSSFWDM3542	78 %	56C	44 lb	35LYW179
VSSWDM3542	VSSWDM3542	78 %	56C	42 lb	35LYV824
EWDM4314T	EWDM4314T	84 %	364T	961 lb	617428-593
CESSWDNM3610T-5	CESSWDNM3610T-5	91 %	182TC	96 lb	—
JMEWDM4314T	JMEWDM4314T	84 %	364TCZ	961 lb	617436-346
EWDM4404T	EWDM4404T	85 %	405T	1322 lb	617429-533
CEWDM4468T	CEWDM4468T	77 %	405TC	1216 lb	617429-503
CESSWDM3550-5	CESSWDM3550-5	92 %	56C	50 lb	35LYV814
EWDM4313T	EWDM4313T	92 %	365TS	1005 lb	617428-298
CESSWDNM3555T-5	CESSWDNM3555T-5	89 %	143TC	61 lb	35LYWW513
CEWDM2402T	CEWDM2402T	71 %	284TC	391 lb	10LYP093
CEWDM2401T	CEWDM2401T	67 %	256TC	320 lb	09LYG221
EWDM4102T	EWDM4102T	78 %	286T	429 lb	10LYN057
EWDM4112T	EWDM4112T	69 %	324T	578 lb	12LYP064
VFSWDM3613T-4E	VFSWDM3613T-4E	95 %	182TC	81 lb	—
EWDM4108T	EWDM4108T	89 %	286TS	299 lb	09LYK556
CFSWDM3613T-4E	CFSWDM3613T-4E	95 %	182TC	81 lb	—
CESSWDM3559T-5	CESSWDM3559T-5	91 %	145TC	73 lb	35LYVV818
JMEWDM4108T	JMEWDM4108T	89 %	286JM	459 lb	10LY-000-754

Common to all listed parts

Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Ambient Temperature	40 °C
Number of Phases	3-phase
Type of Duty	Continuous
Mounting Position	F1
Brake Present	No
