ABB CESSWDNM3555T-5

2HP,3475RPM,3PH,60HZ,145TC,3546M,TE

MPN: CESSWDNM3555T-5
Category: Stainless Steel

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare ABB parts? We buy surplus →

What is the ABB CESSWDNM3555T-5?

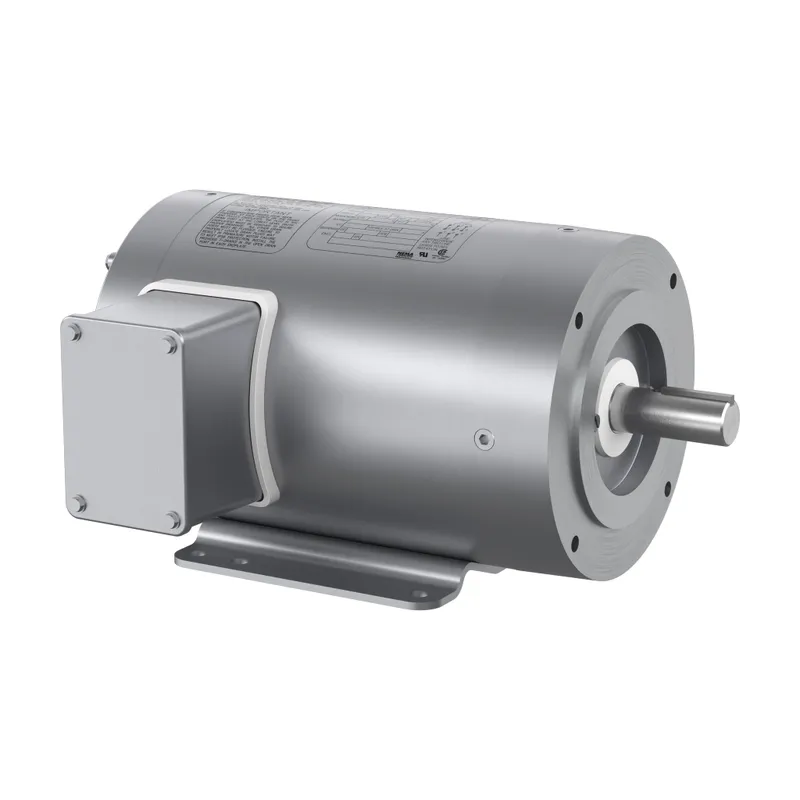

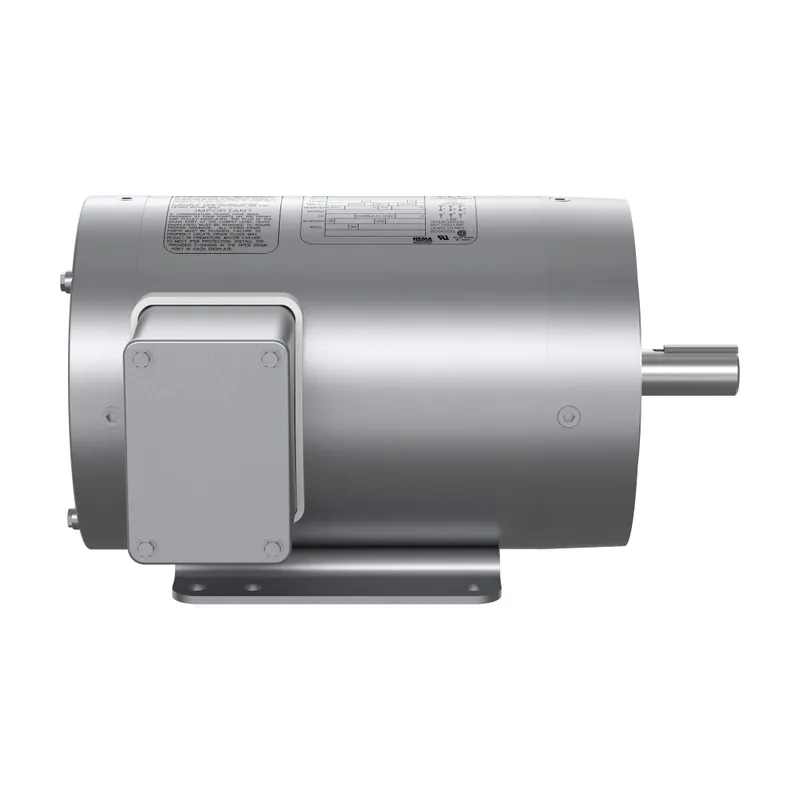

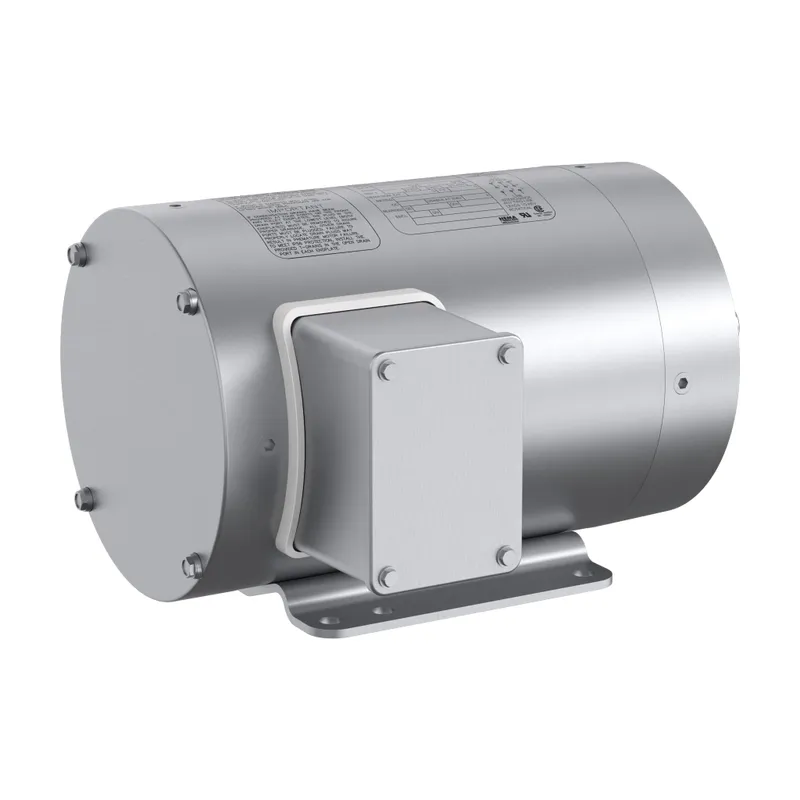

Washdown Motor 2 Hp 575 V (CESSWDNM3555T-5)

Specifications

Ordering

Catalog Number	CESSWDNM3555T-5
Brand / Label	Baldor-Reliance
Country or Territory of Origin	United States
Customs Tariff Number	85015220
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Duty Time	60 Min
Efficiency Level	IE3, Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	2P
Number of Speeds	Single Speed
Power Factor	89 %
Rated Efficiency	88.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct On Line
Synchronous Speed (vsyn)	3600 r/min
Output Power	2 Hp

Mechanical

Drive End Flange Type	C-Face
Enclosure Type	TENV
Frame Material	Stainless Steel
Motor Frame Size	143TC
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No

Dimensions

Product Net Height	0 in
Product Net Weight	61 lb
Product Net Width	0 in
Dimension Diagram	35LYWW513

Certificates and Declarations

Certification Agency	CSA, CSA EEV, NEMA PREMIUM, NEMA_PREMIUM, UR
ETIM 7	EC001851 - Electric motor
