ABB CEWDM2402T

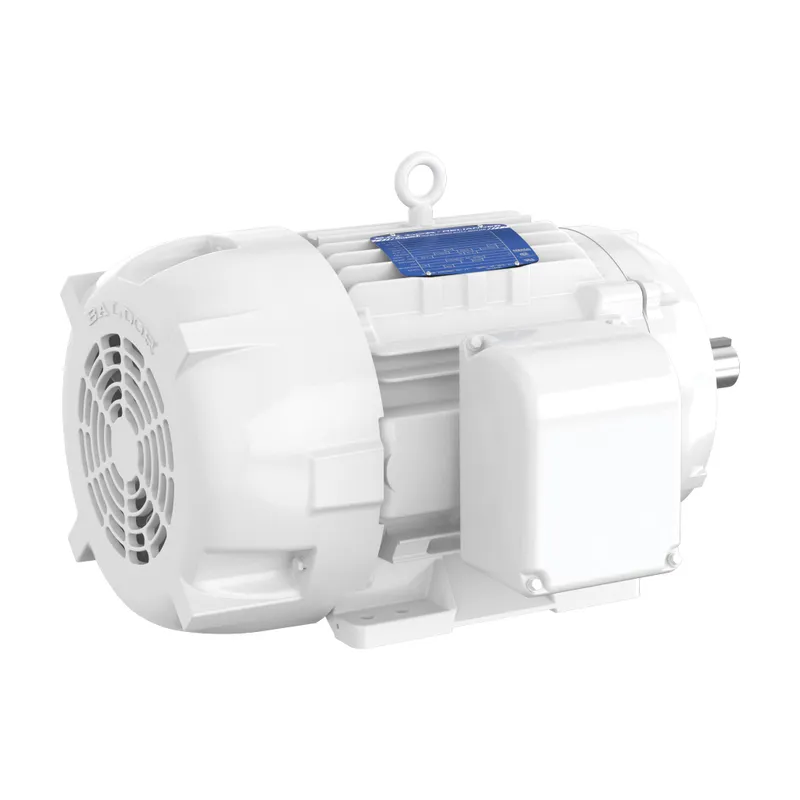

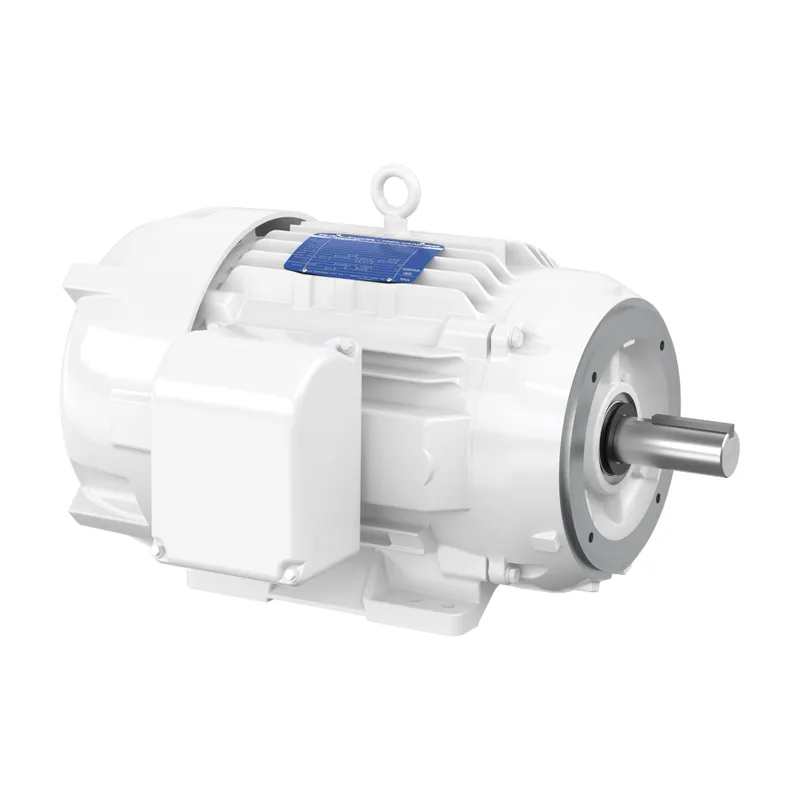

10HP,880RPM,3PH,60HZ,284TC,TEFC,F1
- MPN
- CEWDM2402T
- Category
- Stainless Steel
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the ABB CEWDM2402T?
Washdown Motor 10 Hp 230 V (CEWDM2402T)
Specifications
Ordering
| Catalog Number | CEWDM2402T |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015220 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 8P |
| Number of Speeds | Single Speed |
| Power Factor | 71 % |
| Rated Efficiency | 89.50 % |
| Service Factor | 1.00 |
| Type of Duty | Continuous |
| Starting of Motor | Direct On Line |
| Synchronous Speed (vsyn) | 900 r/min |
| Output Power | 10 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | TEFC |
| Frame Material | Cast Iron |
| Motor Frame Size | 284TC |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 19.625 in |
| Product Net Weight | 391 lb |
| Product Net Width | 23.75 in |
| Dimension Diagram | 10LYP093 |
Certificates and Declarations
| Certification Agency | CSA EEV, CURUSEEV, NEMA_PREMIUM, UR |
| ETIM 7 | EC001851 - Electric motor |
