EC Titanium™ (General Purpose SP5+) Parts

ABB

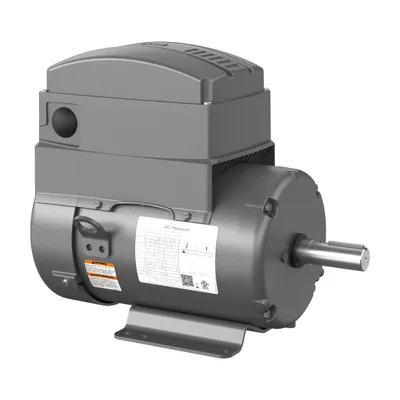

ECS101T4H7EF4

7.5HP,1800RPM,3PH,60HZ,184T,TEFC,TO

ABB

ECS101M0H2DB4

2HP,1800RPM,3PH,60HZ,145TC,3524B,TE

ABB

ECS101M0H10FB4

10HP,1800RPM,3PH,60HZ,215TC,TEFC,N

ABB

ECS101M0H15FC4

15HP,1800RPM,3PH,60HZ,215TC,3760B,T

ABB

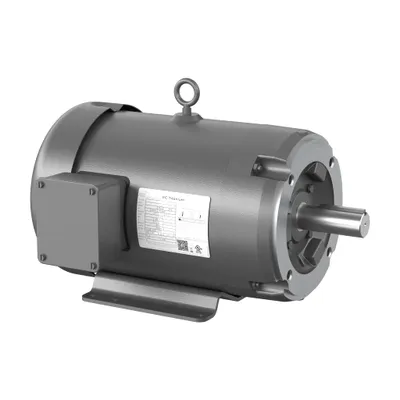

ECS101M0H15FB4

15HP,1800RPM,3PH,60HZ,215TC,TEFC,NO

ABB

ECS101M0H15FF4

15HP,1800RPM,3PH,60HZ,215T,TEFC,N

ABB

ECS100T2H3EB4

3HP,1800RPM,3PH,60HZ,182TC,TEFC,TOP

ABB

ECS101T2H3EF4

3HP,1800RPM,3PH,60HZ,182T,TEFC,TOP

ABB

ECS101T3K1P5DF4

1.5KW,1500RPM,3PH,50HZ,D90S,3524B,T

ABB

ECS100A4H5EF4

5HP,1800RPM,3PH,60HZ,184T,TEFC,AXIA

ABB

ECS100T8H1DF4

1HP,1800RPM,3PH,60HZ,145T,3516B,TEF

ABB

ECS101A8H2DF4

2HP,1800RPM,3PH,60HZ,145T,3524B,TEF

ABB

ECS101T2K1P5DF4

1.5KW,1500RPM,3PH,50HZ,D90S,3524B,T

ABB

ECS100T4H2DF4

2HP,1800RPM,3PH,60HZ,145T,3524B,TEF

ABB

ECS100A8H2DF4

2HP,1800RPM,3PH,60HZ,145T,3524B,TEF

ABB

ECS101A4H7EF4

7.5HP,1800RPM,3PH,60HZ,184T,TEFC,AX

ABB

ECS100A4H7EB4

7.5HP,1800RPM,3PH,60HZ,184TC,TEFC,A

ABB

ECC101M0H15FF4

ABB

ECS100T8H2DB4

2HP,1800RPM,3PH,60HZ,145TC,3524B,TE

ABB

ECC101M0H10FF4

ABB

ECS101A3K4EC4

4KW,1500RPM,3PH,50HZ,D112C,3632B,TE

ABB

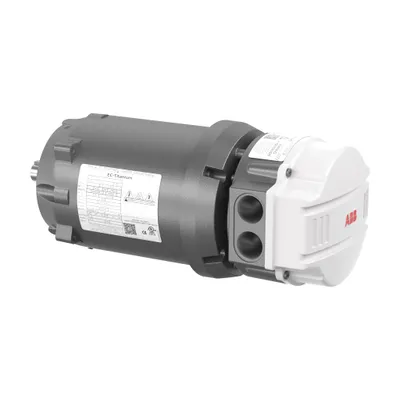

ECS101A8K1P5DC4

1.5KW,1500RPM,3PH,50HZ,D90C,3524B,T

ABB

ECS101M0H10FF4

10HP,1800RPM,3PH,60HZ,215T,TEFC,N

ABB

ECS101T4H2DF4

2HP,1800RPM,3PH,60HZ,145T,3524B,TEF

Compare EC Titanium™ (General Purpose SP5+)

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Rated Efficiency	Output Power	Motor Frame Size	Product Net Weight
ECS101T4H7EF4	ECS101T4H7EF4	94 %	7.5 Hp	184T	109 lb
ECS101M0H2DB4	ECS101M0H2DB4	90.4 %	2 Hp	145TC	42 lb
ECS101M0H10FB4	ECS101M0H10FB4	94.80 %	10 Hp	215TC	131 lb
ECS101M0H15FC4	ECS101M0H15FC4	95.60 %	15 Hp	215TC	262 lb
ECS101M0H15FB4	ECS101M0H15FB4	95.60 %	15 Hp	215TC	262 lb
ECS101M0H15FF4	ECS101M0H15FF4	95.60 %	15 Hp	215T	168 lb
ECS100T2H3EB4	ECS100T2H3EB4	92.80 %	3 Hp	182TC	85 lb
ECS101T2H3EF4	ECS101T2H3EF4	92.80 %	3 Hp	182T	71 lb
ECS101T3K1P5DF4	ECS101T3K1P5DF4	87.7 %	1.5 kW kW	D90S	42 lb
ECS100A4H5EF4	ECS100A4H5EF4	93.70 %	5 Hp	184T	83 lb
ECS100T8H1DF4	ECS100T8H1DF4	91.0 %	1 Hp	145T	35 lb
ECS101A8H2DF4	ECS101A8H2DF4	90.70 %	2 Hp	145T	46 lb
ECS101T2K1P5DF4	ECS101T2K1P5DF4	90.6 %	1.5 kW kW	D90S	42 lb
ECS100T4H2DF4	ECS100T4H2DF4	91.9 %	2 Hp	145T	41 lb
ECS100A8H2DF4	ECS100A8H2DF4	91.3 %	2 Hp	145T	38 lb
ECS101A4H7EF4	ECS101A4H7EF4	94 %	7.50 Hp	184T	156 lb
ECS100A4H7EB4	ECS100A4H7EB4	94 %	7.5 Hp	184TC	151 lb
ECC101M0H15FF4	ECC101M0H15FF4	—	—	—	256 lb
ECS100T8H2DB4	ECS100T8H2DB4	91.3 %	2 Hp	145TC	42 lb
ECC101M0H10FF4	ECC101M0H10FF4	—	—	—	131 lb
ECS101A3K4EC4	ECS101A3K4EC4	92.40 %	4 kW kW	112	97 lb
ECS101A8K1P5DC4	ECS101A8K1P5DC4	90.6 %	1.5 kW kW	D90C	42 lb
ECS101M0H10FF4	ECS101M0H10FF4	94.80 %	10 Hp	215T	123 lb
ECS101T4H2DF4	ECS101T4H2DF4	91.9 %	2 Hp	145T	42 lb

Common to all listed parts

Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
