Home / Motion / Motors and Generators / Low voltage motors / NEMA AC Motors / Variable Speed AC / EC Titanium™ (General Purpose SP5+)

EC Titanium™ (General Purpose SP5+) Parts

ABB

ECS101M0H7FF4

7.5HP,1800RPM,3PH,60HZ,213T,TEFC,N

ABB

ECS101M0K2P2EF4

2.2KW,1500RPM,3PH,50HZ,D112S,3624B

ABB

ECS101M0K2P2DF4

2.2KW,1800RPM,3PH,50HZ,D90S,3532B,T

ABB

ECS100T2H2DB4

2HP,1800RPM,3PH,60HZ,145TC,3524B,TE

ABB

ECS101T3K4ED4

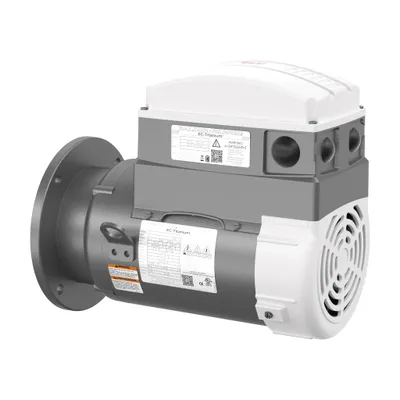

4KW,1500RPM,3PH,50HZ,D112D,3632B,TE

ABB

ECS100A4H3EF4

3HP,1800RPM,3PH,60HZ,182T,TEFC,AXIA

ABB

ECS100A4H3DF4

3HP,1800RPM,3PH,60HZ,145T,3532B,TEF

ABB

ECS100A4H1DB4

1HP,1800RPM,3PH,60HZ,145TC,3516B,TE

ABB

ECS101T4H3EF4

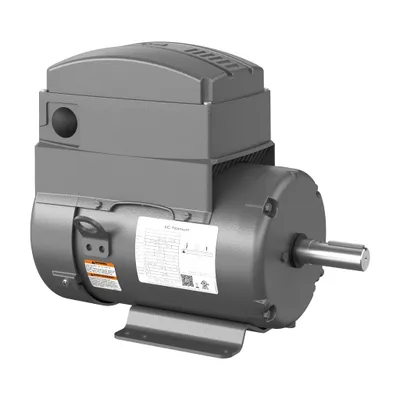

3HP,1800RPM,3PH,60HZ,182T,TEFC,TOP

ABB

ECS101A4H5EF4

5HP,1800RPM,3PH,60HZ,184T,TEFC,AXIA

ABB

ECS100A2H2DC4

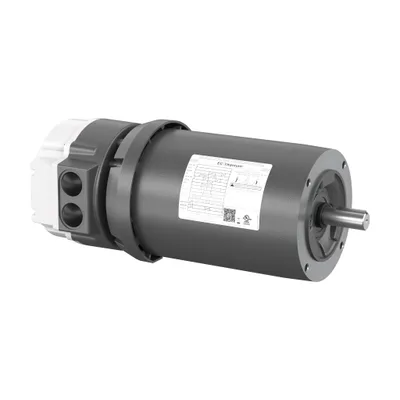

2HP,1800RPM,3PH,60HZ,143TC,3524B,TE

ABB

ECS101M0H5DF4

5HP,1800RPM,3PH,60HZ,145T,3548B,TEF

ABB

ECS101M0H2DC4

2HP,1800RPM,3PH,60HZ,145TC,3524B,TE

ABB

ECS101T4H1DF4

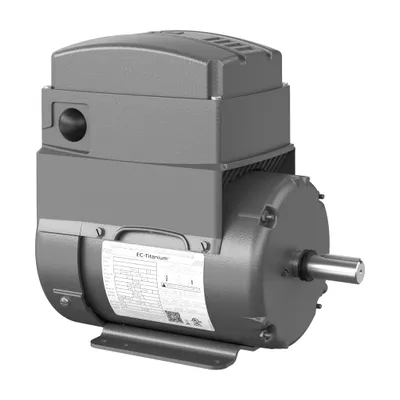

1HP,1800RPM,3PH,60HZ,143T,3516B,TEF

ABB

ECS101T3K2P2EC4

2.2KW,1500RPM,3PH,50HZ,D112C,3624B

ABB

ECS101M0H5EF4

5HP,1800RPM,3PH,60HZ,184T,TEFC,N

ABB

ECS101T3K3EC4

3KW,1500RPM,3PH,50HZ,D112C,3632B,TE

ABB

ECS100A4H5EB4

5HP,1800RPM,3PH,60HZ,184TC,TEFC,AXI

ABB

ECS100A8H2DB4

2HP,1800RPM,3PH,60HZ,145TC,3524B,TE

ABB

ECS101M0K4EF4

4KW,1500RPM,3PH,50HZ,D112S,3632B,TE

ABB

ECS100A8H1DF4

1HP,1800RPM,3PH,60HZ,143T,3516B,TEF

ABB

ECS101M5H2DF4

2HP,1800RPM,3PH,60HZ,145T,3524B,TEF

ABB

ECS100A2H5EF4

5HP,1800RPM,3PH,60HZ,184T,TEFC,AXIA

ABB

ECS100A4H2DC4

2HP,1800RPM,3PH,60HZ,143TC,3524B,TE

Compare EC Titanium™ (General Purpose SP5+)

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Catalog Number	Rated Efficiency	Output Power	Motor Frame Size	Product Net Weight
ECS101M0H7FF4	ECS101M0H7FF4	94 %	7.5 Hp	213T	105 lb
ECS101M0K2P2EF4	ECS101M0K2P2EF4	91.50 %	2.2 kW kW	112	84 lb
ECS101M0K2P2DF4	ECS101M0K2P2DF4	91.10 %	2.2 kW kW	D90S	51 lb
ECS100T2H2DB4	ECS100T2H2DB4	91.3 %	2 Hp	145TC	42 lb
ECS101T3K4ED4	ECS101T3K4ED4	92.40 %	4 kW kW	D112D	97 lb
ECS100A4H3EF4	ECS100A4H3EF4	92.80 %	3 Hp	182T	66 lb
ECS100A4H3DF4	ECS100A4H3DF4	91.0 %	3 Hp	145T	46 lb
ECS100A4H1DB4	ECS100A4H1DB4	89.30 %	1 Hp	145TC	48 lb
ECS101T4H3EF4	ECS101T4H3EF4	92.80 %	3 Hp	182T	88 lb
ECS101A4H5EF4	ECS101A4H5EF4	93.70 %	5 Hp	184T	100 lb
ECS100A2H2DC4	ECS100A2H2DC4	91.3 %	2 Hp	143TC	42 lb
ECS101M0H5DF4	ECS101M0H5DF4	93 %	5 Hp	145T	64 lb
ECS101M0H2DC4	ECS101M0H2DC4	90.4 %	2 Hp	145TC	42 lb
ECS101T4H1DF4	ECS101T4H1DF4	90.3 %	1 Hp	143T	38 lb
ECS101T3K2P2EC4	ECS101T3K2P2EC4	91.40 %	2.2 kW kW	112	84 lb
ECS101M0H5EF4	ECS101M0H5EF4	—	5 Hp	184T	68 lb
ECS101T3K3EC4	ECS101T3K3EC4	92.40 %	3 kW kW	112	97 lb
ECS100A4H5EB4	ECS100A4H5EB4	93.70 %	5 Hp	184TC	98 lb
ECS100A8H2DB4	ECS100A8H2DB4	90.70 %	2 Hp	145TC	42 lb
ECS101M0K4EF4	ECS101M0K4EF4	91.60 %	4 kW kW	112	97 lb
ECS100A8H1DF4	ECS100A8H1DF4	91.0 %	1 Hp	143T	35 lb
ECS101M5H2DF4	ECS101M5H2DF4	—	—	—	44 lb
ECS100A2H5EF4	ECS100A2H5EF4	93.70 %	5 Hp	184T	76 lb
ECS100A4H2DC4	ECS100A4H2DC4	91.9 %	2 Hp	143TC	42 lb

Common to all listed parts

Country or Territory of Origin	United States
Minimum Order Quantity	1 piece
Order Multiple	1 piece
